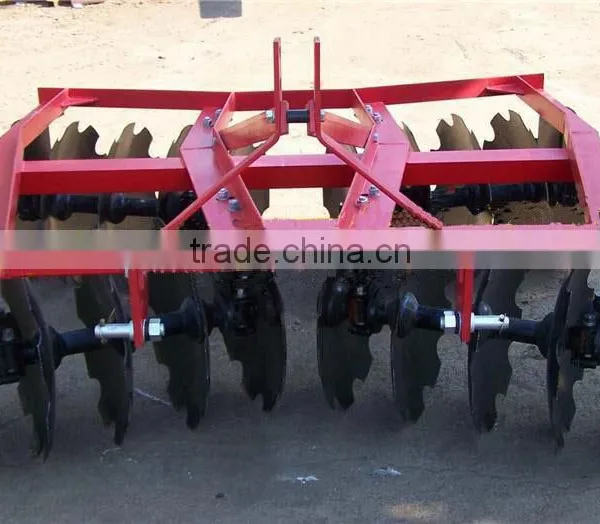

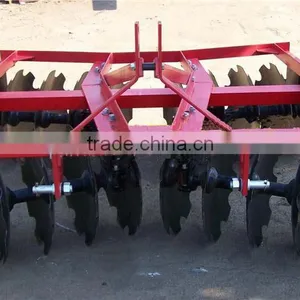

Help Center1BZ Series of Hydraulic Trailed Offset Heavy-duty Disc Harrow
Related Products
Specifications
Specifications1.high quality
2.best service
3.good price
4.OEM and ODM is accepted
Farm Equipment Disc Harrow
1.Product Show
Uses:
LCBB series of heavy duty disc harrow was designed according to the Europe standard,it adopt the features on hydraulic offset modular structure,built-bearing composite design,reasonable structure,bearing seal,long life,durable,easy to transport,easy to adjust,easy maintenance.it also can used to stubble before furrowing the land,get rid of surface compaction,chopped straw to field,leveling soil etc...This kind of harrow can plow the land replace the plough machine on the cultivated land.
model |
unit |
LCBB-2024 |
LCBB-2428 |
LCBB-2834 |
LCBB-4454 |
Working width |
m |
2.4 |
2.8 |
3.4 |
5.4 |
Working depth |
mm |
200 |
200 |
200 |
200 |
Qty of disc |
pc |
20 |
24 |
28 |
44 |
Overall weight |
kg |
1800 |
2100 |
2400 |
4300 |
Matched power |
hp |
80-120 |
120-180 |
180-220 |
200-240 |

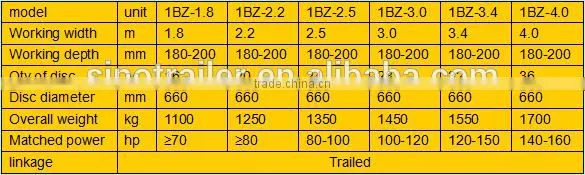

1BZ series of hydraulic trailed offset heavy-duty disc harrow
Uses:
It is mainly applicable to clean the crop residue before tillage,break the hardened and impervious soil surface,crush and spread straw into the field,shatter soil after tillage,and level the land and preserve soil moisture.It can be used as tillage machine instead of plough on the cultivated land.
Features:
The efficient productivity ,resonable utilization of the power,great ability of cutting and shattering the soil,the soil surface is smooth and loosening after harrowing,it is well suitable for heavy clay soil,waste land and weedy field as well.

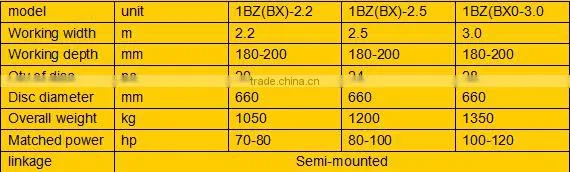

1BZ(BX) series of semi-mounted heavy-duty disc harrow
Uses:
It is suitable for cleaning crop residues before tillage on the virgin land and heavy clay soil and cloods after tillage.On the cultivated land,it can be used as plough for the initial cultivation,however on the uncultivated land,the first harrowind depth can be up to 180mm.
Features:
After harrowing,the land surface is smooth,the soil cloods and crop residues are well crushed.It is easy to be mounted and adjusted,freeto reverse,and convenient for transportation.

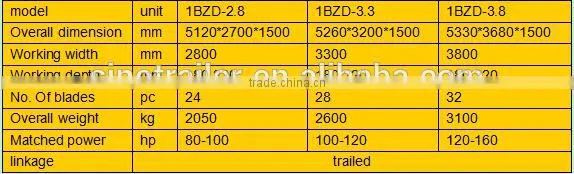

1BZD series of hydraulic opposed heavy-duty disc harrow
Uses:
It is suitable for cleaning stubble before tillage and breaking the soil after tillage in the field of wasteland,shrub bog and heavy soil.
Features:
It is adopted frame type of symmetrical structure and can eliminate the bias traction in the couse of its work on the tractor.

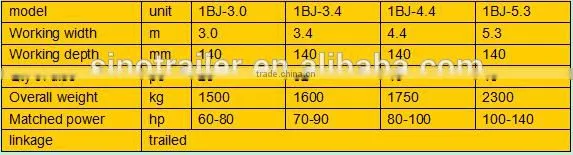

1BJ series of wing-folded hydraulic offset medium disc harrow
Uses:
It is suitable for crushing the heavy clay soil after tillage.
Features:
This machine has features on wide range of working,narrow of transportation,wings of easily folded,compact construction,high productivity operation and maintenance of convenience,etc.

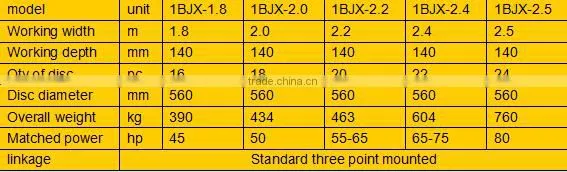

1BJX series of middle-duty disc harrow
Uses:
It is suitable for pulverizing and loosening clodes after plowing and for planning the land before sowing on cultivated land.It can make soil and fertilizer mix up,and clean away the stubble of plants.
Features:
The reasonable structure ,the machine is durable in service,easy to be operated and maintained ,and the land surface is smooth.
