Customized Agricultural Small Rotary Cylinder Dryer
Dear Customer:
Welcome to our website and hope our products will make you satisfied .
We think creatively,design bravely,manufacture precisely and loyalty to
our customers. And we have our own We can produce the products
according to customer requirements .
Give us a negotiate chance will yield you a surprise
Yours
JINGYAO
Product Data
|
Model |
Conventional Dryer |
Three-pass Dryer |
|||
|
650*10 M |
650*10M (Cylinder unloading) |
1*6M |
1.2*10 M |
1.5*12 M |
|
Size(length*width*high)(m) |
22*3*3.2 |
20*3*3.2 |
24*3*3.5 |
30*3.5*4.5 |
33*4*5 |
Material travel distance(m) |
32 |
20 |
38 |
55 |
50-55 |
Main power(kw) |
7.5 |
7.5 |
11 |
18.5-22 |
22-30 |
Roller power(kw) |
2.2 |
2.2 |
2.2 |
5.5 |
7.5 |
Max tube diameter(mm) |
900 |
900 |
1050 |
1200 |
1500 |
Minimum tube diameter(mm) |
300 |
300 |
350 |
450 |
500 |
Capacity(kg/h) |
400-600 |
400-500 |
600-800 |
1300-1500 |
1600-1800 |
Hot wind stove size(mm) |
2000*1000*1300 |
2000*1000*1300 |
2000*1000*1450 |
2450*1100*1450 |
2780*1250*1920 |
Hot wind stove weight(kg) |
1500 |
1500 |
|
|
|
Total weight(kg) |
3900 |
3900 |
4470 |
7440 |
11600 |
Product Pictures Show

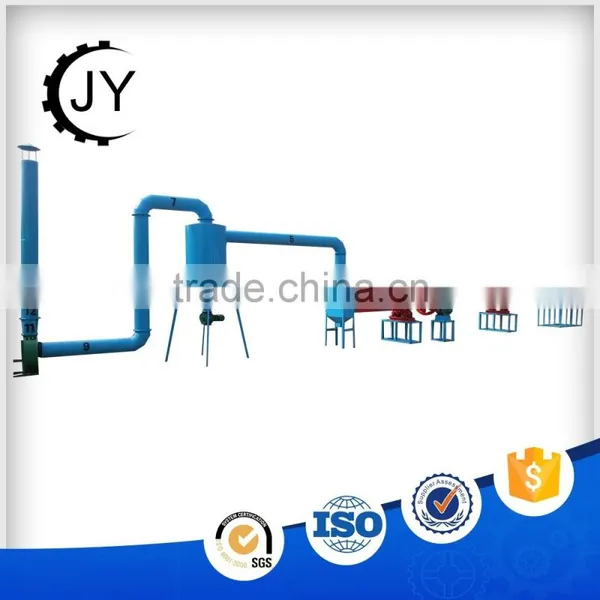

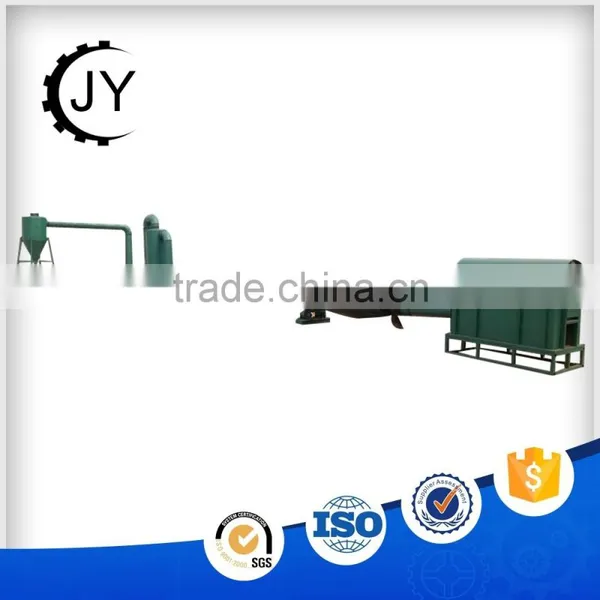

Conventional Dryer
1.The rotary dryer is a type of industrial dryer employed to reduce or minimize the liquid moisture content of the material, which is handling by bringing it into direct contact with a heated gas.
2.The dryer is made up of a large, rotating cylindrical tube, usually supported by concrete columns or steel beams. The dryer slopes slightly so that the discharge end is lower than the material feed end in order to convey the material through the dryer under gravity.
3.Material to be dried enters the dryer, and as the dryer rotates, the material is lifted up by a series of internal fins lining the inner wall of the dryer. When the material gets high enough to roll back off the fins, it falls back down to the bottom of the dryer, passing through the hot gas stream as it falls. This gas stream can either be moving toward the discharge end from the feed end (known as co-current flow), or toward the feed end from the discharge end (known as counter-current flow).
Detail conventional dryer conventional dryer conventional dryer conventional dryer conventional dryer
Flow Diagram
Three-pass Dryer
1.Screw conveyor send the 30-40% moisture saw dust into the first layer of the rotary dryer, to realize the downstream drying, the saw dust realize the heat exchange by spiraled in the first layer, to pre-evaporation of the moisture.
2.When the saw dust moved to the end of the first layer, will drop into second layer reverse move, the saw dust will be move up and drop down by the shoveling plate, and keep repeating during then whole trip in the second layer, the saw dust can fully absorb the heat coming from the inner and outer pipe, also prolong the drying time, the saw dust will get the best drying state.
3.The saw dust which is reached the moisture requirement will be goes through the dryer very fast by with the hot wind, the others saw dust because it’s not reached the requirement, it’s too heavy can be moved by the hot air, will still move in the third layer, and goes into the drying tank, by the hot air working, to be dried, and finish the whole drying process.t
Detail
Features
1.Minimum installation
2.Rugged, durable construction
3.Low maintenance
4.Improved efficiency with dust and heat containment
5.Drive system minimizes vibration
6.Drive components standard, off-the-shelf items
7.Automatic control with adaptable programming
Production Flow Chart
After-sale Service of Our Rotary Dryer
1. Guarantee period is one year , since the date of purchasing.
2. 24- hour technical supports Agricultural Dryer Agricultural Dryer
3. Design product according to the customers requirement. Rotating Cylinder Dryer Rotating Cylinder Dryer
4. We provide available price. Customized Small Rotary Dryer Customized Small Rotary Dryer
Accessory Equipment
