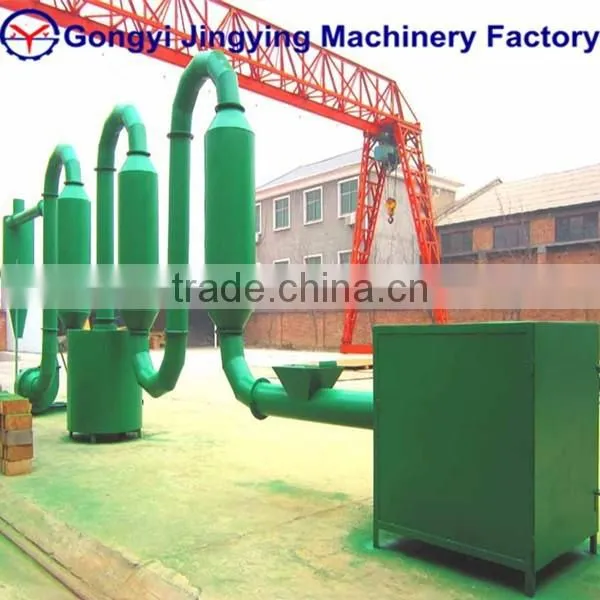

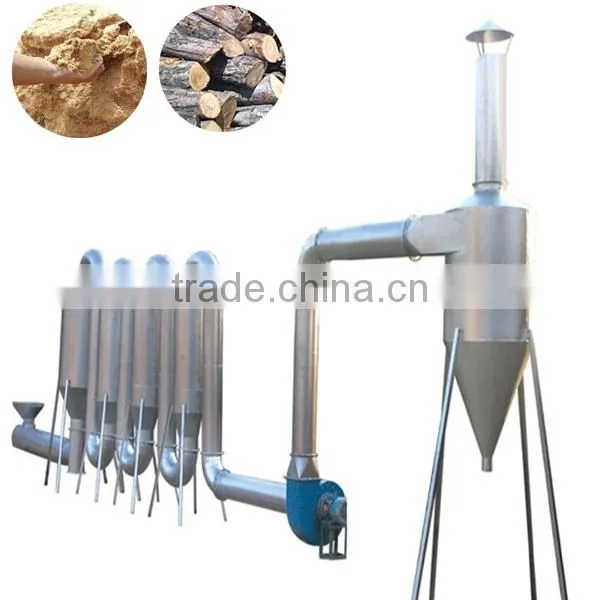

Hot selling wood chips dryer/wood sawdust dryer/maize drying machine
Hot Air Dryer is suitable for dry sawdust, etc small granular materials. It can dry the raw materials quickly and with higher capacity.
Drying process:
Wet material is input into the hopper. The stove generates hot air, hot air mixed with wet sawdust and then
sucked into the pipes by the exhaust blower , flowing and go though the curving pipes and buffer(drying chamber)
of dryer, thus the wet sawdust is dried, and the dried sawdust is discharged from the outlet with air lock.

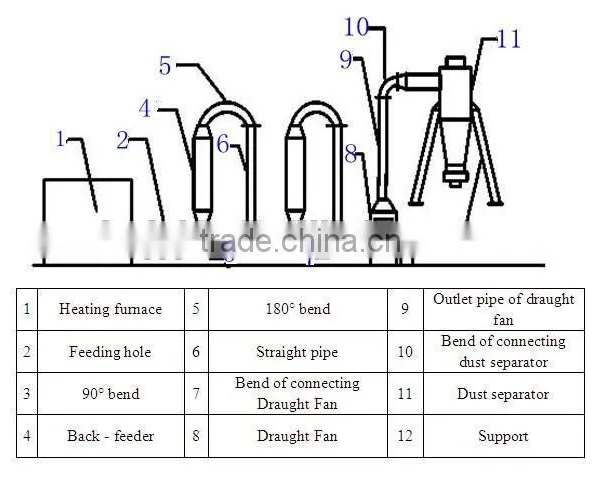

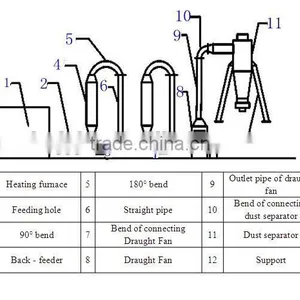

Structure and work principle:
1) Air Flow Pipe Dryer is equipped one fuel boiler,inlet,steel pipe,exhaust blower(fan),cyclone.
2) First, the wet materials are put into the hopper.Then the fuel boiler generates hot air which mixes with wet materials
and then is sucked into the pipes by the exhaust blower (fan) quickly. And then hot air is flowing and going though the curv ing pipes and buffer (drying chamber) of dryer, thus wet materials is finished to dry, and the dried materials are expelled out by the exhaust blower (fan).
3) Air Flow Pipe Dryer reduces the moisture to 8- 12% with the advantages of lower cost consumption and high efficiency.
maize stalks, soybean stalks, broomcorn stalks, cotton stalks, rape stalks, peanut
plants, sunflower stalks, bamboo saw dust, bagasse, wood chips, rice husk, coffee
husk,coir pith, jute sticks, groundnut shells, Bamboo , wood , strawdust, Mustard
stalk and cotton stalks .etc.
1. Drying material
2. Moisture content of feeding material
3. Feeding material size MAX. (mm)
4. Moisture content of final material (mm)
5. Capacity (kg/h)
6. Heat source (firewood, coal, heat gas, electricity)
7. Where the final dry material used for?
Model |
HGJ-I |
HGJ-II |
HGJ-III |
Productivity (kg/hour) |
600-800 |
800-1000 |
1500-2000 |
The diameter of the materials |
< 3mm & < 5mm
|
< 3mm & < 5mm
|
< 3mm & < 5mm
|
The temperature of the heating air |
260°C~360°C
|
260°C~360°C
|
260°C~360°C
|
Motor power |
3-4 KW |
4-5.5 KW |
5.5-7.5 KW |
Weight |
1200 KG |
1600 KG |
2000 KG |
Size of the machine |
10*1.0*2.0 m |
15*1.0*2.0 m |
2.1*1.2*2.5 m |
