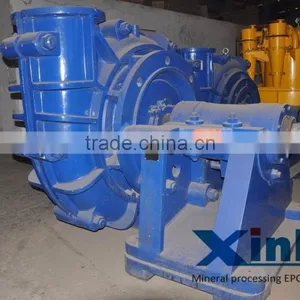

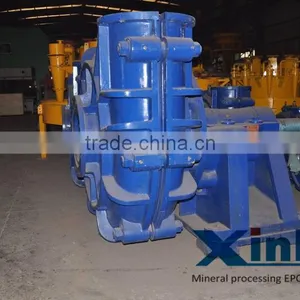

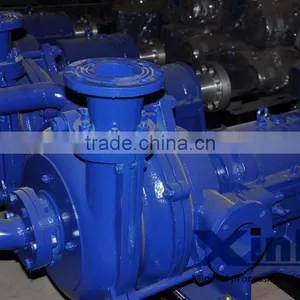

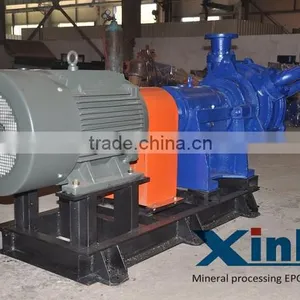

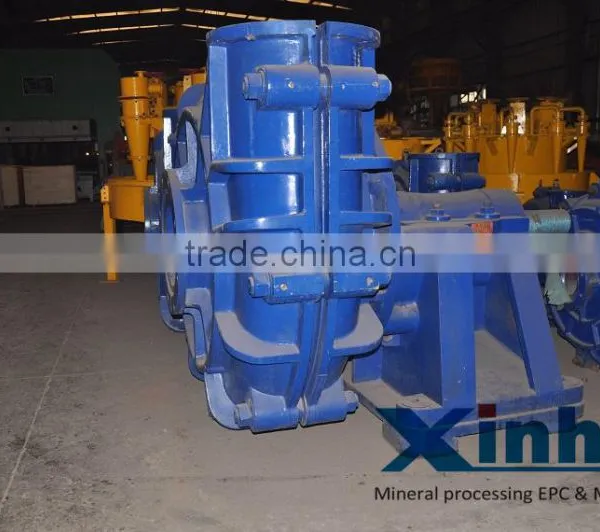

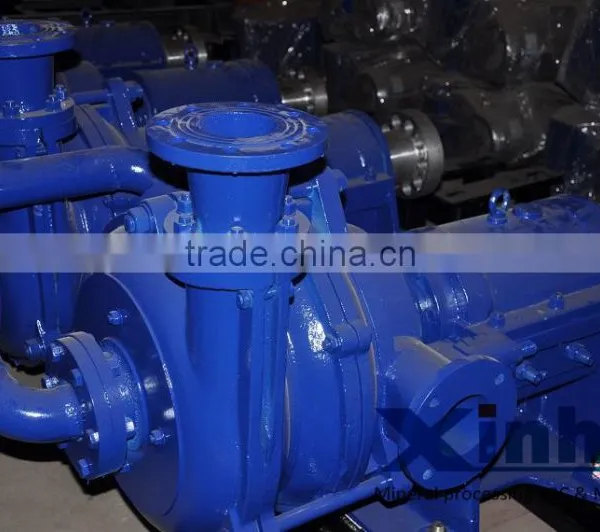

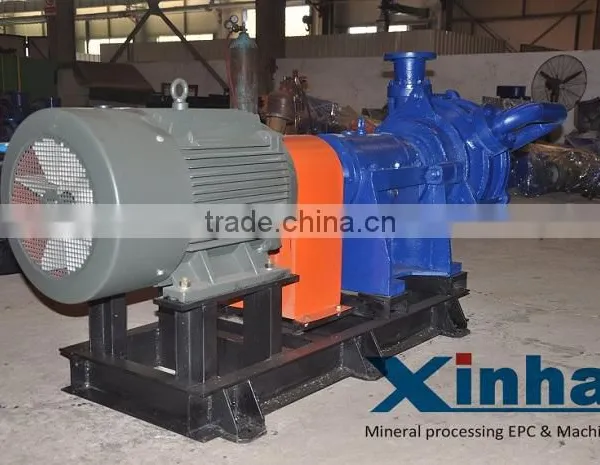

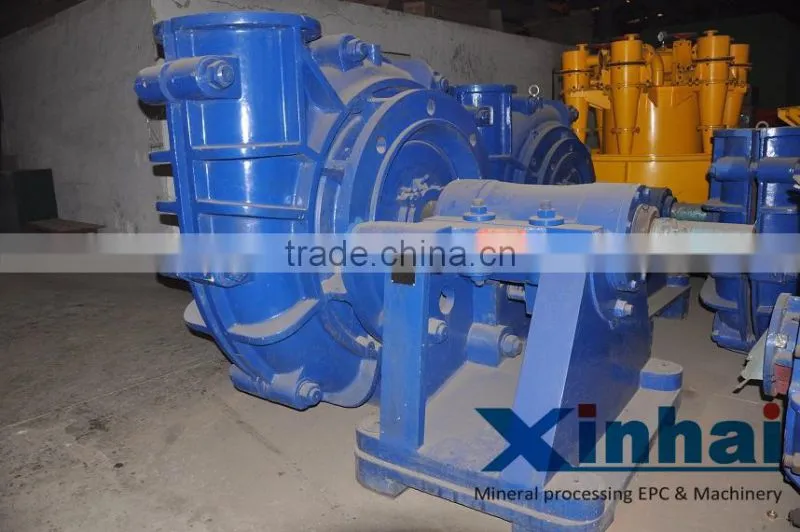

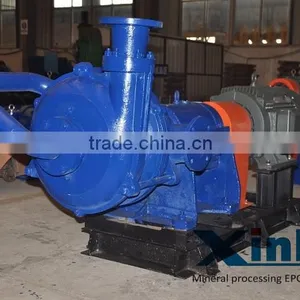

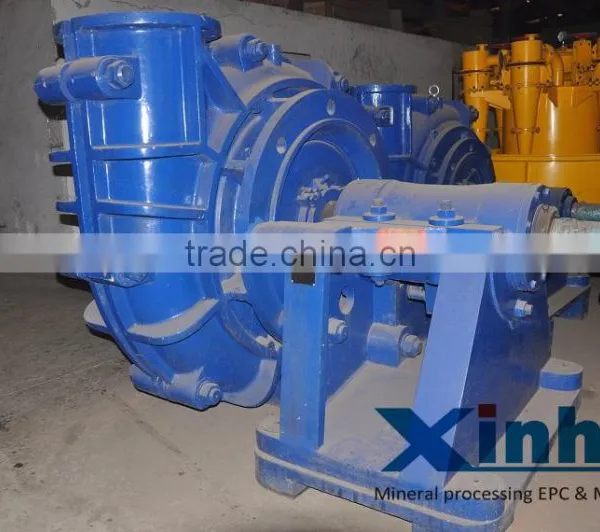

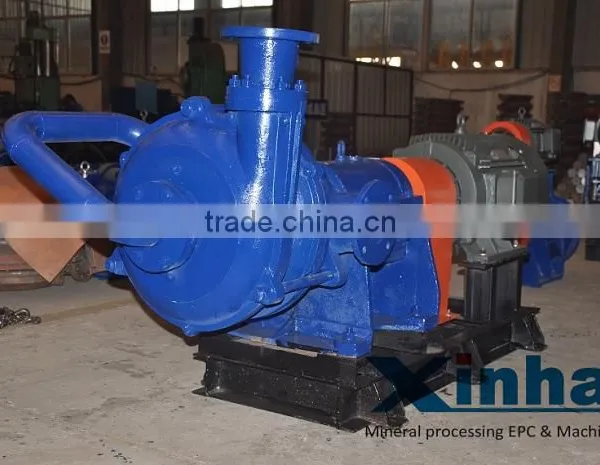

Heavy Duty High Head Steel Mining Slurry Pump
alloy slurry pump — Product advantages
1.Corrosion resistant
2.Low power and high efficiency
3. Low noise and vibration
4.High quality and low maintenance
alloy slurry pump — Product feature
XPC pump is divided into single stage, single suction, cantilever, horizontal centrifugal types. XPX pump adopts the solid-liquid two-phase flow theory which represents the world advanced technological level. According to the minimum loss principle, the geometries of flow passage components correspond to the flowing state of medium, which diminishes the hydraulic loss caused by eddy currents and clashes. Consequently, the flow passage component abrasion, the movement noise and vibration are reduced, while efficiency is improved. The flow passage components are made of highly hard alloy cast iron which is highly corrosion resistant, abrasion resistant and impact resistant. The dynamic depressurization helps avert ore pulps from leaking.
alloy slurry pump — Product application
XPC alloy slurry pump finds tremendous popularity in mining, metallurgy, electric power, coal, chemical and building material industries. It is mainly used to convey corrosive and abrasive pulps containing solid particles. The maximum concentration of solid-liquid mixture is mortar 45% and ore pulp 60%. Our company provides the pump in various specifications-----direct connecting, belt, fluid coupler, frequency control and other transmission modes are available; serial or parallel connection is also provided.
alloy slurry pump — Product principle
The course of using centrifugal force to increase pressure on conveying medium is also the course of transmitting and transforming energy. With impellers, the pump transforms and transmits mechanical energy produced by motor into pressure energy and kinetic energy for fluid.
The pump consists of shell and impellers which are situated on the main shaft and constitute an integral part with prime mover. Prime mover drives impellers to rotate and then impellers drives fluid to rotate, which increase the kinetic energy and potential energy. The pressurized water process and the water absorption process simultaneously take place. The pressurized water process occurs and consists of three stages: liquid is moved from impeller center to rim by the inertia force; liquid moves off impellers and enters into discharge chamber; liquid is discharged via discharging pipes. When liquid moves from impeller center towards rim, a low pressure area around impeller center is formed. When the vacuum around impeller center is high enough, liquid is absorbed in absorption chamber and sent towards impellers by the pressure of absorption end (the pressure is usually the atmospheric pressure). With the continuous operation of impellers, liquid is continuously absorbed and discharged.
Group Introduction
Xinhai Group founded in 1993 has grown into the industry group involving mineral processing, wearable rubber, mining investment and LFC Machinery after twenty years development. We have been always committed to providing customers with professional, perfect, efficient equipment and solutions. The whole solution we provide for you with the core of reliable & efficient mineral processing schemes and environmental-protection & energy-saving tailings dry stacking, makes us stand up in every EPC bid.
