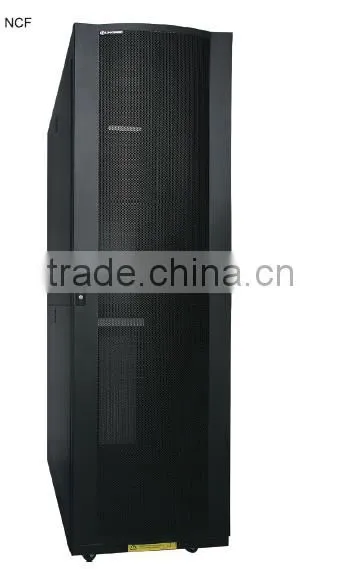

42U network cabinet for Data Center Compatible for HP DELL Servers with dual meash door
Comply with ANSI/EIARS-310-D, DIN41491; PART1, IEC297-2, DIN41494; PART7, GB/T3047.2-92 standard. Compatible with metric ETSI and 19 inch international standard.
APPLICATION
Widely applied in finance, securities and data center; adopted by the professional servers’ network providers as IBM, SUN, HP, COMPAQ, DELL etc.
MATERIALS
Cold-rolled steel sheet. Thickness for frame 2.0mm, mounting rail 2.0mm, side panel 1.5mm,fixed shelf 1.5mm.
Technical specification
Surface finish: degreasing, pickling, phosphoric, powder coating . The thickness of powder coating is 80μm-100μm .

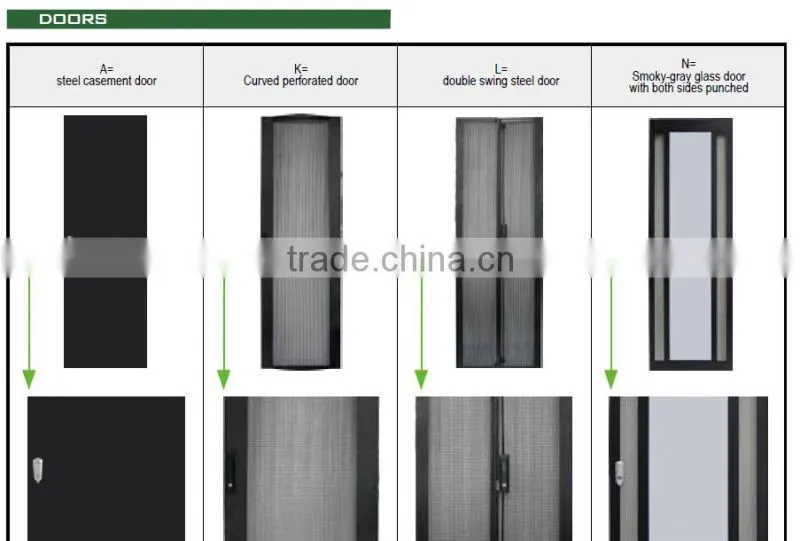

Curved perforated front door and double-section rear door enable equipment protection, reliable operation with entilation rate above 80% .
Double-section side panels, each panel can be easily assembled separately.
Top and bottom wiring channel can be closed and adjustable.

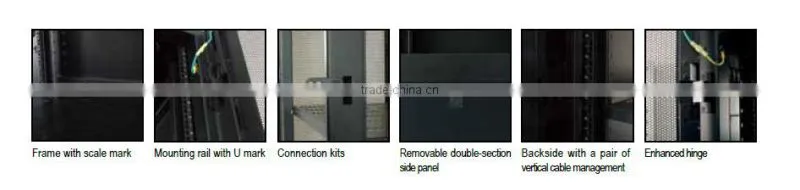

Backside with a pair of vertical cable management .
Mounting rail with U mark.
Efficient and solid cabinet connection.
With earthing kits.
Advanced lock .
Optional plinth to meet under-base wiring, ventilation and rat-proof .
Adjustable feet and heavy duty castors are available at the same time , static loading: 1000KG .
Full range of optional accessories.
| Part No | Capacity/u | Width/mm | Depth/mm | Height/mm | CMwidth/m | CM Depth/m | CM Heigh/m | Volume/CBM |
| NCF37-66-*# | 37U | 600 | 700 | 1800 | 0.65 | 0.75 | 1.8 | 0.7605 |
| NCF37-68-*# | 37U | 600 | 900 | 1800 | 0.65 | 0.95 | 1.8 | 0.9945 |
| NCF37-610-*# | 37U | 600 | 1100 | 1800 | 0.65 | 1.15 | 1.8 | 1.2285 |
| NCF37-88-*# | 37U | 800 | 900 | 1800 | 0.85 | 0.95 | 1.8 | 1.3005 |
| NCF37-810-*# | 37U | 800 | 1100 | 1800 | 0.65 | 1.15 | 1.8 | 1.6065 |
| NCF42-66-*# | 42U | 600 | 700 | 2000 | 0.65 | 0.75 | 2 | 0.845 |
| NCF42-68-*# | 42U | 600 | 900 | 2000 | 0.65 | 0.95 | 2 | 1.105 |
| NCF42-610-*# | 42U | 600 | 1100 | 2000 | 0.65 | 1.15 | 2 | 1.365 |
| NCF42-88-*# | 42U | 800 | 900 | 2000 | 0.85 | 0.95 | 2 | 1.445 |
| NCF42-810-*# | 42U | 800 | 1100 | 2000 | 0.85 | 1.15 | 2 | 1.785 |
| NCF47-66-*# | 47U | 600 | 700 | 2200 | 0.65 | 0.75 | 2.2 | 0.9295 |
| NCF47-68-*# | 47U | 600 | 900 | 2200 | 0.65 | 0.95 | 2.2 | 1.2155 |
| NCF47-610-*# | 47U | 600 | 1100 | 2200 | 0.65 | 1.15 | 2.2 | 1.5015 |
| NCF47-88-*# | 47U | 800 | 900 | 2200 | 0.85 | 0.95 | 2.2 | 1.5895 |
| NCF47-810-*# | 47U | 800 | 1100 | 2200 | 0.85 | 1.15 | 2.2 | 1. |
