Specifications
Smallest pellet mill:1.CE certificate
2. Model No.: KL120 and KL150
3. Die size from 2.5mm to 10mm
We also have Ali Express store , if you want to buy for family use, you can click the below link to order from Ali express store, this is the best way for you .
Small pellet mill description:
1. Small pellet mill can make all kinds of bio-mass material to be solid pellets which is for burning fuel or animal feed.
2. You can use all of the sawdust as raw materials: Paddy straw, sunflower stalk, forestry wastes, wood chips, chemical and many other wastes or solid power material.
3. KL120 and KL150 are the smaller types.
4. All of our pellet mills have passed CE certificate, which all parts can meet EU standard.
Special instruction:

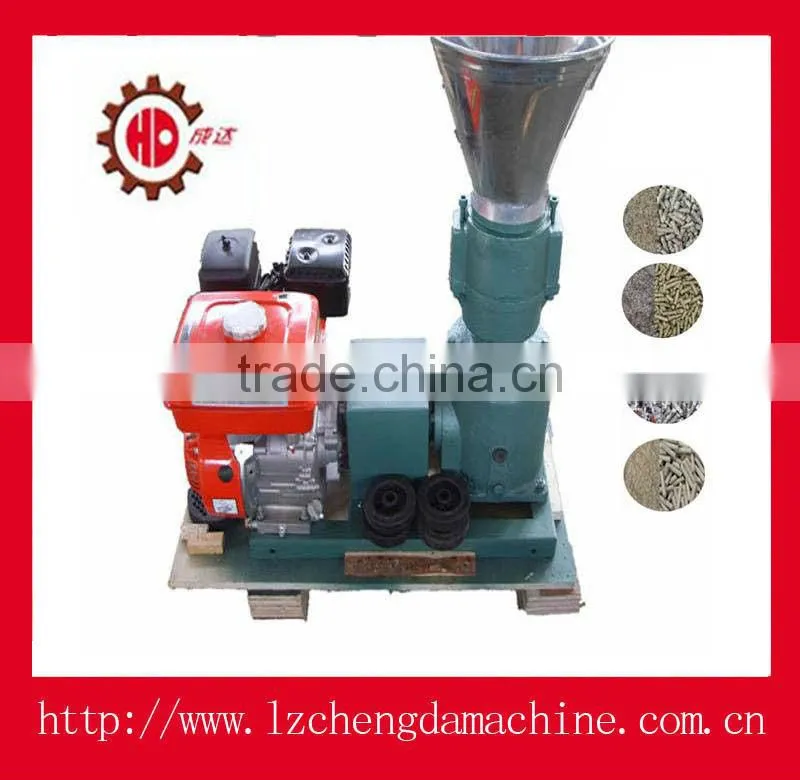

1. Version A pellet mill are driven by diesel engine or gasoline engine.
2. Version B pellet mill are dirven by E-motor, without extra cabinet and cover on the motor.
Technical parameters for KL120 and KL150:
| Model No. | Power | Output(kg/hour) | Packing size(cm) | NW/GW(kg) | Qty/20'FCL | Remark |
| KL120A | 7.5hp gasoline engine | 90~120 | 76*43*71 | 80/100 | 190 | gasoline engine |
| KL120A | 8hp diesel engine | 100~130 | 87*44*73 | 120/140 | 190 | diesel engine |
| KL120B | 2.2KW/220V | 75~100 | 75*32*61 | 80/100 | 216 | CE motor |

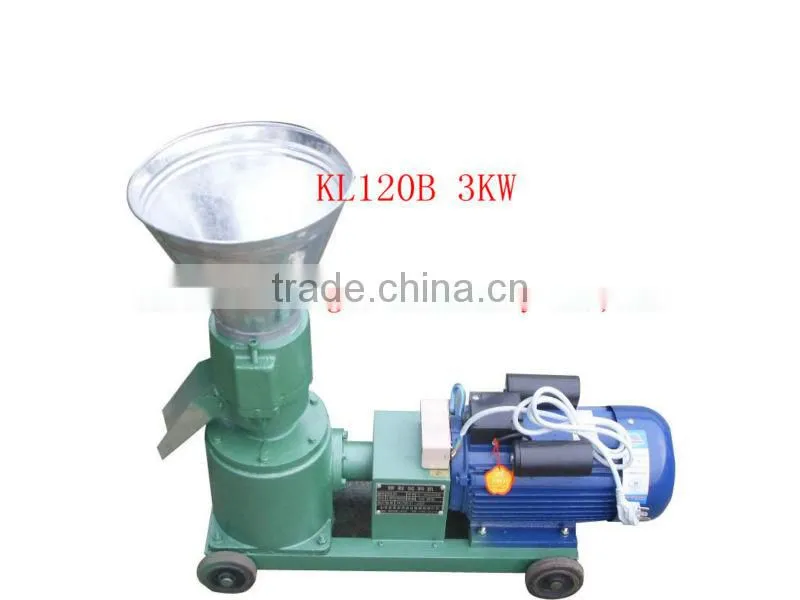

| KL120B | 3KW/380V | 75~100 | 75*32*61 | 80/100 | 216 | CE motor |
| KL150A | 7.5hp gasoline engine | 110~210 | 76*43*71 | 95/115 | 250 | gasoline engine |
| KL150A | 8hp diesel engine | 120~220 | 87*46*73 | 120/140 | 250 | diesel engine |

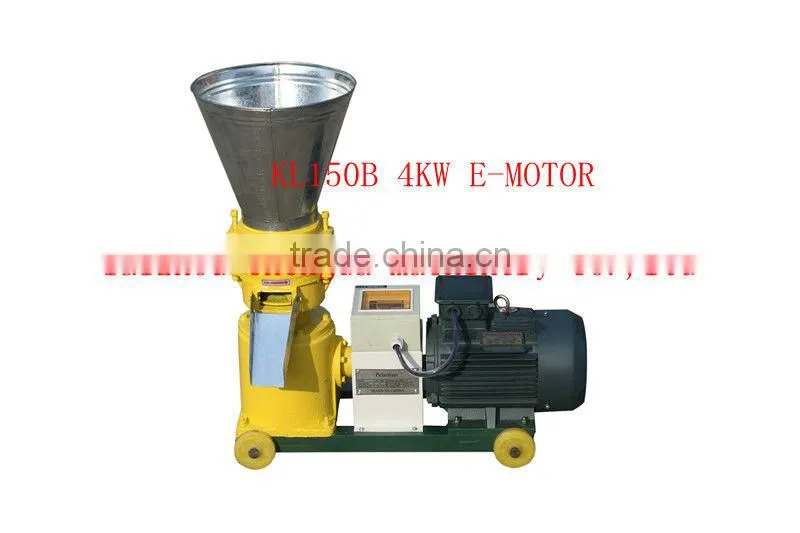

| KL150B | 4KW/380V | 150~200 | 75*35*65 | 95/115 | 126 | CE motor |
we also have series ring die wood pellet machine for your choose. the wood pellet machine with automatic lubricating system.
the ring die wood pellet machine technical data as below for your reference, if you need more informaiton , you can contact with me to TEL:008615264530427, I will answer you within 12 hours.
| item number(model) | output(kg/h) | power(kw) | specifications (mm) | weight(kg) | size (mm) |
| HKL400-37 | 300-400 | 37 | Φ 4-12 mm | 6040 | 2630*100*2400 |
| HKL400-45 | 400-600 | 45 | Φ 4-12 mm | 6100 | 2600*1300*2300 |
| HKL450-55 | 600-800 | 55 | Φ 4-12 mm | 7000 | 2900*1300*2400 |
| HKL450-75 | 800-1200 | 75 | Φ 4-12 mm | 14500 | 3300*1400*3100 |
| HKL450-90 | 1200-1500 | 90 | Φ 4-12 mm | 18000 | 3800*1680*3400 |
you also can check the below link to check the details of the riing die wood pellet machine specification.
