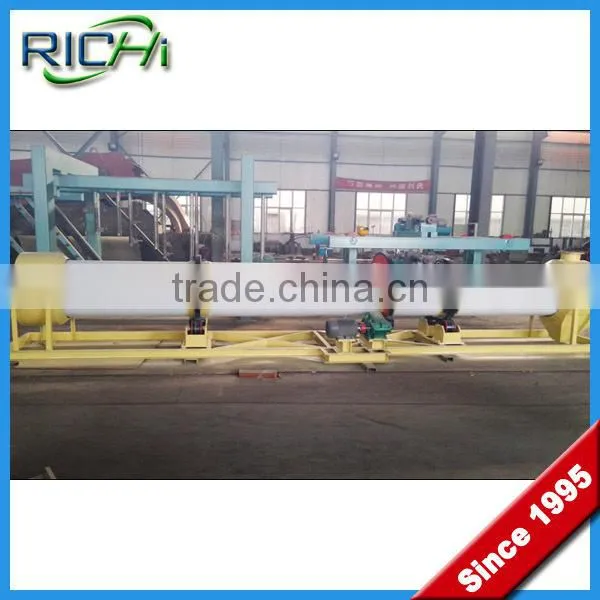

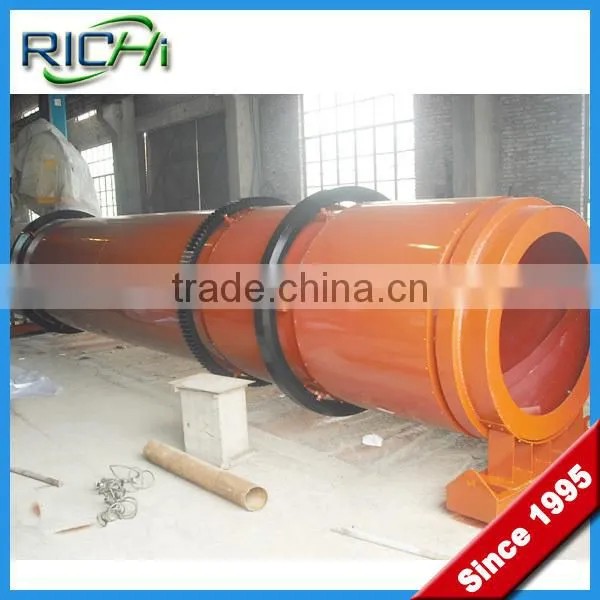

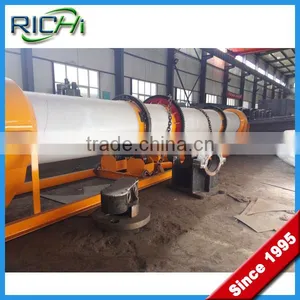

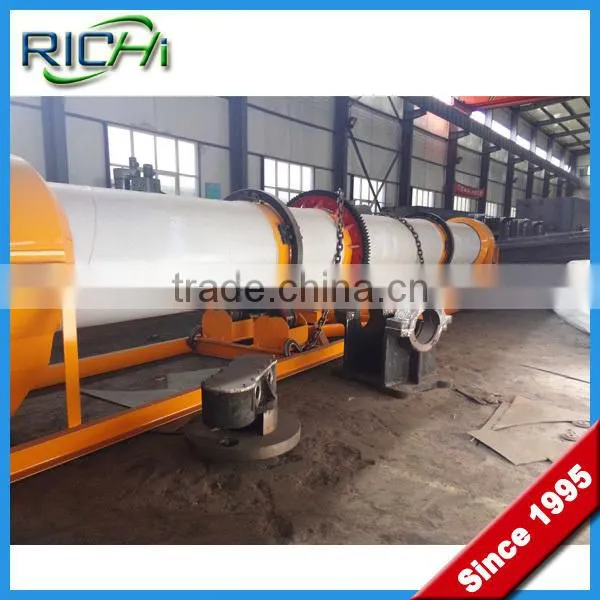

High Efficiency Airflow Wood Sawdust Dryer Machine
Drying machine for wood sawdust dryer machine
1.Drying machine is a revolving round drum with a small slope.atrial from the high side into the pipe and heat-carrying agent into is from the low end,countercurrent contact with material,also material can flow into the drum pipe with heat-carrying agent.
2.Along with rotate of the round drum materials run to the bottom of the end by gravity .when.the wet material moving forward in the pipe,can get the heat from the heatcarrying agent directly or indirectly to make the material dry,then discharge the material by the belt conveyor or screw conveyor.
Technical Parameters of wood sawdust dryer machine
Model |
Diameter (m) |
Length (m) |
Power (kw) |
Volume capacity (m3) |
Evaporation Capacity (kg/m3) |
Φ0.8*12 |
0.8 |
12 |
5.5 |
6.03 |
30-80 |
Φ1.0*12 |
1 |
12 |
7.5 |
9.24 |
30-80 |
Φ1.2*12 |
1.2 |
12 |
7.5 |
13.57 |
30-80 |
Φ1.4*12 |
1.4 |
12 |
7.5 |
18.64 |
30-80 |
Φ1.5*12 |
1.5 |
12 |
7.5 |
21.2 |
30-80 |
Φ1.6*12 |
1.6 |
12 |
7.5 |
24.16 |
30-80 |
Φ1.6*24 |
1.6 |
24 |
15 |
48.23 |
30-80 |
Φ1.8*12 |
1.8 |
12 |
11 |
30.52 |
30-80 |
Φ1.8*24 |
1.8 |
24 |
15 |
61.04 |
30-80 |
Φ2.0*12 |
2 |
12 |
11 |
37.68 |
30-80 |
Φ2.0*24 |
2 |
24 |
15 |
75.36 |
30-80 |
Φ2.2*12 |
2.2 |
12 |
18.5 |
45.6 |
30-80 |
Φ2.2*24 |
2.2 |
24 |
22 |
91.19 |
30-80 |
Φ2.5*12 |
2.5 |
12 |
18.5 |
58.88 |
30-80 |
Φ2.5*24 |
2.5 |
24 |
22 |
117.75 |
30-80 |
Φ2.8*12 |
2.8 |
12 |
30 |
73.85 |
30-80 |
Φ2.8*24 |
2.8 |
24 |
37 |
147.71 |
30-80 |

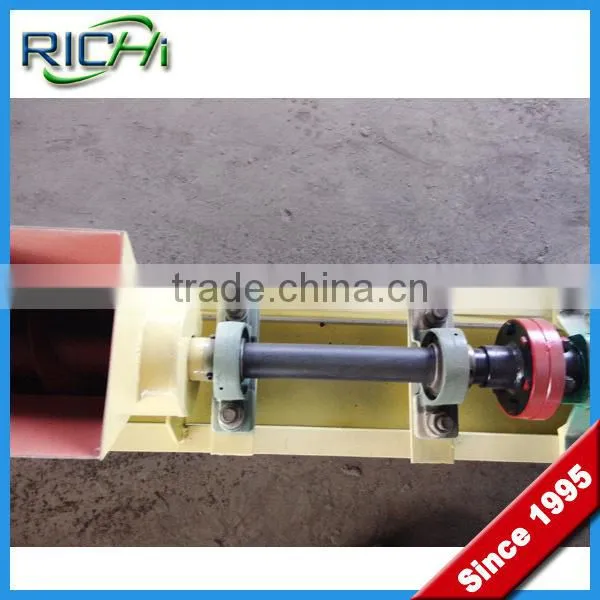

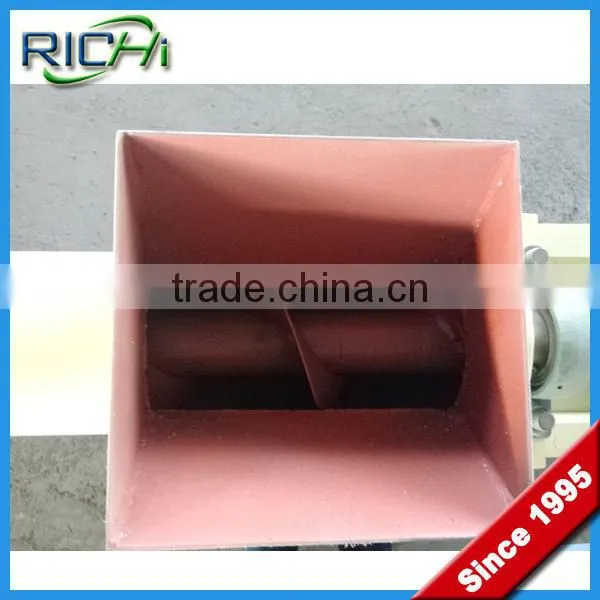

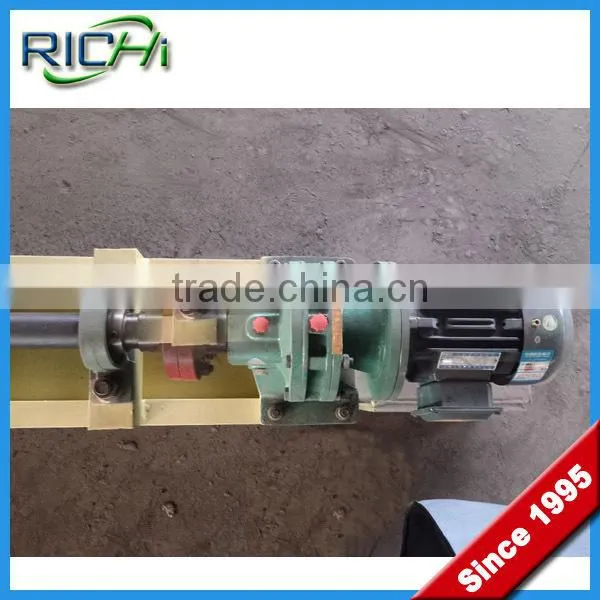

Detailed Parts of wood sawdust dryer machine
A: Pre-sale services:
Act as a good adviser and assistant of clients; enable them to get rich and generous returns on their investments.
(1) Select equipment model;
(2) Design and manufacture products according to clients' special requirement;
(3) Train technical personnel for clients;
(4) Arrange for visiting our factory, assist them to handle relative procedure, such as visa.
B: Services during the sale:
Respect clients; devote ourselves to improving the total value of clients.
(1)Pre-check and accept products ahead of delivery;
(2)help clients to draft solving plans.
C: After-sale services
Provide considerate services to minimize clients' worries.
(1) Assist clients to prepare for the first construction scheme;
(2) Install and debug the equipment;
(3) Train the first-line operators on site;
(4) Examine the equipment regularly;
(5)Take initiative to eliminate the troubles rapidly at site;
(6) Distribute the guarantee fittings door-to-door;
