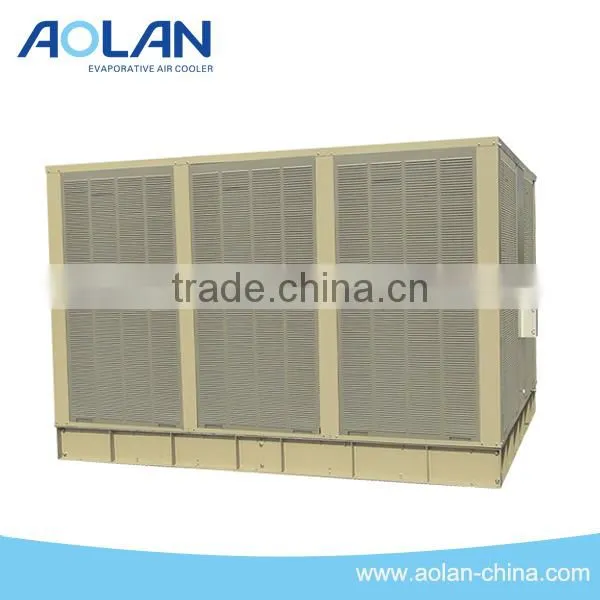

Aolan evap cooler for air cooling
AZL60-LS32D
1.Using glass fiber reinforced plastic tank,stainless steel frame and galvanized sheet
2.The casing is made of galvanized sheet which is UV-proof,anti-aging,and resistant to deformation
3.Using centrifugal fan with features of high efficiency,low noise,long drive distance and larger application area
4.Using 3-phase,2-speed or 3-phase motor with features of good heat dissipation,water-proof,low noise and low vibration
5.Using special water distributor which makes the current more smooth
6.Using highly efficient cooling pads with large evaporation capacity,good cooling efficiency and easy cleaning.
Specification
Fan Capacity (m3/h) 60000
Full Pressure (Pa) 520/242
Voltage/Frequency (V/Hz) 380/50
Rated Currency (A) 37/15.7
Fan Type Centrifugal
Fan Speeds 3-phase,2-speed
Noise (dB) ≤85
Fan Diameter Φ810*956
Water Capacity (L) ≤100
Application Area (m2) 500
Drive Distance (m) 70
Auto Cleaning /
Water Lack Protection √
Dimension (mm) 2085*2105*1930
Net Weight (kg) 900
Operation Weight (kg) 1000
Export Carton, 5 units in the 40HQ container.
