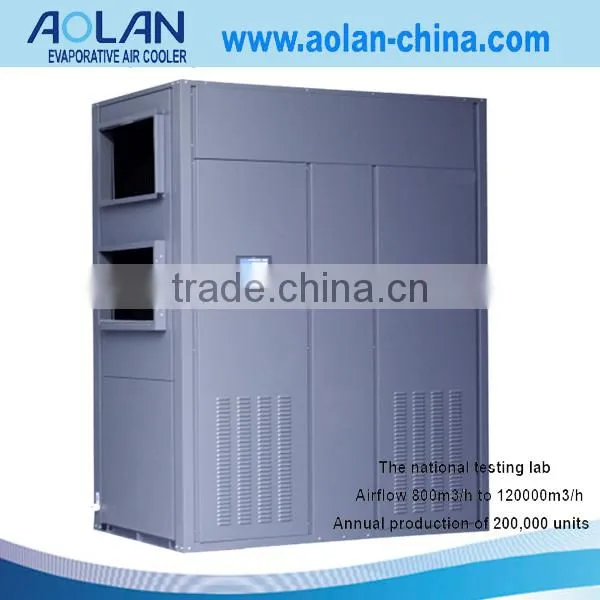

Indirect Evaporative Air Cooler With Dehumidifier

Name: Indirect Evaporative Air Cooler With Dehumidifier
Brand: Aolan
SKU: 138944891

Indirect Evaporative Air Cooler With Dehumidifier thumbnail-1

Indirect Evaporative Air Cooler With Dehumidifier thumbnail-2

Indirect Evaporative Air Cooler With Dehumidifier photo-1

Indirect Evaporative Air Cooler With Dehumidifier photo-2

US$ 1 - 100,000 MOQ: 1 Unit

Key Specifications

Get Latest Price

Condition:

New

Type:

Other, dehumidifier

Place of Origin:

Fujian, China

Contact Supplier Request Quote Chat Now

Aolan (Fujian) Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Fuzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Other, dehumidifier

Place of Origin Fujian, China

Brand Name Aolan

Model Number 10

Operating Voltage Other, 380V

Mounting Floor Standing

Certification Other

After-sales Service Provided No overseas service provided

Product Description

Brine solution dehumidifier an industrial dehumidifier with air condtion function

Introduction

This brine solution dehumidifier suits for a whole years climates,summer time or winter time. And it's especially suitable for air conditioning systems with temperature and humidity independent controlled, Enclosed room needs deep dehumidifying where demands a constant temperature and humidity, such as ICU(Intensive care unit), R&D buildings, laboratory, exhibition centers, hotels, apartments, machine room,factories and military.

Application

Suitable for indoor ventilation, and rate≥70%

Application environment temperature -5℃~40℃

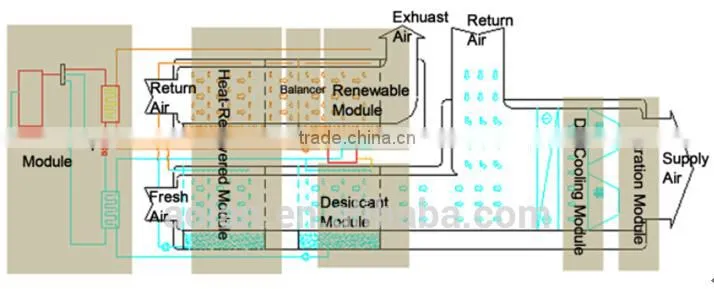

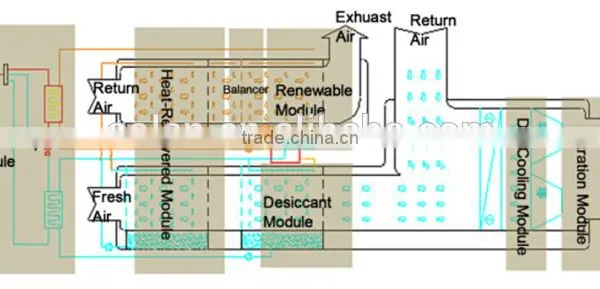

Working Principle

Specification

Model(TAH-xx)			10	12	15	20	25	30	40
Power Source			3PH-380V-50Hz
Supply Air Rate		m³/h	10000	12000	15000	20000	25000	30000	40000
Return Air Rate		m³/h	7000	8400	10500	14000	17500	21000	28000
Fresh Air Rate		m³/h	3000	3600	4500	6000	7500	9000	12000
Cooling Capacity		kW	87	104	130	174	216	260	347
Dehumidification		kg/h	64	77	96	128	160	192	256
Heating		kW	92	111	139	185	231	277	370
Moisture		kg/h	24	29	37	49	61	73	98
Power		kW	18.7	21.1	26.4	34.0	41.6	52.8	70.4
Air supply excess pressure		Pa	350	370	350	350	350	350	350
Noise		dB(A)	65	66	66	68	70	73	75
Weight		kg	2660	2956	3823	4521	5263	6283	7355
Fresh Air Section
Fresh Air Rate		m³/h	3000	3600	4500	6000	7500	9000	12000
Supply Air Rate		m³/h	3000	3600	4500	6000	7500	9000	12000
Cooling Capacity		kW	63	75	94	125	156	187	250
Dehumidification		kg/h	62	74	93	124	155	186	248
Heating		kW	41	49	61	81	101	122	162
Moisture		kg/h	24	29	37	49	61	73	98
Power		kW	13.8	15.8	20.1	25.8	31.3	40.5	53.9
Compressor Type			Fully Closed Scroll Compressor
Throttle Type			Thermal Expansion Valve
Refrigerant			R407C
Exhaust Fan Type			Outer Rotor Centrifugal Fan
Filter Grade			Primary(G4)
Air exhaust excess pressure		Pa	170	180	170	180	190	170	430
Weight		kg	2050	2200	2650	3080	3580	4350	5140
Mixed Air Section
Filter Grade			Primary(G4)
Weight		kg	100	140	175	195	210	265	320
Cold And hot Coil Section
Cooling Capacity	kW		24.2	29.1	36.4	48.5	60.6	72.7	96.9
Heating Capacity	kW		51.9	62.2	77.8	103.7	129.7	155.6	207.5
water inlet/outlet temp.	℃		Cold Water:14/19;Hot Water:50/45
cold-water flow	m³/h		4.2	5.0	6.2	8.3	10.4	12.5	16.6
hot-water flow	m³/h		8.9	10.7	13.3	17.8	22.2	26.7	35.6
Connecting Pipe			DN40	DN40	DN50	DN50	DN65	DN65	DN80
Water Resistance		kPa	<60
Weight		kg	170	230	320	400	510	610	740
Supply Air Section
Fan Type			Belt-driven Double Inlet Centrifugal Fan
Power		kW	5.2	5.6	6.6	8.7	10.8	13.0	17.3
Weight		kg	340	386	678	846	963	1058	1155

Notes:1.Nominal cooling and dehumidification working conditions: fresh air dry bulb temperature 36℃, relative humidity 65%,; returned air dry bulb temperature 26℃, relative humidity 60%; supply air dry bulb temperature 17℃, wet bulb temperature 16.0℃.

2. Nominal heating and humidification working conditions: fresh air dry bulb temperature -5℃, relative humidity 50%,;returned air dry bulb temperature 20℃, relative humidity 50%; supply air dry bulb temperature 35℃, wet bulb temperature 19.0℃.

3. The above section and setting are only for reference. Pls choose and adjust based on actual project requirement, or provided by customer.

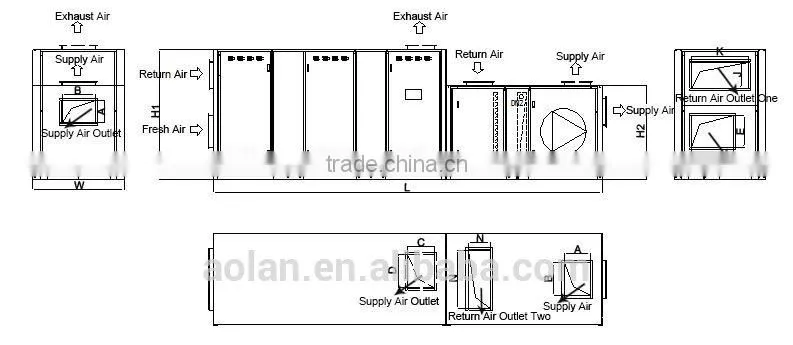

Dimension Drawing

Model(TAH-xx)				10	12	15	20	25	30	40
Sectional size W*H (mm)
W			mm	1500	1500	1850	1850	2300	2300	2300
H1			mm	2300	2300	2400	2400	2500	2800	3000
H2			mm	1300	1500	1500	1800	1800	2050	2500
L=L1+L2+L3+L4			mm	5770	5770	6350	6450	6850	7180	7280
Function section size (mm)
Fresh Air Dehumidification Section	Section Length	L1	mm	3300	3300	3500	3500	3700	3700	3800
	Return Air Outlet One	J	mm	350	400	400	450	450	550	650
	Return Air Outlet One	K	mm	1100	1100	1500	1500	1900	1900	1900
	Fresh Air Outlet	E	mm	500	600	600	680	650	800	950
	Fresh Air Outlet	F	mm	700	700	900	900	1300	1300	1300
	Exhaust Air Outlet	C	mm	200	200	300	300	300	300	400
	Exhaust Air Outlet	D	mm	310	350	390	450	450	450	627
Mixing section	Section Length	L2	mm	420	420	500	600	600	730	730
	Return Air Outlet Two	M	mm	320	320	400	500	500	630	630
	Return Air Outlet Two	N	mm	1000	1250	1250	1600	1600	2000	2000
Cooling Coiler Section	Section Length	L3	mm	750
	Cold and hot water pipe Outlet	DN1	mm	DN40	DN40	DN50	DN50	DN65	DN65	DN80
	Cold and hot water pipe Outlet	DN2	mm	DN40	DN40	DN50	DN50	DN65	DN65	DN80
Supply Air Section	Section Length	L4	mm	1300	1300	1600	1600	1800	2000	2000
	Supply Air Outlet	A	mm	485	550	605	675	740	785	950
	Supply Air Outlet	B	mm	412	466	532	580	650	700	780
