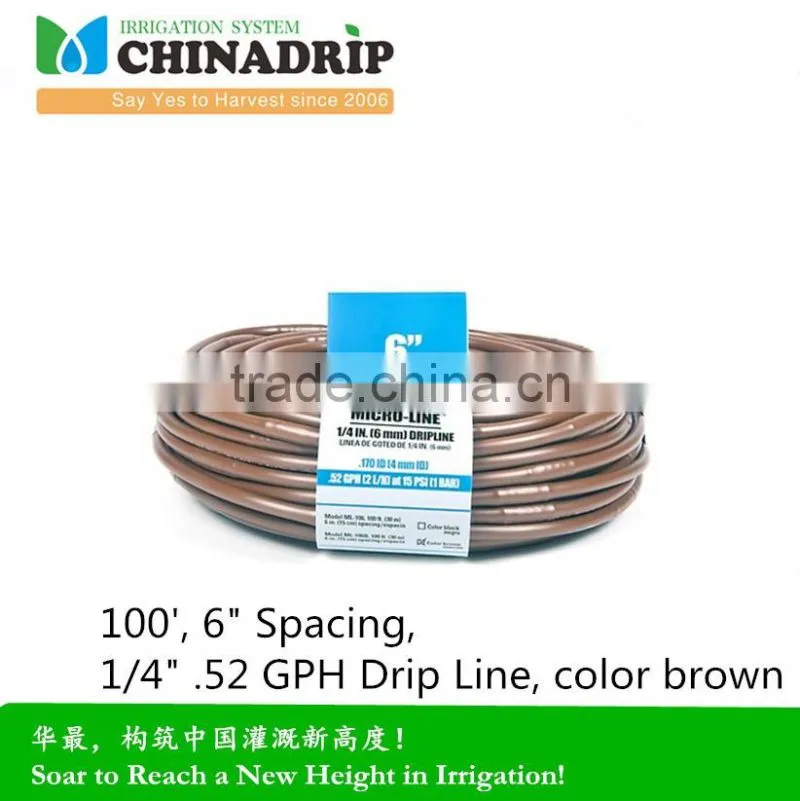

Help CenterDrip Irrigation 6" Spacing 1/4" .52 GPH Drip Line Brown Irrigation Supplies
Related Products
-
Drip Irrigation 1000', 1/8" Vinyl Micro Tubing With .118 ID x .187 OD BlackUS$ 0.02 - 0.02MOQ: 500 Meters -
Drip Irrigation 1/4 Inch Vinyl Micro Tubing With .245 ODUS$ 0.02 - 0.02MOQ: 2000 Meters
-
Drip Irrigation 1000', 1/8" Vinyl Micro Tubing With .118 ID x .187 ODUS$ 0.8583 - 0.8583MOQ: 1 Carton
-
Farms Drip Irrigation System Irrigation ProductsUS$ 0.129 - 0.129MOQ: 1 Bag
-
Drip Irrigation 3/4" FNPT x 1/2" (16 Mm) Barbed Ball ValveUS$ 0.1898 - 0.1898MOQ: 10 Pieces
Contact Sean for more free samples and services.
Thank you.
SPECIFICATION
- Bending radius: 1' minimum
- Color: Brown
- Filter requirement: 155 Mesh
- Flow rate: .52 GPH @ 15 PSI
- Materials: Dow FINGERPRINT™ DFDA-7510 NT linear low-density polyethylene resin
- Maximum lateral length: 18' to 49'
- Operating pressure: 10 to 25 PSI
- Size: 1/4" .170 ID x .240 OD
- Spacing: 6", 9" and 12"
- Warranty: Five year manufacturer’s limited warranty
DESCRIPTION
The micro-line drip line from DIG is extruded micro tubing with flow labyrinth in-line drip emitters inserted into the inside wall of the micro tubing at preset spacing of 6, 9 or 12 inch. The inline drip emitter is built with a large filter along the cross section of the drip emitter to ensure that moving particles on the bottom of the micro tubing do not enter the labyrinth water path, ensuring trouble free operation and long life. Use with 1/4" barb fittings
For commercial, agricultural and residential applications use the micro drip line with our 1/4” barb fittings. The micro drip line can be installed above ground and can be covered with mulch to blend it with the landscape. Our 1/4” micro drip line can be used for installation in planters, boxes, vegetable garden, patios and green roofs, our micro line can also be used with gravity feed system for home gardens.
Root Zone: One of the most important aspects of drip irrigation is the fact that, in many instances, a totally new and more favorable root zone is created and a relatively constant soil moisture level can be maintained.
Choosing the proper drip irrigation method based on soil type:
When using drip irrigation it is important to select the correct application rate and spacing in order to achieve the right soaked pattern shape. In sandy soil, water tends to drain quickly (gravitational force) with little lateral movement, so applying a higher flow rate over a given time period will produce a wider pattern. Using point source irrigation with .5 GPH drip emitters for one hour will provide a smaller soaked area then using 1 GPH for the same time, due to the soil characteristics.
Chinadrip is one of the leading professional irrigation system manufacturer and service provider in China.
Being experienced in manufacturing and quality control, we supply a wide range of irrigation products to over 50 countries worldwide.
Our products include drip irrigation system and its related fittings, which are manufactured by advanced technology and materials of good quality applied widely in agriculture irrigation, landscape, family garden, sports facility and so no.
Chinadrip has been training a team of professional staffs in design, technology, sales, customers’ services and quality control in the past 8 years. We are a group with strong integration who work toward the same goal: To provide for our customers the best services possible with the up-to-date technology support while maintaining our integrity and friendliness.
Our Mission:
To satisfy our customers with well-rounded services
To strengthen our products with state-of-the-art technology
To collaborate with our partners on the basis of mutual benefit
