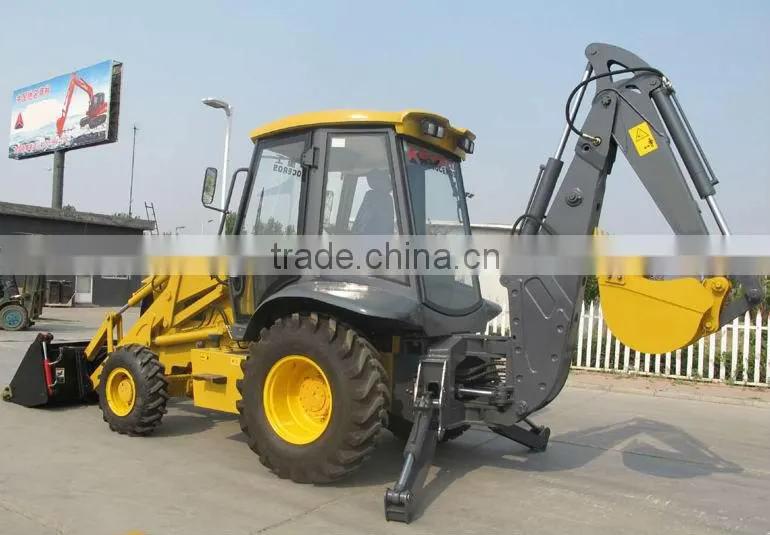

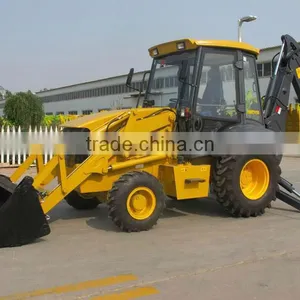

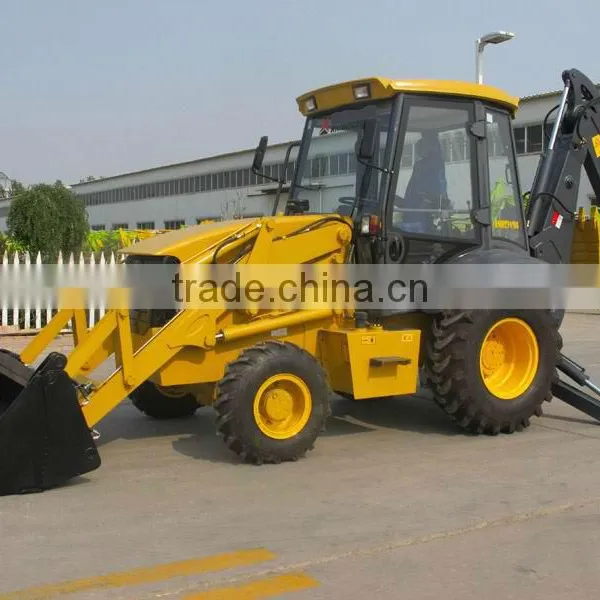

Hot Sale CE Certificate Backhoe Loader WZ74180

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

Model Number:

WZ74180

Weifang Fumei Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO CHINA

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name FM

Model Number WZ74180

Place of Origin Shandong, China

Type Backhoe Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 7400*2170*2950mm

Rated Load 6600KG

Specifications

1.engine:CUMMINS (B3.3)
2.rated power:60KW
3.bucket capacity:1CBM
4.digger capacity: 0.3CBM
5. With CE certificate

Main specification:

Engine
Model	CUMMINS (B3.3)
No. of cylinders	4 cyliners in line, Turbo-charged. water cooled
Bore and stroke	102x120 (mm)
Displacement	3.261L
Rated power	60 kw
Transmission system
Hydraulic torque converter	XN280
Drive Method (2 x 4 or 4 x 4)	4x2 / 4x4
Number of speed forward	2 (high/low speed)
Number of speed reverse	2 (high/low speed)
Speed
First forward	6 km/h / 12km/h
Second forward	14.5 km/h / 29km/h
First reverse	6 km/h /12km/h
Second reverse	14.5 km/h / 29km/h
Axle
Axle type	Hub reduction axle
Front axle track	1620 mm
Rear axel track	1340 mm
Hydraulic system
Hydraulic Motor	Gear pump
Model	CBF1025, VHP2050
Flow rate	80 L/min
Working pressure	22.5 Mpa
Electrical system
Voltage	24 V
Alternator capacity	4 kw
Battery capacity	210 Ah
Front wheels (size & ply rating)	21.5-16
Rear wheels (size & ply rating))	15-24
Diesel fuel tank	125 L
Hydraulic system fluid	132 L
Backhoe part
Backhoe bucket width	560 mm
Backhoe bucket weight	185 kg
Maximum outrigger width (extended)	2900 mm
Minimum outrigger width (transport)	2020 mm
Loader part
Bucket width	2030 mm
Bucket weight	350 kg

Operating range
Loader
A	Maximum bucket reach	3850 mm
B	Maximum loading height	3300 mm
C	Maximum loader dumped height	2550 mm
D	Dumping distance from bucket to fender	810 mm
E	Wheelbase	2110 mm
F	Maximum transport length	7400 mm
G	Maximum loading depth	20-25 mm
H	Ground clearance	300 mm
Backhoe
I	Maximum dumping height	4250 mm
J	Maximum bucket reach	5250 mm
L	Maximum digging depth	3800 mm
M	Maximum digging reach from pivot point	5250 mm
N	Maximum digging reach from rear axle	5367 mm
O	Maximum height in transport position	3300 mm
P	Height to top of cab	2950 mm
Q	Width	2170 mm
