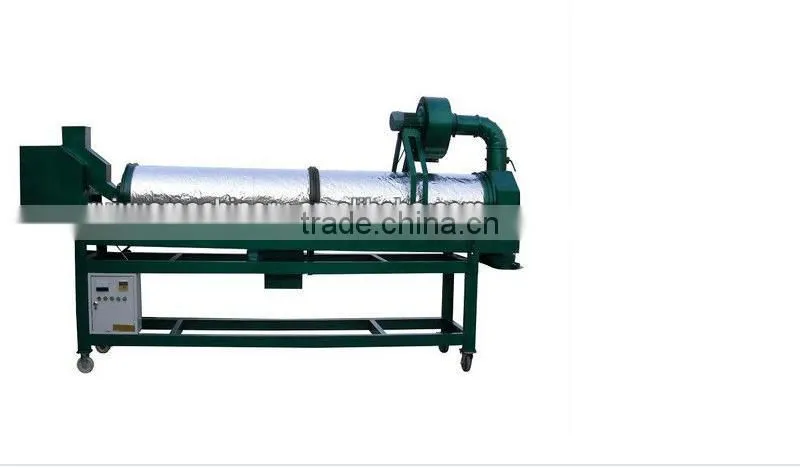

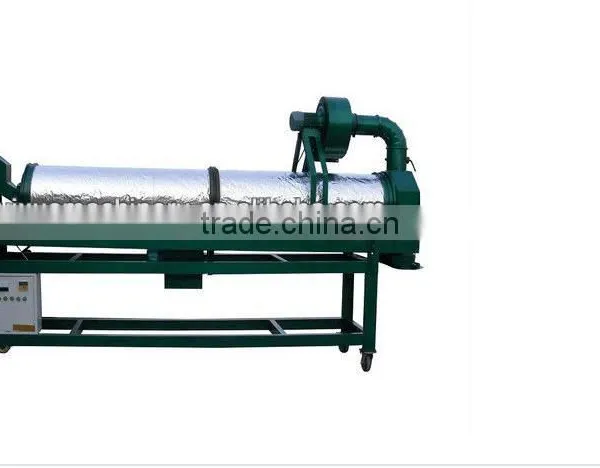

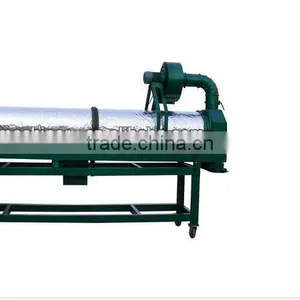

Coated Seed Dryer Seed Drying Machine
Instruction of Coated Seed Dryer Seed Drying Machine:
1. The hot wind flows the same direction with seed.
2. It can use very high hot wind but will not make the seeds very hot, and so its drying speed is very fast and very efficient.
3. The hot wind will first contact with the wetest and coldest seeds.
4. The drying results is even for all the seeds and without graded.
Working Principle of Coated Seed Dryer Seed Drying Machine
The drying machine is working by avail of hot wind as thermal medium.
The hot wind will have same flowing direction with seeds, and hot wind will first contact with westest or coldest seeds.
It can adjust the drying results by control the air input volume and by changing the incline degree of the cylinder.
When the grain goes into the cyclinder, they will be continuly rotatesd in the cylinder, at the same time, the hot wind will go through the seeds and transmit heat and water: The hot wind will convey heat to the seeds, and the temperature of seeds will go up, so the water will evaporate into the air, and go out as waste gas, and dried seeds will go out by grain outlet.
| Model | 5BH-5 |
| Capacity | 2000-5000kg/h |
| Air Volume | 2000 m³/H |
| Rotate Speed | 37r/min |
| Power | 10.5kw |
| Noise | ≤85dB(A) |
| Weight | 350kg |
| Size | 3680*800*2300mm |
If there are a lot of stones in your material, you can choose:
For better seed cleaning,you may want:
After cleaning,you may want bagging scale system:
How about seed coating machine,to protect seeds from insects eating and help seed growing stronger?
To remove the bad seeds,you need gravity separator:
Use bean polishing machine to make beans smooth,shiny and pearly!
We can also provide complete line:
1. Q Are you factory or trading company?
A We are professional manufacturer for seed processing machinery and also a international trading company
2. Q What is your minimum order quantity?
A 1 Set
3. Q What are your payment terms for new customers?
A T/T, L/C, Money Gram, West Union, Paypal etc
4. Q How long will it take for my products to arrive me?
A Usually by sea, 20 days to 50 days depend on which country you are in.
5. Q How can I visit your factory?
A1. From Guangzhou Baiyun International Airport to Shijiazhuang international airport (2.5hours) , then to our factory by car (1hour)
A2. From Beijing West Railway Station to Shijiazhuang Railway Station by high-speed train(1.5 hours), then to our factory by car (45minutes)
A3. From Hongkong International airport to Shijiazhuang international airport (4.5hours), then to our factory by car (1hour)
