Specifications
Tandem Trailer features:1) Inner size: 2400 x1500x300mm
2) GVW: 750kg
3) Tire: 165 / 70 R13 with DOT / E-marked certifica

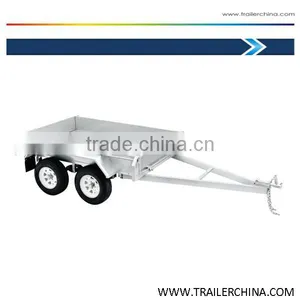

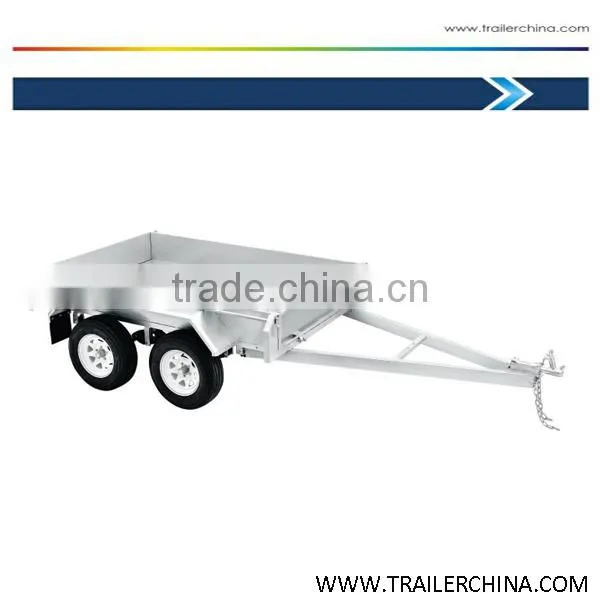

tandem trailer 8x5 Braked with rocker system
Specifications
2) GVW: 1990 KG
3) 185R14C wheel
4)Finish: hot dipped galvanized for 20 years outdoor exposure
Chassis: fully weld
Drawbar to chassis: by bolt
1.chassis size :2480* 1580mm *300mm sides
2. 70x50x2.75
3. Drawbar: 100*70* 3mm -1.8m long exposed A frame
4.Flooring: 2.5m checker plate weled
5.Side panels: 300mm
6.Coupler: Braked 50mm coupler
7. Safety Chain: comforms to ADRs2014 latest requirment
8.Tyre:14inch (14C tyre can be choiced)
9.Spring: eye to eye spring with rocker system
10.Axle: 45mm round solid with disc braked or electirc braked
11. suspension: 5 leaf eye to eye spring with high grade rocker system
12. Brake system: rocker system, disc hub, clipper, braked coupler, brake connector and metal cable.
14. Lights complete: Rear lights, No.plate light, clearance lights, Reflectors, 7 pin plug and side light.
13. Warranty: 18 months
