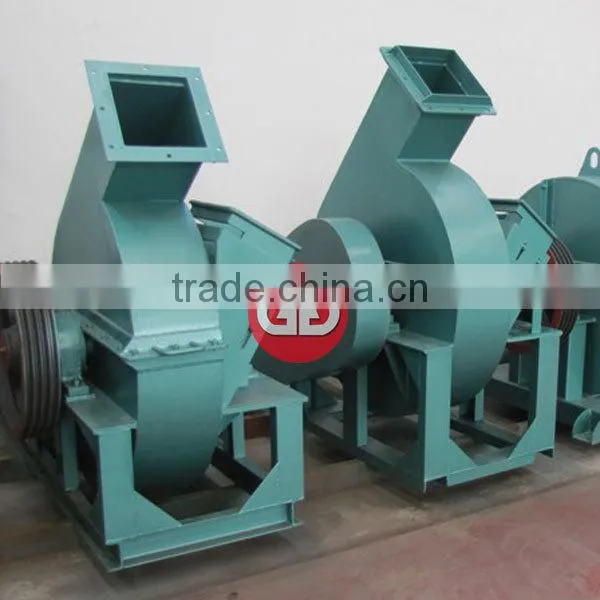

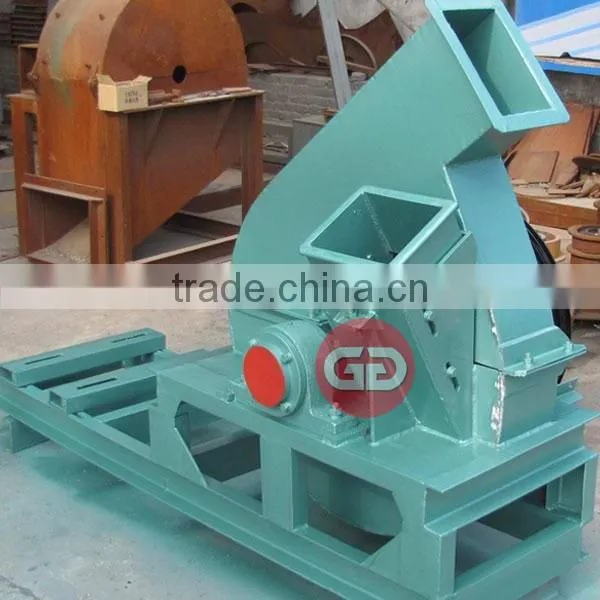

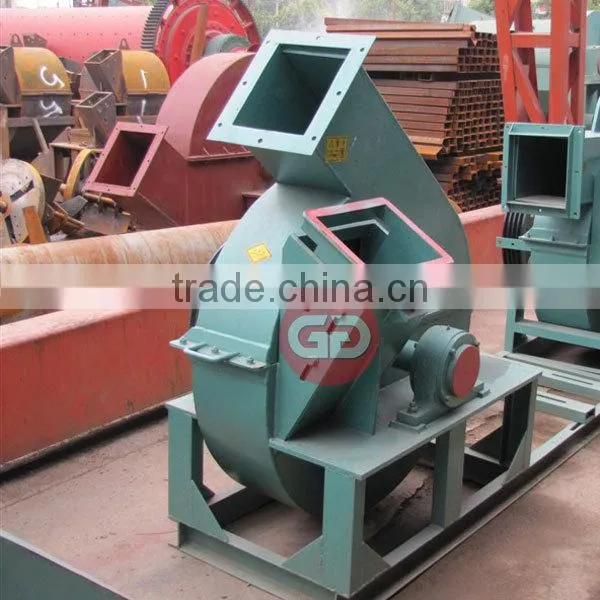

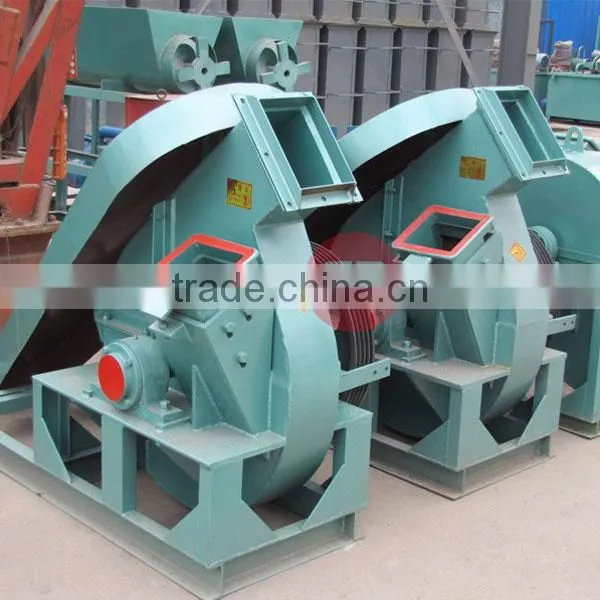

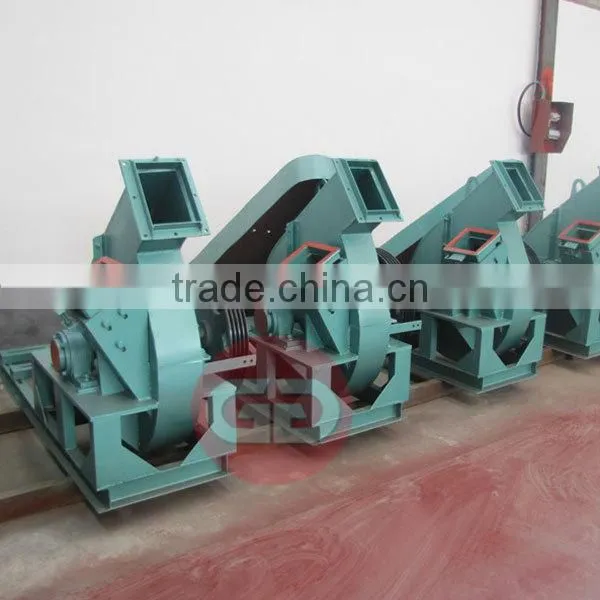

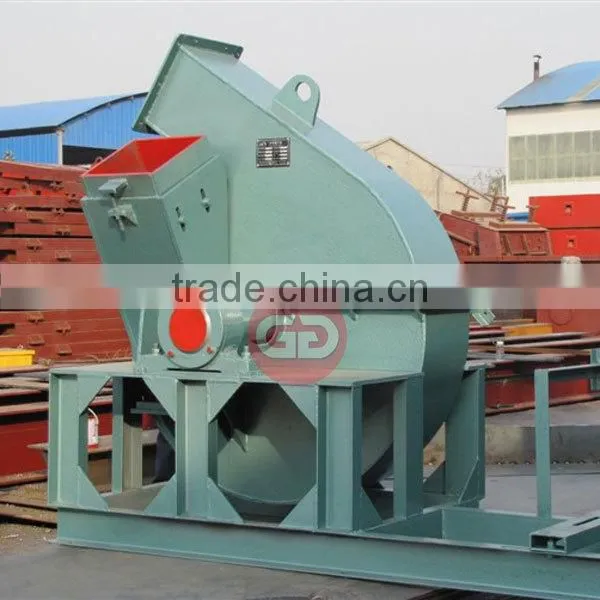

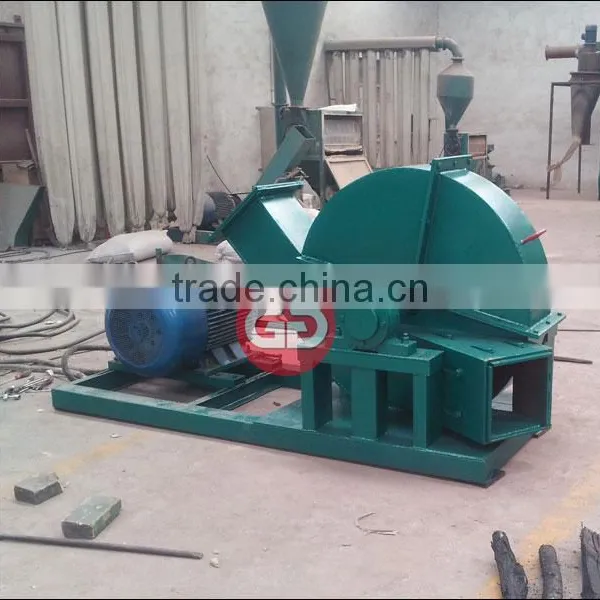

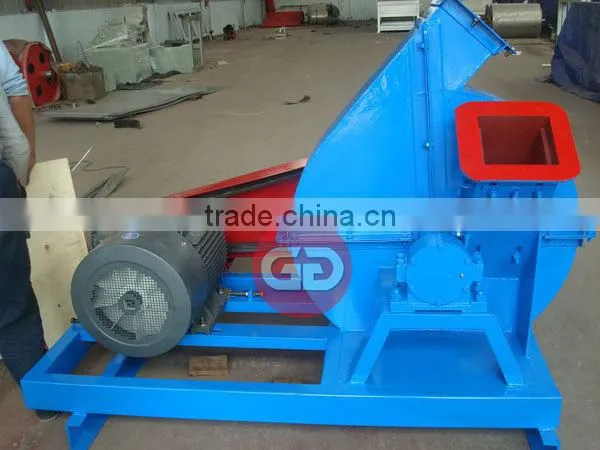

China high quality DISC wood chippers machine forestry chipper
1.disc wood chipper have feeding conveyor, can realize automatic feeding.
Disc wood chipper can chips 200mm diameter of logs, tree branch and so on. Suitable for pulp mill, trees, paper mill, wood factory etc. Cutting machine mainly includes the host, conveyor, chassis, motor four components, the host includes cutter, up and down cover,feeding and discharging port,etc.
2.It is simple to operate, high throughput, wide adaptability of raw materials, produces high chips quality, reliable and safe, easy to maintain, and are the most advanced chippers currently available in China.
3.Our high quality equipments are complemented by high quality mechanical and electrical components: SKF bearings, SEW gear reducers, Siemens Control, HMI interface, FESTO hydraulic parts.
Raw materials: wood logs, small diameter wood, residual material from wood harvesting( branches, twig), left over from timber processing( lath, slab, core, wood waste, etc.,)
forestry chipper
Model |
600 |
800 |
1000 |
1400 |
Cutter diameter(mm) |
600 |
800 |
1000 |
1400 |
Cutter speed(r/min) |
970 |
740 |
740 |
650 |
Chip length(mm) |
2-50 |
2-50 |
2-50 |
2-50 |
Chip Thickness(mm) |
2-15 |
2-15 |
2-15 |
2-15 |
Feeding mode |
horizontal |
horizontal |
horizontal |
horizontal |
Feeding port size(mm) |
220*240 |
250*250 |
350*380 |
380*400 |
Capacity(t/h) |
1-3 |
3-5 |
4-7 |
5-9 |
Main motor power(kw) |
15 |
30-37 |
37-45 |
45-55 |
Max. Diameter of raw materials(mm) |
170*200 |
200*250 |
220*300 |
250*350 |
Discharging mode |
upward |
upward |
upward |
discharge |
Weight(kg) |
1192 |
1680 |
2720 |
3300 |
|
Overall Dimensions(mm) L*W*H |
2002*1175*1360 |
2008*1400*1492 |
2208*1600*1692 |
2208*1838*1850 |

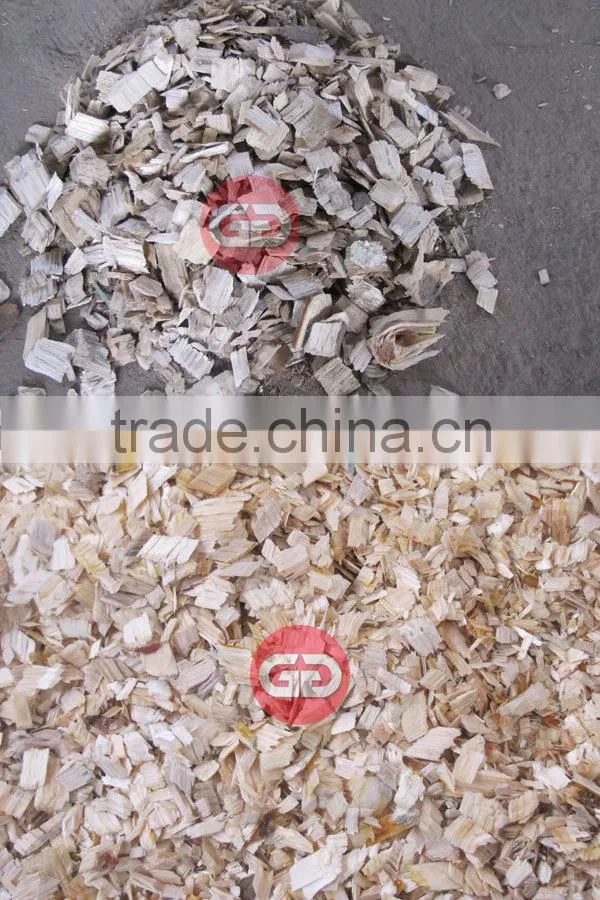

Chips our automatic wood chipper machine made

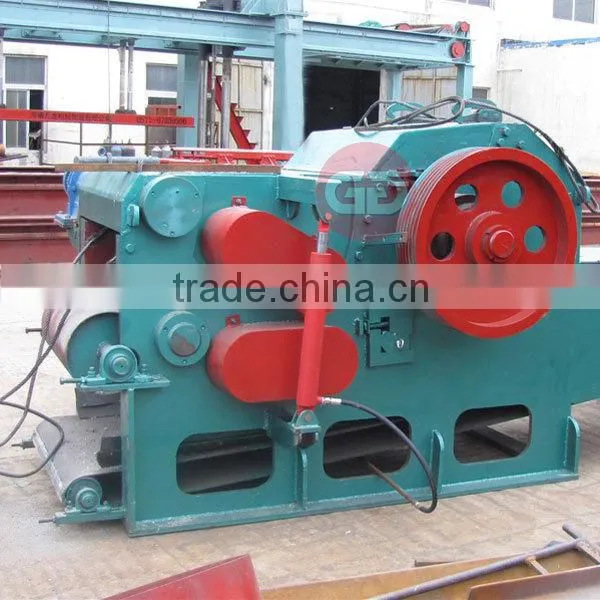

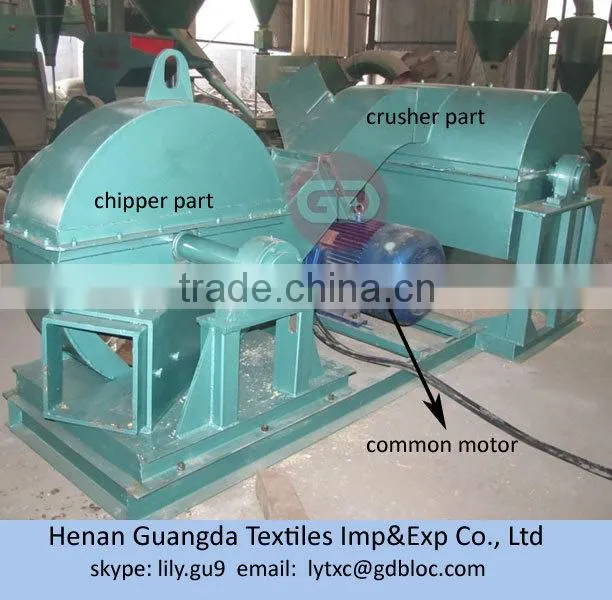

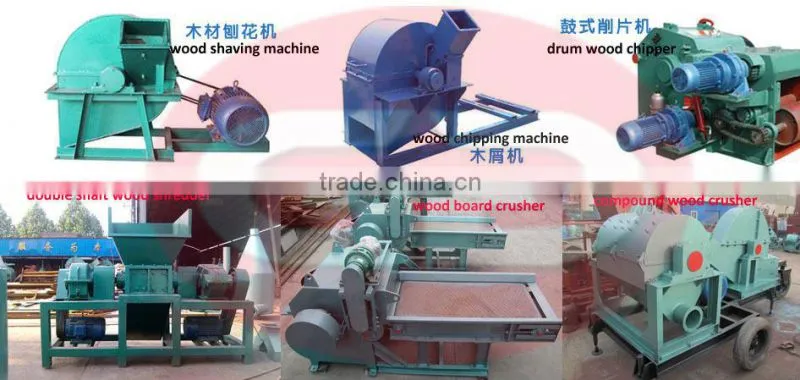

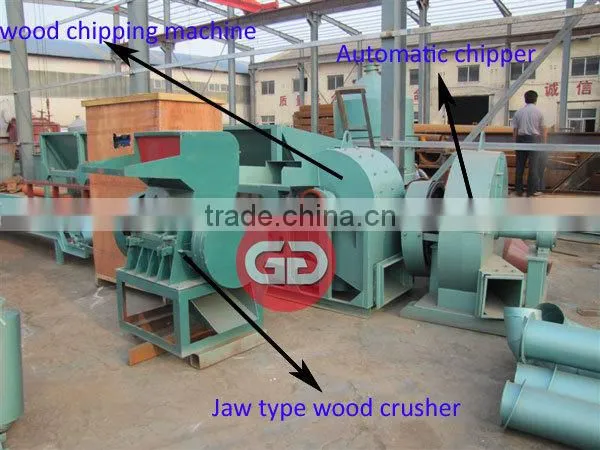

The other series of wood chipper, wood crusher we supply is like this:
Our service:
1) Pre-sale Service:
Design suitable product, offer reasonable consultation and referring documents.
2) After-sale Service:On the spot guidance for installation by our enginee, and the buyer is responsible for the Expense. We have perfect after-sales service system and team with professional advice and guidance for whole using life.
3) All order will be supplied within the stipulated period.
Welcome to contact us:
Good quality, mature technology, competitive price and good after-sales service.
If you want a more competitive price and more information about our automatic electric wood chipper, welcome to contact us, Thanks.
