Supply Competitive Price XCMG XE135 Excavator
Save Your Money Here

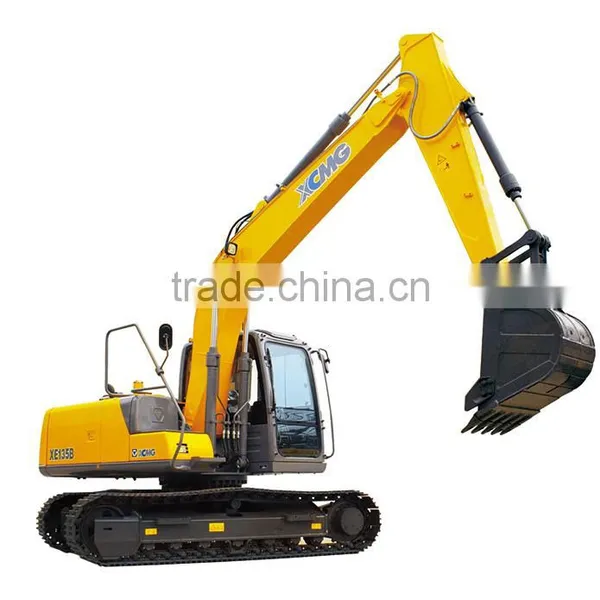

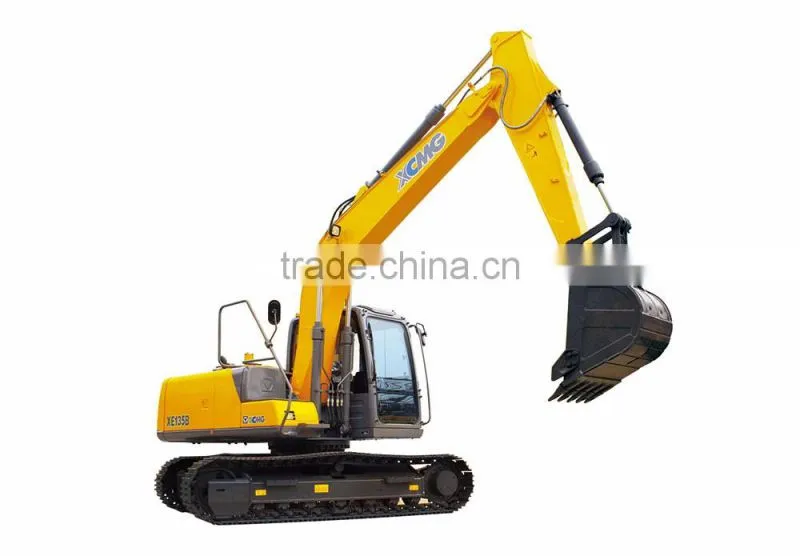

The XE135B hydraulic excavator subject to full hydraulic drive has been widely used throughout China and exported to more than twenty countries and regions in the world by virtue of its high working efficiency like medium-sized excavators and such characteristics of less fuel consumption and higher flexibility for small-sized excavators. Its working mechanism has a high-strength structure, able to meet the demands of all kinds of earthwork engineering if working together with a reinforced bucket; the latest hydraulic components and electromechanical integration control technology can make full use of the engine power and save every drop of fuel to create more value for customers; its high-power driving motor can work freely in a variety of sites; all kinds of points for daily maintenance and service can be accessible easily on the ground, which can further facilitate the maintenance operation.
XCMG crawler excavator XE135B | ||
Operating weight (kg) |
13800 |
|
Standard bucket capacity (m³) |
0.4~0.52 |
|
Engine |
Engine Model |
ISUZU BB-4BG1TRP |
|
Feature |
4 cylinders 4 stroke water cooling turbo charging direct injection |
|
Rated power/speed (kw/rpm) |
69.6/2200 |
|
Torque (N.m) |
337.6 |
|
Displacement (L) |
4.329 |
Main performance |
Travel speed (km/h) |
5.16/3.03 |
|
Swing speed (r/min) |
12.3 |
|
Gradeability |
35 |
|
Ground pressure (KPa) |
42 |
|
Max bucket digging force (kN) |
85 |
|
Max arm crowd force (kN) |
65 |
|
Max traction force (kN) |
134 |
Hydraulic system |
Main pump |
Japan Nachi |
|
Rate flow of main pump (L/min) |
2x123 |
|
Max pressure of prime relief valve (MPa) |
31.4/34.3 |
|
Max pressure of travel system (MPa) |
34.3 |
|
Max pressure of swing system (MPa) |
25 |
|
Max pressure of pilot system (MPa) |
3.9 |
Oil capacity |
Fuel tank capacity (L) |
250 |
|
Hydraulic tank capacity (L) |
130 |
|
Engine lubrication (L) |
14 |
Overall dimensions |
Overall length (mm) |
7770 |
|
Overall width (mm) |
2512 |
|
Overall height (mm) |
2880 |
|
Overall width of upper structures (mm) |
2512 |
|
Track length (mm) |
3660 |
|
Overal width of undercarriage (mm) |
2490 |
|
Crawer width (mm) |
500 |
|
Crawer gauge (mm) |
1990 |
|
Clearance under counter weight (mm) |
964 |
|
Ground clearance (mm) |
478 |
|
Min. Tail swing radius (mm) |
8641 |
Working range |
Max. Digging height (mm) |
6181 |
|
Max. Dumping height (mm) |
5538 |
|
Max. Digging depth (mm) |
5287 |
|
Max. Vertical wall digging depth (mm) |
4727 |
|
Max digging reach (mm) |
8296 |
|
Min. Sw ing radius (mm) |
2335 |
|
Angle of arm deflection |
/ |
Reference Photos
1. According to your needs, recommend the right products with competitve price. Our company is specialized in selling Wheel loaders, Excavators, Road rollers, Heavy duty trucks, Motor graders and Tractors,etc
2. Handling exporting entire project from begining to end, from production to shipment. Sending you the documents all in full, like Bill of Loading, Invoice, Packing List etc after shipment.
3. Fast and efficient after-sales service are available.
HENAN DEXING MACHINERY EQUIPMENT CO., LTD was founded in 2010 year,engaged in exporting Wheel loaders, Excavators, Road rollers, Heavy duty trucks, Motor graders and Tractors,etc. In the business, our company insists getting reputation by " Quality" "Innovation" "Value" and "Responsiblity"
Closely cooperating with China Famous professional factories like XCMG, Foton SANY SDLG and so on, we have accumulated rich exprience in international trades with more than 30 countries, like Mexico, Chile, Brizil, Argentina Philippines Thailand ,Australia, USA, Canada, Sweden Uganda, Botswana etc.
Company's aim is to sell China qualified products to all the world with competitive price and excellent after-sale service. Welcome to China. Welcome to our company. Hope you can find the satisfied products here with us.
Sales Team Available
1. How about your team and service?
a.Team Attitude: Nice /Work: Professional/Communication: in time /Character:responsible
b. Service Quality: Guarantee /Price:Competitive / Delivery :on time /After-sales service: Fast and Efficient
2. What is the payment way.
We normally work on T/T term, sometimes we work on L/C term.
a. On T/T term, 30% down payment is required in advance, and 70% balance payment shall be settled before shipment.
b. On L/C term, a 100% irrevocable L/C at sight without “soft clauses” can be accepted. (For some particular countries like Algeria, Bengal etc.)
3. What is the delivery time?
If machine in the stock, we will arrange delivery within 7 days ;
If machine out of stock, we need 10-25 days to arrange production.
4. How to ship?
a. For 90% , we can ship by sea, to all main continents such as Africa, Middle east, Southeast Asia, South America, Oceania and Eurpe etc, eigher by container or RORO/Bulk shipment.
b. For neighborhood countries of China, such as Russia, Mongolia,Kazakhstan,Uzbekistan etc, we can do by road or railway.
c. For light spare parts in urgent demand, we can deliver it by international courier service, such as DHL,TNT,UPS, or Fedex etc.
