Hot-sale good quality CE approved field grass chopper machine
1.The wide usage of field grass chopper machine :
Suitable for cutting green and dry corn stalk,grass, rice and wheat stalk. The processed mass can be
used to feed cattle, goats, deer, and horses. It can also processed cotton stalk,bark,branches,
They can also be used to generate electricity, make paper , artificial board and extract alcohol.
2 .The main feature of field grass chopper machine :
1. Steel-framed structure, small, light, and easy to move.
2. With safety device designed to avoid accidents caused by knives knocking into each other the whole machine is safe and reliable.
3. Applying advanced hay-conveying structure with hay-conveying rollers (for whose patent we have been awarded), the cutter conveys hay automatically and smoothly with a high speed, so it works efficiently.
4. Universal joints used as roller transmission with compact structure, the cutter runs flexibly and is easy to take apart and also easy to install.
5. The blade made of high-quality steels is refined through special technological process, so it is especially wear-proof. The cutter uses high-strength bolts, and is safe and reliable.
6.The outer covering of thickened steel plates is wholly die-cast through constant welding with the pressed trade mark, so the whole machine is artistic and in good taste and able to stand wear and tear.
7.Lowest price for the same productivity
3.The technical parameter of field grass chopper machine:
9Z-4C
Type |
9Z-4C |
9Z-4C trailer type |
||
Mating power |
Motor (kw) |
Power(kw) |
5.5 |
|
revolving speed(r/min) |
1440 |
|
||
|
Diesel trailer
|
type of belt drive |
Belt drive |
Pto shaft |
|
Power (kw) |
12-15 |
|||
revolving speed(r/min) |
|
540 |
||
tractor trailer type |
|
Traction driven |
||
Dimensions |
Size (mm) |
630*1010*1300 |
||
Operating size(mm) |
1737*1575*2315 |
2690*1210*2390 |
||
Weight (kg) |
280 |
340 |
||
Cutterhead speed(r/min) |
800 |
800 |
||
Blade |
4 |
|||
The quantity of the shaft |
|
6 |
||
triangular belt |
B1800 3 |
B1350 3 |
||
Type |
|
|
|
Length of cut grass 16mm Uniform continuous feed |
Maize straw(78%) |
4t/h |
Maize straw(17%) |
1.6t/h |
|
Straw (17%) |
1.3t/h |
|
Wheat straw (17%) |
1t/h |
|
Alfalfa (17%) |
1.5t/h |
|
Length of cut grass |
17,22,34,44(mm) |
|
The blow distance of final product |
10-15(m) |
|
9Z-6A
Type |
9Z-6A |
9Z-6A trailer type |
||
Mating power |
Motor (kw) |
Power(kw) |
7.5 |
|
revolving speed(r/min) |
1440 |
|
||
|
Diesel trailer
|
type of belt drive |
Belt drive |
Pto shaft |
|
Power (kw) |
15-20 |
|||
revolving speed(r/min) |
|
540 |
||
tractor trailer type |
|
Traction driven |
||
Dimensions |
Size (mm) |
755*1393*1585 |
||
Operating size(mm) |
2147*1600*2756 |
3110*1500*2866 |
||
Weight (kg) |
400 |
460 |
||
Cutterhead speed(r/min) |
650 |
650 |
||
Blade |
3/4 |
|||
The quantity of the shaft |
|
6 |
||
triangular belt |
B2150 3 |
B1400 3 |
||
Type |
|
|
|
Length of cut grass 16mm Uniform continuous feed |
Maize straw(78%) |
6t/h |
Maize straw(17%) |
2t/h |
|
Straw (17%) |
2t/h |
|
Wheat straw (17%) |
1.5t/h |
|
Alfalfa (17%) |
2.5t/h |
|
Length of cut grass |
2 blades |
18,27,38,53(mm) |
3 blades |
12,18,25,35(mm) |
|
4 blades |
9,4,19,27(mm) |
|
The blow distance of final product |
5-8mm |
|
9Z-9A
Type |
9Z-9A |
9Z-9A trailer type |
||
Mating power |
Motor (kw) |
Power(kw) |
15 |
|
revolving speed(r/min) |
1440 |
|
||
|
Diesel trailer
|
type of belt drive |
Belt drive |
Pto shaft |
|
Power (kw) |
25 |
25-50 |
||
revolving speed(r/min) |
|
540 |
||
tractor trailer type |
|
Traction driven |
||
Dimensions |
Size (mm) |
2620*1720*1850 |
2735*1800*1960 |
|
Operating size(mm) |
2620*2140*4110 |
3510*1800*4210 |
||
Weight (kg) |
880 |
880 |
||
Cutter revolving speed(r/min) |
500 |
|||
Blade |
3 |
|||
The quantity of the shaft |
|
8 |
||
triangular belt |
B3000 5 |
B1900 4 |
||
Type |
|
|
|
Length of cut grass 16mm Uniform continuous feed |
Maize straw(78%) |
9t/h |
Maize straw(17%) |
3.5t/h |
|
Straw (17%) |
4t/h |
|
Wheat straw (17%) |
3t/h |
|
Alfalfa (17%) |
3.5t/h |
|
Length of cut grass |
3 blades |
12,18,25,35(mm) |
The blow distance of final product |
10-15(m) |
|
9Z-2.5
Type |
|
||
Mating power |
Motor |
Power(kw) |
4 |
revolving speed(r/min) |
1440 |
||
motor pulley(mm) |
105 |
||
|
diesel tractor Or Agricultural tricycle |
Drive type |
Belt drive |
|
Power (hp) |
8-12 |
||
Diesel pulley |
135 |
||
Dimensions |
Size (mm) |
510*982*1050 |
|
Operating size(mm) |
1230*1150*1695 |
||
triangular belt(with motor) |
B1650 3 |
||
Weight (kg) |
138 |
||
Cutterhead speed(r/min) |
800 |
||
Type |
|
|
|
Length of cut grass 16mm Uniform continuous feed |
Maize straw(78%) |
2.5t/h |
Maize straw(17%) |
1t/h |
|
Straw (17%) |
1t/h |
|
Wheat straw (17%) |
0.6t/h |
|
Alfalfa (17%) |
1.2t/h |
|
Length of cut grass |
2 blades |
22,52(mm) |
3 blades |
15,35(mm) |
|
4 blades |
11,26(mm) |
|
9Z-30
Type |
Parameter |
||
Mating power |
Motor (kw) |
Power(kw) |
5.5 |
revolving speed(r/min) |
14 |
||
Feeder power(kw) |
4 |
||
Dimensions |
Size (mm) |
3630*2070*2810 |
|
Operating size(mm) |
4290*2510*4510 |
||
Weight (kg) |
2300 |
||
Cutterhead speed(r/min) |
450 |
||
Blade |
3 |
||
Type of drive |
Ordinary v-belt drive |
||
Ordinary v-belt |
3 |
||
Belt conveyor(alternative) |
Power 3kw ,Conveying distance 4.5m |
||
5000*1000*830mm | |||
Type |
|
|
|
Length of cut grass 16mm Uniform continuous feed |
Maize straw(78%) |
30t/h |
Maize straw(17%) |
12t/h |
|
Straw (17%) |
10t/h |
|
Wheat straw (17%) |
12t/h |
|
Alfalfa (17%) |
12t/h |
|
Cotton stalks (17%) |
10t/h |
|
Length of cut grass |
3 blades |
18,21,41,64(mm) |
The blow distance of final product |
10-15(m) |
|
9RC-50
Item |
Production Efficiency |
Cotton stem |
0.5-1 t/h |
Corn straw |
0.5-1.5 t/h |
Cotton stalk |
0.5-1.5 t/h |
Rice straw |
0.5-1.5 t/h |

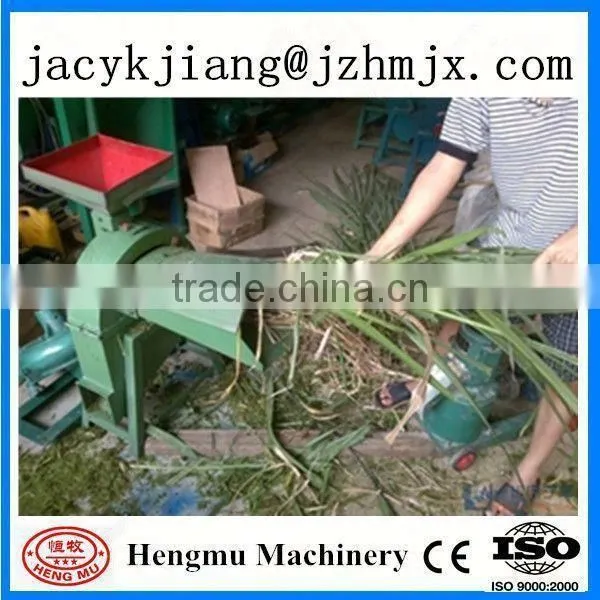

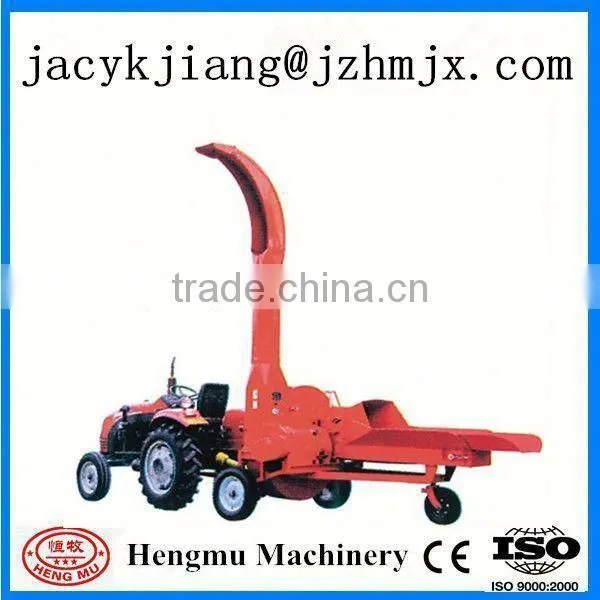

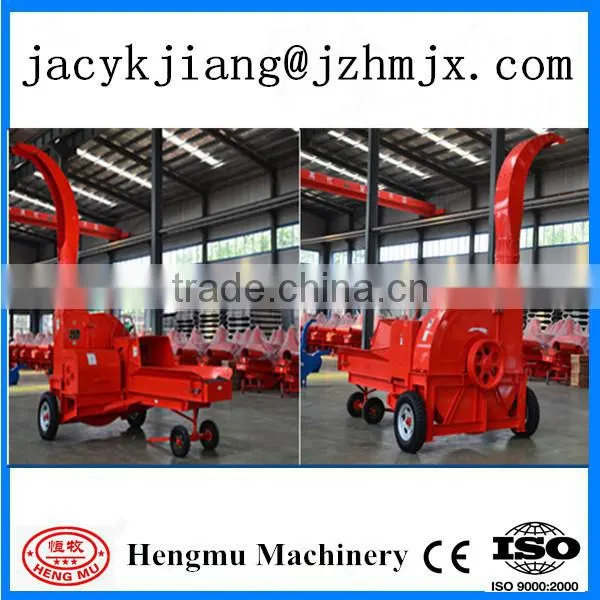

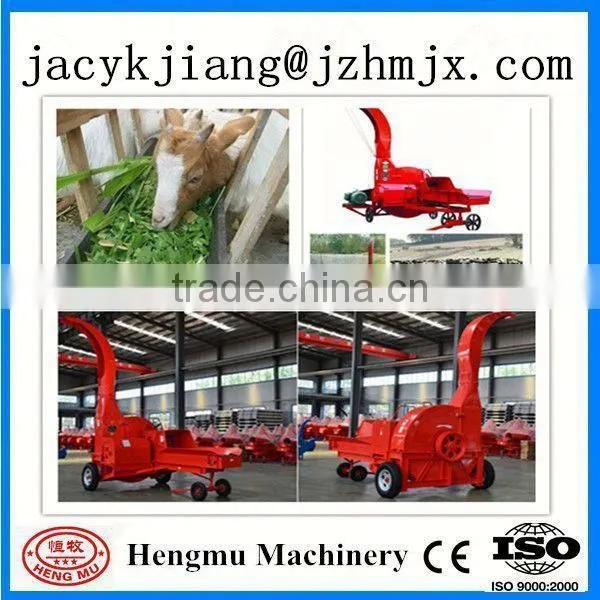

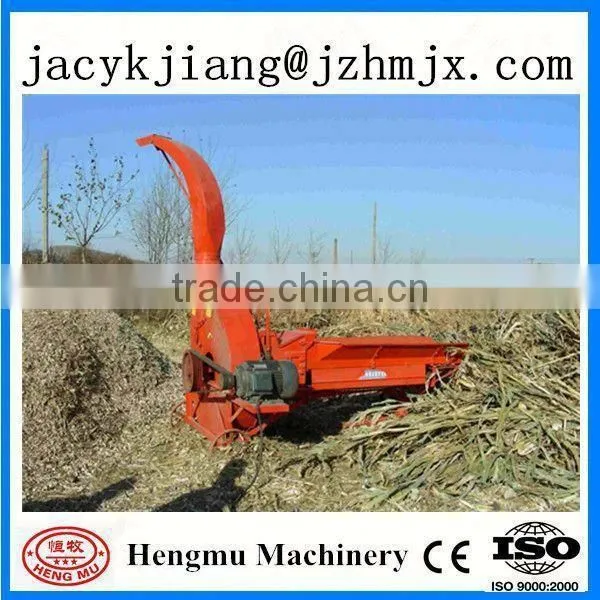

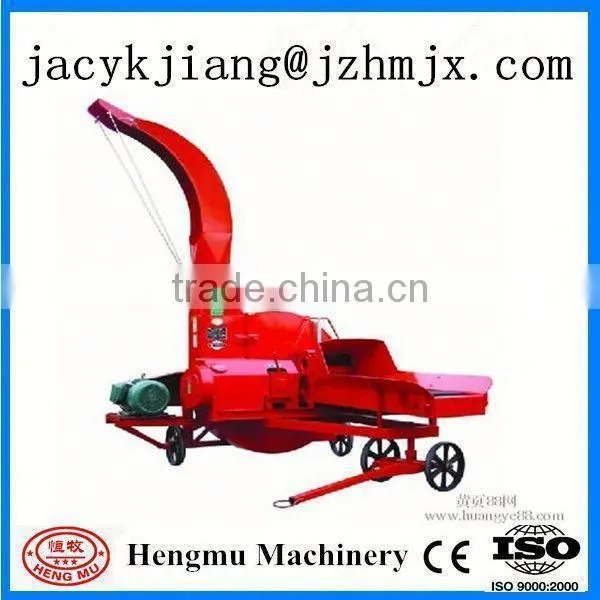

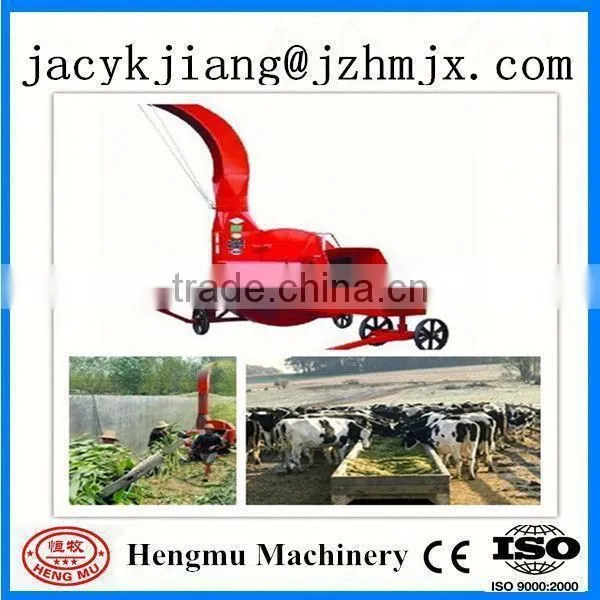

4,Picture show of field grass chopper machine:

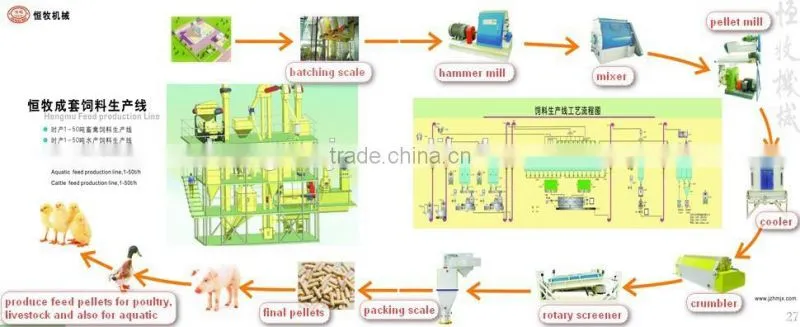

Jiaozuo Hengmu Husbandry Machinery Co., Ltd. is located in the south of Yuntai Mountain, a beautiful world geology park. Our company is specialized in feed machinery and complete engineering, enzyme production machinery and complete engineering, organic fertilizer processing machinery and complete engineering, sawdust, rice husk and biomass particles equipment.Our products are exported to more than 30 countries.
Factory Size: |
10,000-30,000 square meters |
|
|
Factory Location: |
1. Xiuwu County Industrial Zone, Jiaozuo City, Henan Province, China 2. Room 807, Unit 1, Building No. 3, Meijinghuajun Community, Jinshui District, Zhengzhou City, Henan Province, China |
|
No. of Production Lines: |
5 |
|
Contract Manufacturing: |
OEM Service Offered Design Service Offered Buyer Label Offered |
|
Annual Output Value: |
US$10 Million - US$50 Million |
|
Product Price Range: |
High and/or Average
|
1. 24 hours rapid response for full-time.
2. We make maintenance plans for each equipment from our factory.
3. We provide operating training for every customer.
4. We remind the customer termly to maintain the machine.
