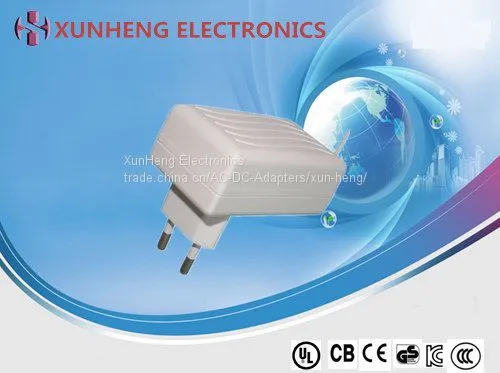

12W OEM/ODM Customized Design High Performance Wall-mounted Adapter With 6 Types of AC Plug

12W OEM/ODM Customized Design High Performance Wall-mounted Adapter With 6 Types of AC Plug thumbnail-1
12W OEM/ODM Customized Design High Performance Wall-mounted Adapter With 6 Types of AC Plug thumbnail-2
12W OEM/ODM Customized Design High Performance Wall-mounted Adapter With 6 Types of AC Plug thumbnail-3
12W OEM/ODM Customized Design High Performance Wall-mounted Adapter With 6 Types of AC Plug photo-1
12W OEM/ODM Customized Design High Performance Wall-mounted Adapter With 6 Types of AC Plug photo-2
12W OEM/ODM Customized Design High Performance Wall-mounted Adapter With 6 Types of AC Plug photo-3
Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
XH
Place of Origin:
China
Model Number:
XH-WA006-S
Contact Supplier Request Quote Chat Now
XunHeng Electronics
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name XH
Place of Origin China
Model Number XH-WA006-S
Output Power 1 - 50W
Output Type Single
Output Current 0.1-2A
Output Frequency 50/60Hz(47-63Hz)
Output Voltage 3-30V
Input Voltage 220V

Applications

Fixed frequency control circuit, apply to communication products, digital products, energy conservation and environment friendly products, massage equipment, fitness equipment, medical equipment and other household electrical appliances.

Product characteristics

  • Safety approval of CCC, CB, ETL, CE, GS, BS, KC, SAA, PSE

  • Low standby power consumption, meet the energy efficiency standards of EU CoC V5 and US DoE VI/CEC VI (6)

  • Accept customization of specification, USB output type or power cord output type.

  • Customization: EU standard, American standard, British standard, Australia standard, Korean Standards, Chinese standard.

Electrical characteristics

  • Input voltage: 100-240V AC (90-264V AC)

  • Input current: 0.5A max.

  • Frequency:　50/60Hz (47-63Hz)

  • Output voltage: 3.0-30V

  • Output current： 0.1-2.0A

  • No-load power consumption：0.1W max.

  • Efficiency: 70% min

  • Ripple & noises：　50-300mV

  • Line regulation: ± 1%

  • Load regulation: ± 5%

Output protections

  • Short circuit protection

  • Over voltage protection

  • Over current protection

Environmental characteristics

  • Hi-pot test： 3750VAC 60s 5mA max.

  • Insulation resistance: 100M Ω min.

  • Leakage current: 0.25mA max.

  • Operating temperature: 0-40℃

  • Storage humidity: 5-95%RH

  • Burn-in test: rate load, 40±5℃, 4 hours

  • EMC standards: EN55022 class B/FCC part 15 class B, EN55024/A1:2001/EN61000


Product Tags: power adapter , adapter
