Energy Efficiency crude edible palm oil refinery
Refining rate:refining consumption 1%
Bleaching earth consumption:3-5Kg/Toil
Circulating water cooling water yield:150M3/H
Steam consumption:450kg/T oil
application:palm oil refinery process
Min.Order Quantity:1 Set/Sets palm oil refinery
Port:Qingdao
Packaging Details:Packaged in accordance with international standards, usually wooden box, or can be adjusted according to customer requirements.
Delivery Detail:palm oil refinery process machien delivery about 30days
Quick Details
- Condition: New
- Usage: palm oil refinery
- Type: palm oil refinery
- Automatic Grade: Automatic
- Production Capacity: 1-50T/D, palm oil refinery
- Place of Origin: Henan, China (Mainland)
- Brand Name: Qi'e
- Model Number: LM50
- Voltage: 380V/440V
- Power(W): according the capacity of refining
- Dimension(L*W*H): according the capacity of refining
- Weight: different
- Certification: BV and CE certification
- After-sales Service Provided: Engineers available to service machinery overseas
- Phosphoric acid: 2~3 kg/T oil
- Waste bleaching earth oil content: 5% to 102%
- soften water: 130Kg/T oil
- Refining rate: refining consumption 1%
- Bleaching earth consumption: 3-5Kg/Toil
- Circulating water cooling water yield: 150M3/H
- Steam consumption: 450kg/T oil
- application: palm oil refinery process
Packaging & Delivery
| Packaging Details: | Packaged in accordance with international standards, usually wooden box, or can be adjusted according to customer requirements. |
|---|---|
| Delivery Detail: | palm oil refinery process machien delivery about 30days |
Energy saving palm oil refinery process

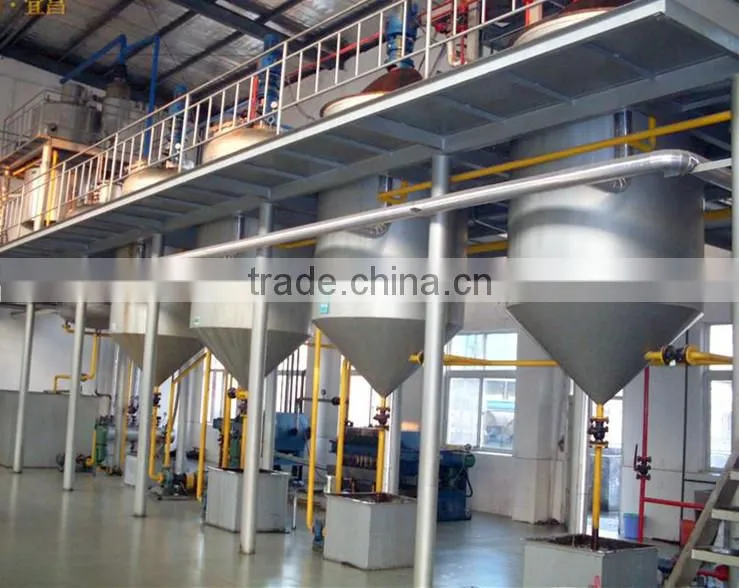

Palm oil refinery Exterior workshop:
Qi'E company main business:
10-500T/H oil material first cleaning,drying and storage section turn-key project.
100-3000 T/D oil pretreatment, shelling and pre-press workshop turnkey project (soybean hot peeling,
bean skin crushing; the soybean extrusion, high oil contained pre-press cake extrusion, and high oil
contained embryos puffed; of direct puffed). Rice bran production line turn-key project.
Leaching workshop turnkey project (Towline extractor, Rotocel extractor, loop type extractor, DTDC separated machine, the full negative pressure evaporation, paraffin wax recovery, leaching workshop degum, phospholipid concentrate).
30-1000T/D oil continuous grade two or one physical (chemical) refining production line.
10-600T/D sunflower oil, rice bran oil, corn germ oil dewaxing turn-key project
10-200T/D Fatty acid esterification production cooking oil production line.
What is palm oil refinery?
The crude oil obtained either from expellers or solvent extraction plant contains impurities, which must be removed to make the oil edible, more palatable and stable against rancidity upon storage. The process of removing these impurities is called refining.
Palm oil Refinery methods:
1)chemical refining 2) physical refining 3)chemical-physical refining
Usually palm oil refinery adapte to physical oil refining method.Physical and chemical oil refinery are similar.And the operation priciple as belows:
Step 1.Degumming with water to remove the easily hydratable phospholipids and metals.
Step 2.Addition of a small amount of phosphoric or citric acid to convert the remaining non-hydralable phospholipids (Ca, Mg salts) into hydratable phospholipids.
Step 3.Neutralising of the free fatty acids with a slight excess of sodium hydroxide solution, followed by the washing out of soaps and hydrated phospholipids.
Step 4.Bleaching with natural or acid activated clay minerals to adsorb colouring components and to
decompose hydroperoxides.
Step 5.Deodorising to remove volatile components, mainly aldehydes and ketones, with low threshold values for
detection by taste or smell. Deodorisation is essentially a steam distillation process carried out at low pressures
(2-6 mbar) and elevated temperatures (180-220C).
Functions of palm oil refinery main parts
(1) Refining section: used to P-acid de-gumming, alkali refining de-acid and water rinsing.
(2) Decoloring section: used to remove off pigments, bleaching oils and grease dehydrate.
(3) Deodorizing section: to remove off the odor components in oil.
(4) Dewax: used to remove off the wax in the oil, in order to get the high quality oil.
(5) Heat-transfer oil stove: supply each device production needing heat energy, temperature reach above 280C.
(6) Steam generator: produce the needing steam for de-odoring and distillation.
(7) Vacuum pump: supply needing vacuum for dehydrate, de-color, de-odor. Vacuum degree can reach above 755mm Hg.
(8) Press filter: filter clay, filter out clear oil.
(9) Air compressor: blow dry bleached clay, blow empty the leftover oil in the press filter.
Palm oil refinery process flowchart:

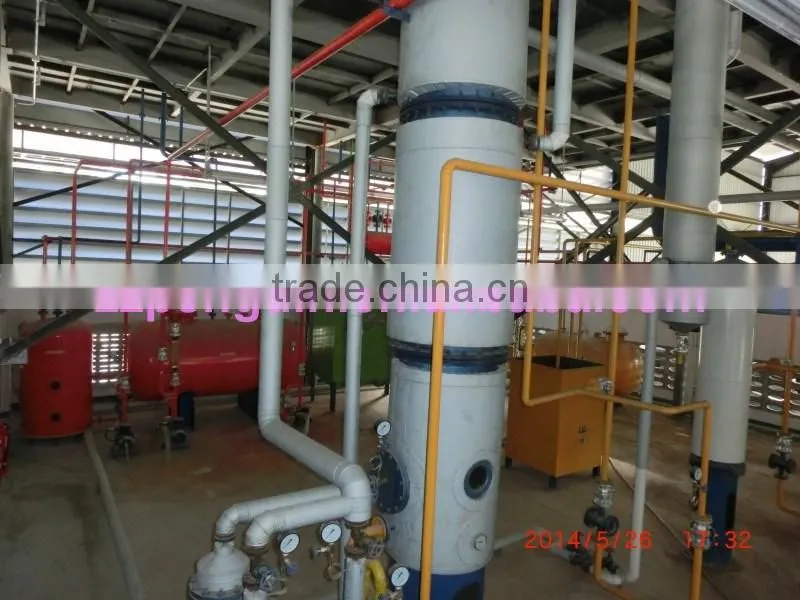

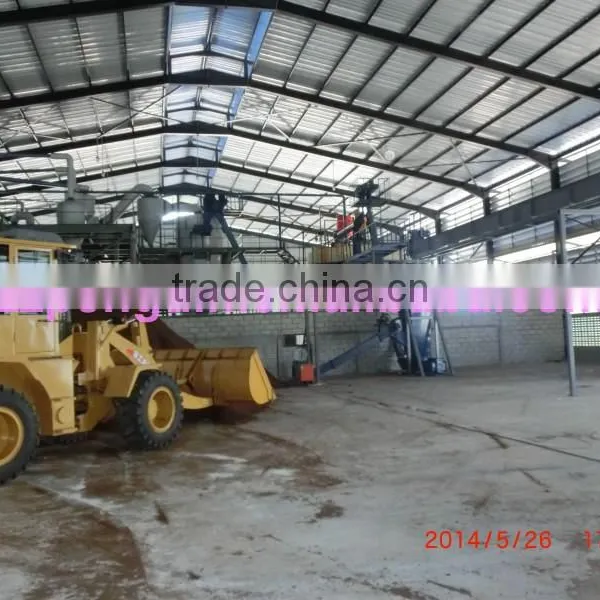

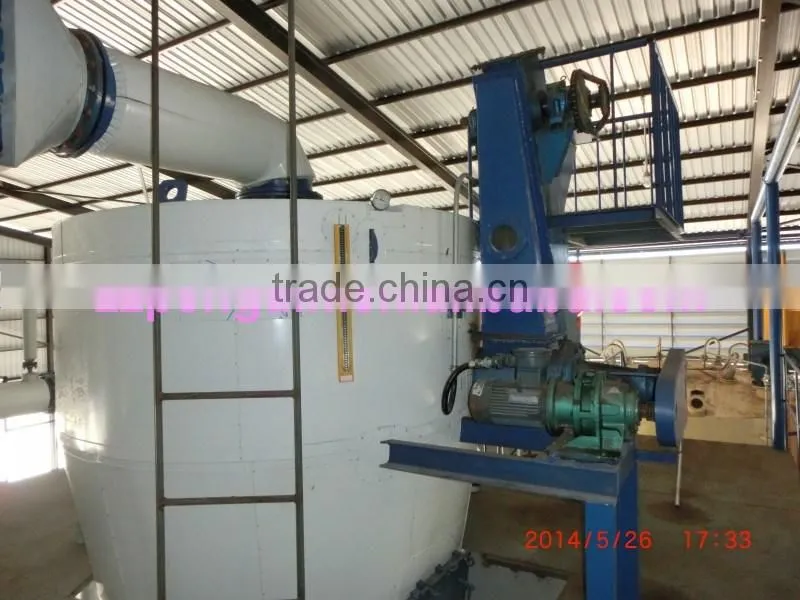

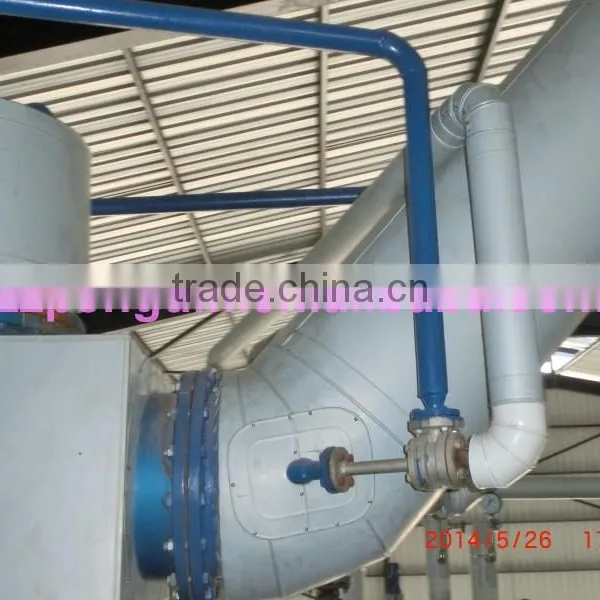

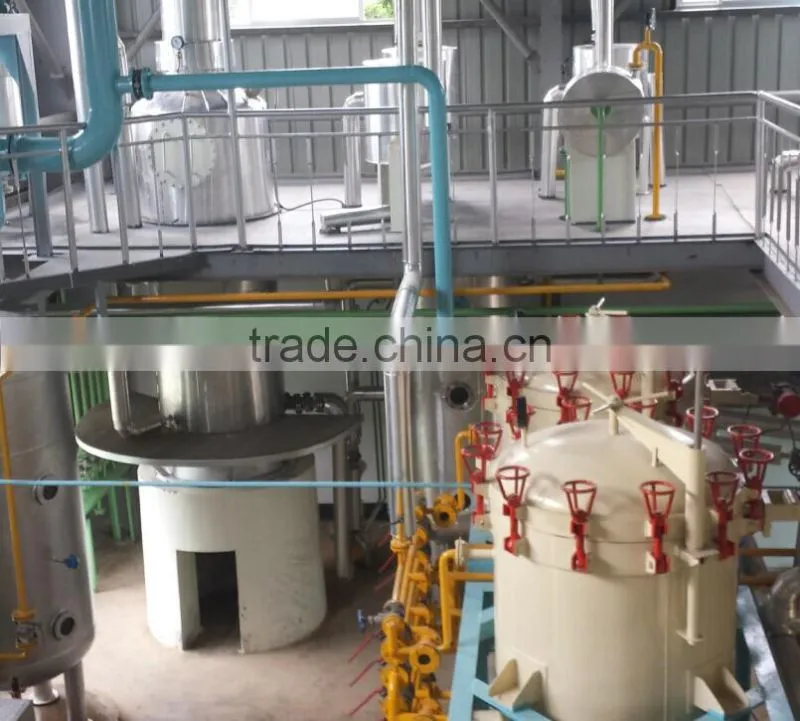

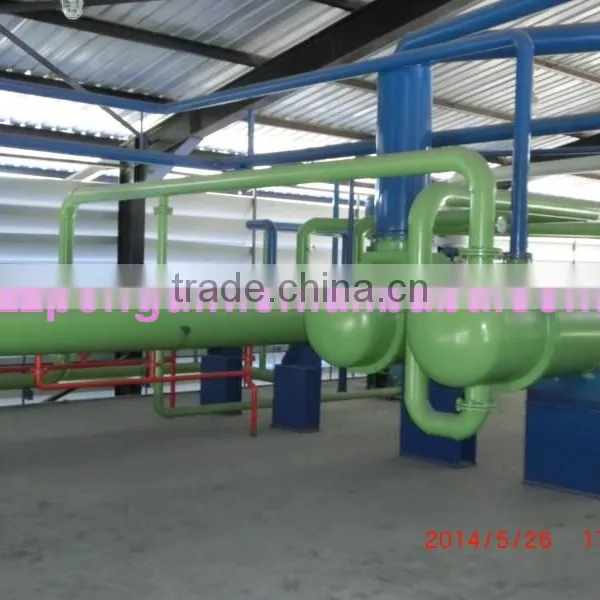

Palm oil refinery installation on site:
Company production ability:
Asia
Indonesia-Djakarta:5TPD Oil refining;
Kazakhstan:300TPD Cotten seed oil line;
Russia:200TPD Sunflower oil line ,Soybean oil line and 120TPD Sunflower oil line;
Thailand:100TPD and 20TPD Palm cake exaction workshop;
Ukraine:200TPD Sunflower oil line;
Bangladesh:30TPD Rice bran oil line;
Uzbekistan:150TPD Oil refing machine;
Pakistan:Two 50 TPD Oil refing machine.
Europe
Serbia:150TPD Soybean oil line;
Romania:30TPD Sunflower oil line.
Africa
Egypt:300TPD and 100TPD Soybean oil line;30TPD Rice bran oil line;
Nigeria:250TPD Shea butter line;40TPD Peanut oil machine;
Cameroon:50TPD Palm oil refinery and fractionation line;
Congo:1TPD Oil refing machine;
Ghana:Oil press and Filter machine;
Malawi:5TPD Oil refing machine;
Burkina faso:Two 30TPD Oil refing machine.
America
Peru:100TPD Soybean oil refing machine and 30TPD Soybean oil line;
Paraguay:20TPD Soybean oil line;
