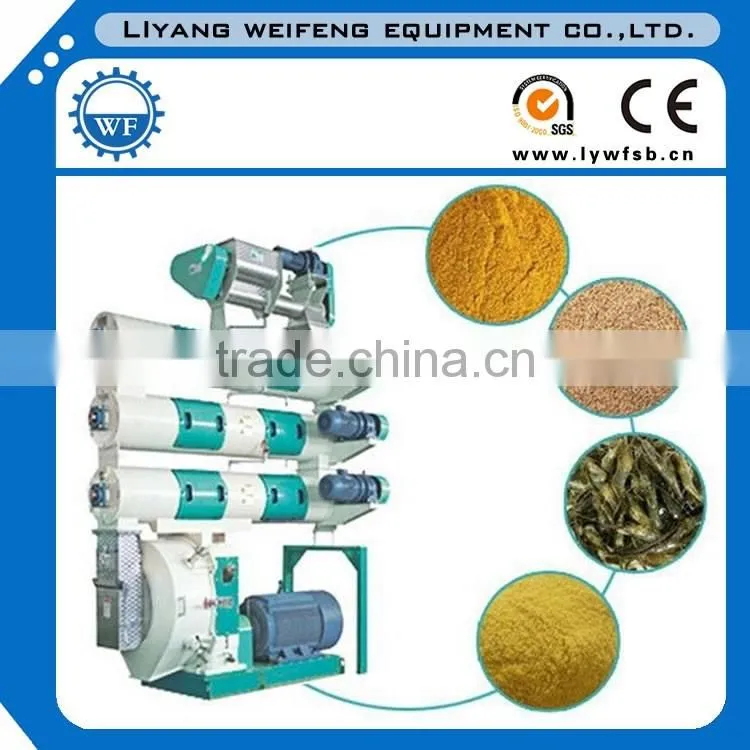

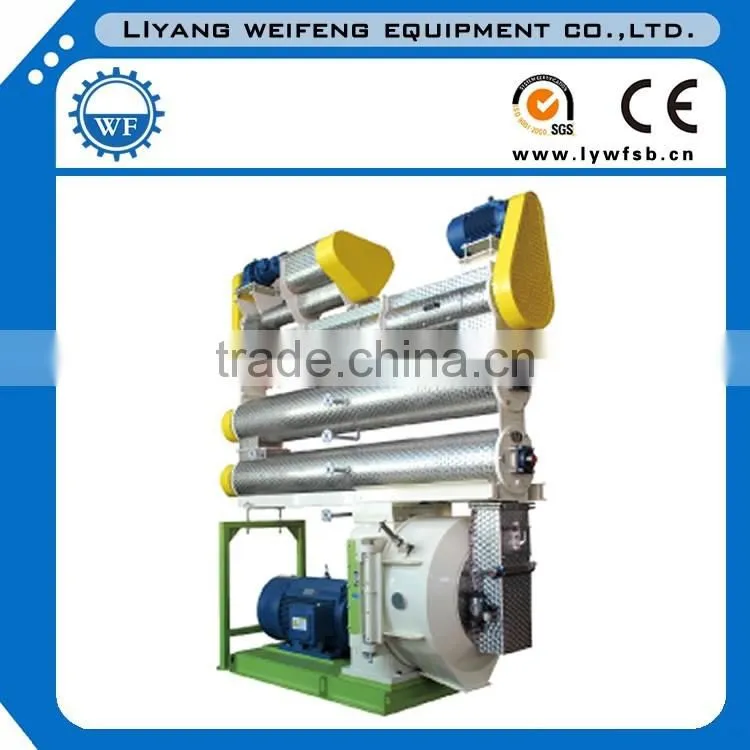

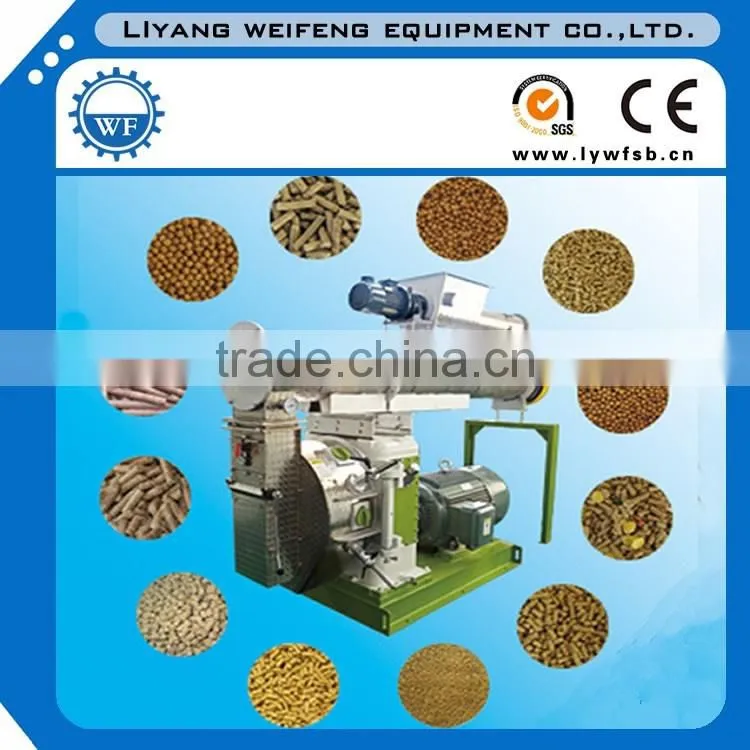

Help CenterAnimal Feed Pellet Mill/animal Feed Pellet Making Machine for Sale Best Price
Related Products
-
Top Quality Fish Feed Pellet Making Machine Line for Sae With Factory PriceUS$ 5,750 - 29,210MOQ: 1 Set -
China Animal Feed Hammer Crusher Price Hammer MillUS$ 2,000 - 20,000MOQ: 1 Set
-
China 5 Tons per Hour Floating Fish Feed Extruder MachineUS$ 2,000 - 12,000MOQ: 1 Set
-
Manufactory Offer Top Quality Stainless Steel X46CR13 SZLH/MZLH Pellet Mill Die With Long Using LifeUS$ 500 - 2,500MOQ: 1 Set
-
Manufactory Offer Top Quality Stainless Steel X46CR13 MUZL Ring Die With Long Using LifeUS$ 500 - 2,500MOQ: 1 Set
Animal Feed Machine
Ring die fish feed pellet mill
The whole machine includes a ring die and a set of rolls
Fish feed pellet mill with two layer conditioner
Can add steam to increase the capacity and the pellet quality
Automatic oiled to machine for running good
1 Driven with heavy- duty gearbox construction can produce continuously in most adverse condition.
2 The imported key elements are of high performance with long life and low maintenance cost.
3 The key parts are made of alloy steel to be very strong and malleable. Die is made of stainless steel.
4 Pellet machine is widely used in the best quality fish feed making.
Technical parameters
No |
Name |
Model |
|||||
SZLH25 |
SZLH32 |
SZLH35 |
SZLH40 |
SZLH42 |
SZLH508 |
||
1 |
Capacity (T/H) |
0.5-1.5 |
2-5 |
3-8 |
5-10 |
6-12 |
8-20 |
2 |
Power (KW) |
15 |
37 |
55 |
75/90 |
90/110 |
132/160 |
3 |
Screw feeder Power (KW) |
0.55 |
0.55 |
0.55 |
0.75 |
1.5 |
1.5 |
4 |
Conditioner Power(kw) |
2.2 |
2.2 |
2.2 |
2.2 |
5.5 |
5.5/7.5 |
5 |
Pellet Size (mm) |
2-12 |
2-12 |
2-12 |
2-12 |
2-12 |
2-12 |
6 |
Dimension (mm) |
1668*640*1465 |
2006*800*1801 |
2165*895*1940 |
2302*970*2105 |
3150*1100*2543 |
3200*1300*2795 |
7 |
Weight(t) |
1.5 |
2.1 |
2.5 |
2.8 |
3.1 |
3.5 |
