Help CenterBX 950 Wood Chipper
Related Products
Specifications
wood chipper:1.Motor is guaranteed 1 year.
2.strong and durable.
3.safe and reliable.
wood chipper
Helicoids disc cutting machine can cut logs,small dimension wood and brushwood under the DIA of 200mm.It can be applied into pulp mill,trees,paper mill,wood factory etc.Cutting machine is mainly formed by the host,coupling and chassis,motor parts,including cutting machine,cutter host by trim,feed and discharging port,etc.

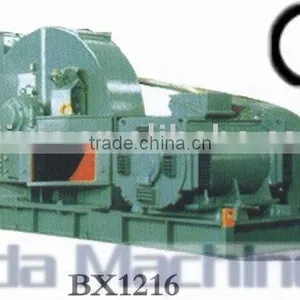

Model |
BX1216 |
Cutter diameter(mm) |
1600 |
Cutter speed(turn/minutes) |
625 |
Cutter number(slice) |
6 |
Wood length range(mm) |
20-35 |
Feeding mode |
horizontal |
Feeding mouth size(mm) |
584*383 |
Output(h/t) |
12-22 |
Motor power(kw) |
250 |
The biggest wood diameter can cutter(mm) |
300 |
Discharging mode |
up |
Weight (kg) |
8732 |
Size (mm)(long*width*high) |
3756*1855*2093 |
Model |
BX216 |
Cutter diameter(mm) |
650 |
Feed speed(m/minutes) |
33 |
Cutter number(slice) |
2 |
Wood length range(mm) |
30-35 |
Feeding mode |
horizontal |
Feeding mouth size(mm) |
540*240 |
Output(t/h) |
4-6 |
Motor power(kw) |
62 |
The biggest wood diameter can cutter(mm) |
160 |
Weight (kg) |
4000 |
Size (mm)(long*width*high) |
2000*1900*1250 |
Model |
BX215 |
Cutter diameter(mm) |
500 |
Feed speed(m/minutes) |
43.8 |
Cutter number(slice) |
2 |
Wood length range(mm) |
25-30 |
Feeding mode |
horizontal |
Feeding mouth size(mm) |
460*200 |
Output(t/h) |
1-1.2 |
Motor power(kw) |
32.2 |
The biggest wood diameter can cutter(mm) |
100 |
Weight (kg) |
2000 |
Size (mm)(long*width*high) |
3680*870*900 |
Model no. |
Capacity (T/h) |
Motor power(kw) |
Cutting Max. diamater |
Lengh of wood |
Feeding speed(meter/minute) |
Knife roller speed (turn/minute) |
Cutter number |
Incoming mouth size(mm) |
BX218 |
12-18 |
75 |
200mm |
25-35mm |
32 |
530 |
two |
700*330 |
