Geosynthetic Clay Liner (GCL) 4kg 5kg/m2 for Landfill and Basement Lining
US$ 1 - 25
MOQ: 10000 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
BPM geosynthetics
Model Number:
GCL
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4600g-6000g/m2 Natural Sodium Bentonite Material Clay Liner GCLUS$ 0.8 - 1.5MOQ: 1000 Square Meters -
Composite Geosynthetic Clay Liner Weaving Standard Reinforced GCLUS$ 0.8 - 1.5MOQ: 1000 Square Meters
-
Geosynthetic Clay Liner Composite With Hdpe GeomembraneUS$ 1.5 - 3.83MOQ: 5000 Square Meters
-
China Construction Sodium Bentonite Geosynthetic Clay LinerNegotiableMOQ: 1
-
Bentonite Waterproof Pad GCL Geosynthetic Clay LinersUS$ 2.1 - 2.35MOQ: 1000 Square Meters
Place of Origin
Shandong, China
Brand Name
BPM geosynthetics
Model Number
GCL

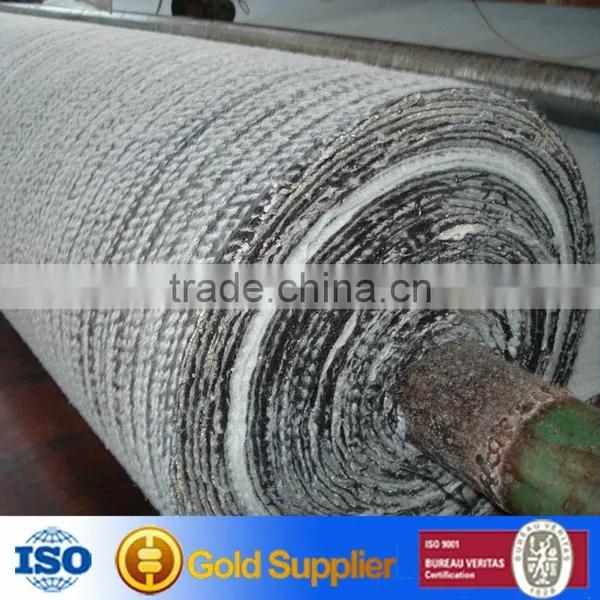

Geosynthetic Clay Liner (GCL) landfill and basement lining
Natural sodium bentonite Geosynthetic Clay Liner (GCL)
Our GCL is composed of 3 layers, the upper layer is nonwoven geotextile, while the lower layer is woven geotextile, natural sodium bentonite fills the gap between geotextile layers. It can enlong the using life of construction.
Technical Parameter:
| Inspection Item | Testing Procedure | Technical Index |
| Bentonite mass for unit area | ASTMD5993 | ≥5.5kg/m2 |
| Expansion coefficient | ASTMD5890 | ≥ 25mL/2g |
| Low temperature ductility | ASTMD5898 | No impact at -35°C |
| Thickness | ASTMD5892 | ≥6.4mm |
| Tensile strength | ASTMD4632 | ≥540N |
| Peel strength of concrete face | ASTMD4632 | ≥3.0 KN/ m2 |
| Peel strength | ASTMD4632 | ≥68N |
| Indicated flow | ASTMD5887 | ≤1 × 10-8m3/m2/sec |
| Hydrostatic pressure resistance | ASTMD5888 | ≥70 |
| Permeability | ASTMD5887 | ≤5 × 10-12cm/sec |
| Extension rate | ASTMD5896 | ≥20 |
| Puncture strength | ASTMD5894 | ≥635N |
Application:
| · Landfills | · Mud Pits |
| · Lagoons | · Canals |
| · Bund Lining | · Tank Lining |
| · Fish Farm Lining | · Roof Lining |
| · Waste Water Pits | · Ponds and Reservoirs |
| · Dams | · Floating Covers |
| · Vertical Cutoff Walls | · Hydraulic Structure |
| · Basement Lining | · Drip Irrigation Ponds |
