Specifications
sea water protein skimmer1. 1- 200T/hr capacity
2. handy installation
3. easy to operate
4. bubble
150T/Hr Water Treatment Fish tank protein skimmer
10-200T/h Protein Skimmer
Synopsis
Netech’s Protein Skimmers is our latest product, which has special structure, low in energy consumption, high in efficiency. Its Material is engineering plastics PP .These series products can be used to reduce the physical and chemical gels. It used the role of adsorption of surface tension of the bubble to enrichment and separation organic, removal the colloidal suspension, cellulose, protein, bait and faces and other organics in the wastewater. Meanwhile, the protein separator can be used as an ozone mixing tower, which can separate protein and use ozone to do the disinfections.

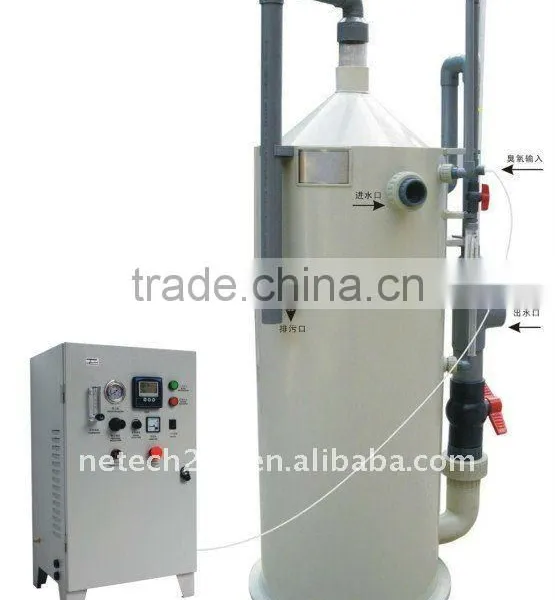

Component parts:
Water input, PDO air intake device, mixing chamber, collecting pipe, sewage disposal, ozone adding device, water output, liquid level etc.
Operational principle
First, water enter from the bottom of Protein Skimmer, “S” shape water stream, water moving up and then roll down to the water outlet;
Second, using the PDO device for producing bubble, and it enters into the mixing chamber with water together, liquid and air fully mixing in water when the water is rolling then reaches to the water outlet, water goes out from the bottom, but the not dissolved & suspended particles are gather in the surface of micro-bubble, then enter into the collecting pipe, coming out from the sewage disposal;
Third, treated water coming out from the main water outlet, water outlet valve can adjust the liquid level of Protein skimmer.
Specification:
Model |
Water flow rate (M3/Hr) |
Size (mm) |
NT-FPS-10 |
10 |
Dia 450×1550 |
NT-FPS-15 |
15 |
Dia 520×1800 |
NT-FPS-20 |
20 |
Dia 620×1800 |
NT-FPS-30 |
30 |
Dia 700×2100 |
NT-FPS-40 |
40 |
Dia 700×2400 |
NT-FPS-50 |
50 |
Dia 780×2400 |
NT-FPS-60 |
60 |
Dia 850×2400 |
NT-FPS-80 |
80 |
Dia 920×3000 |
NT-FPS-100 |
100 |
Dia 1050×3000 |
NT-FPS-120 |
120 |
Dia 1110×3000 |
NT-FPS-140 |
140 |
Dia 1180×3100 |
NT-FPS-150 |
150 |
Dia 1250×3100 |
NT-FPS-160 |
160 |
Dia 1300×3100 |
NT-FPS-180 |
180 |
Dia 1320×3100 |
NT-FPS-200 |
200 |
Dia 1350×3500 |
Product Features
Instead the using of Venturi, Booster pump, low power for saving energy.
Using the collecting pipe, no need to clean, for saving water.
PDO air intake device produces abundance air bubble, for high separate efficiency.
Using two ways water stream design, for high air-liquid mixing result, high separate efficiency.
Trouble-free design, long service life but free maintenance.
Product Functions
Removing organism such as night soil, colloid etc, for reducing the load of biological treatment and ensuring the water quality.
Increasing the dissolved oxygen in water, for improving the biological treatment efficiency.
Removing the harmful air in water, stabilize the PH in water.
Mixing ozone in water also has the function of sterilization, disinfect ion and remove algae in water.
Product Appliance
Fresh water & Seafood cultivating factory
Fresh water & Seawater hatcheries
Oceanopolis, aquarium ,aquaculture ,fishing farm etc
Swimming pool water treatment
Sewage water treatment, and the lines used for ozone mixing in water
Pre-Installation
Assemble pipe fittings of protein skimmer in accordance with Structured chart.
Water inlet pipe connect with Water pump or under pressure water pipe, Then Artesian water flow out of water outlet pipe .
Sewage drain outlet connected with pipes to the drainage channel
Locate protein skimmer in leveling and solid ground
Build roof for mounting location to avoid direct sunlight
Water outlet pipe shall not exceed the water outlet , and pipeline should not be too long
When ozone inlet connects with ozone pipe, ozone pipe should not be too long and installed with a check valve.
Operation declaration
Debugging specification
Before debugging, First of all, Close all valves up; Open water pump valve, air intake valve, water outlet valve and start the water pump; After water began to flow out from water outlet, turn slowly air intake valve down with air flow in a rated range. Turn slowly of water outlet valve down to maintain the water level near the index line of liquid level. Then observe the phenomenon of collecting cup:
A.If the transparent collecting tube’s bubbleis in a slowly climbing state,When Sewage is discharge, Bubbles have a little water content and attached with a lot of dirt, indicating the device entered a normal operation.
B. If the transparent collecting tube’s bubbleis in a fast climbing state, ,When Sewage discharge , bubbles have excessive water ,Then it is required to open water valve up appropriately, to lower water level,Until the emergence of the phenomenon described in A state;
C.If the transparent collecting tube’s bubble climb too slowly ,Dirt can not be discharged,Then it is required to turn down water valve appropriately,to raise the water level until the emergence of the phenomenon described in the state until the A
In the process of regulation of gas flow and water level, waiting for 1-2 minutes until equipment is stable after each adjustment, then observe the working phenomenon. If not up to a standard operation condition, then make the readjustment. According to different water quality, Running water level’s height and the rate of sewage overflow are slightly different.
Working instruction
After finished equipment’s debugging, running under same water environment, just start the pump, no need to re-adjust water valve and air intake valve. If equipment is running unstable, make a fine-tuning on this two valves.
According to the on-site water quality, transparent bubble tube and sewage drain pipe should be periodically removed for cleaning to ensure separation efficiency
Equipment used with ozone machine, adjust air intake flow in the case of ensure the ozone input
Attentions
Never install water outlet pipe higher than equipment’s water outlet
Transparent collection tube and bubble outfall pipe must be regularly cleaned, or after dirt hardening, will reduce the efficiency of protein separation
Open the emptying valve of mixing chamber to drain water away of equipment when Long term non-use
Packing List
No. |
Product name |
Quantity |
1 |
Mixing NTamber |
1set |
2 |
Transparent Collection Tube |
1set |
3 |
Bubble outfall pipe |
1set |
4 |
Air Intake pipe |
1set |
5 |
Water outlet pipe |
1set |
6 |
Water valve |
1piece |
7 |
Liquid level pipe |
1set |
8 |
Relief pipe |
1 set |
9 |
Water pump |
1 set |
10 |
Pipe clip |
1 passel |
11 |
Gas meter |
1 piece |
12 |
Screw |
1 passel |
