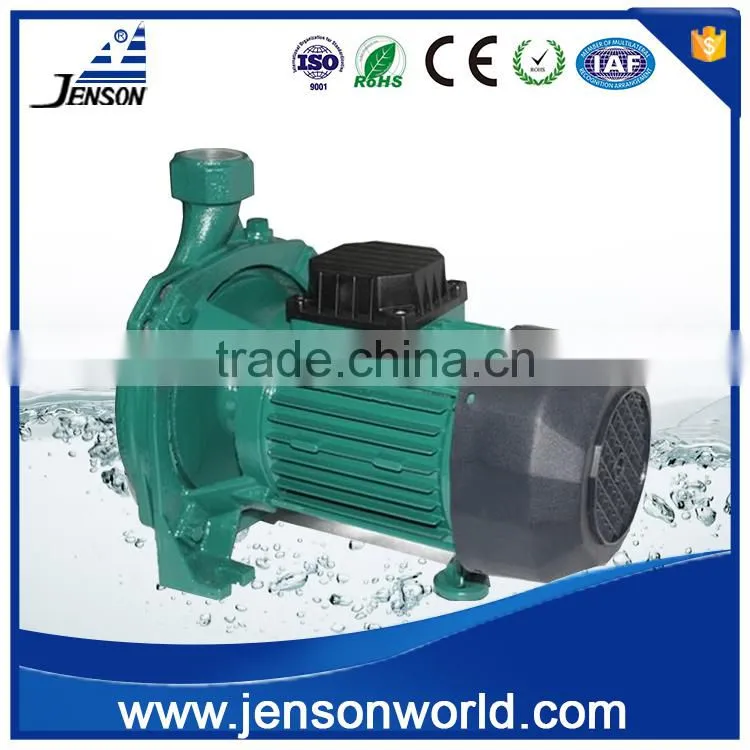

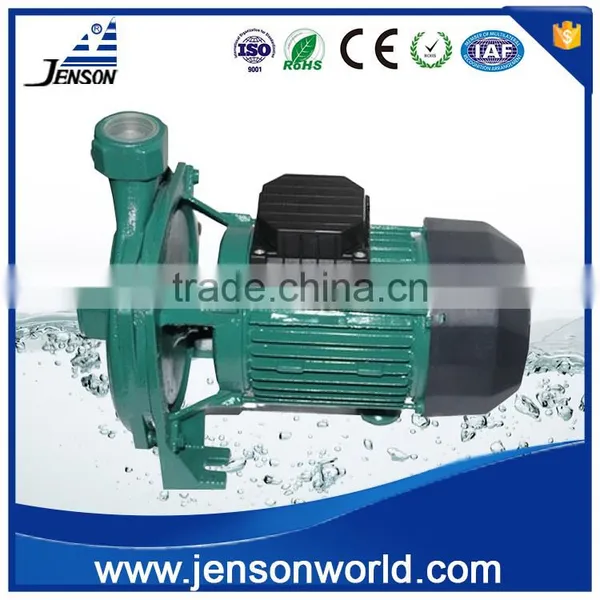

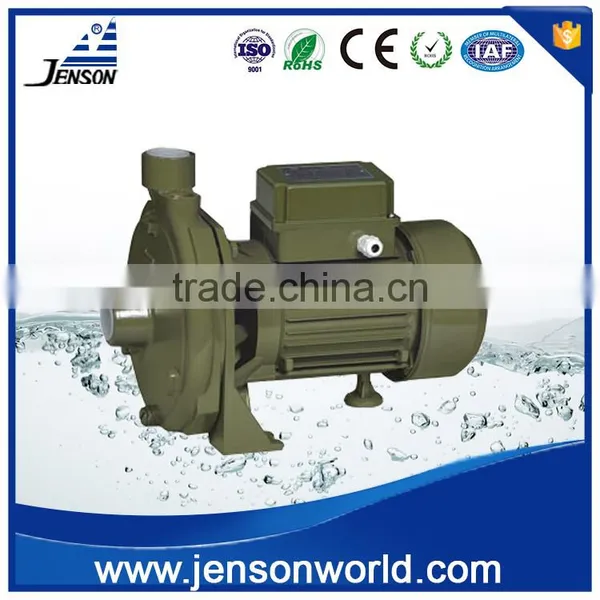

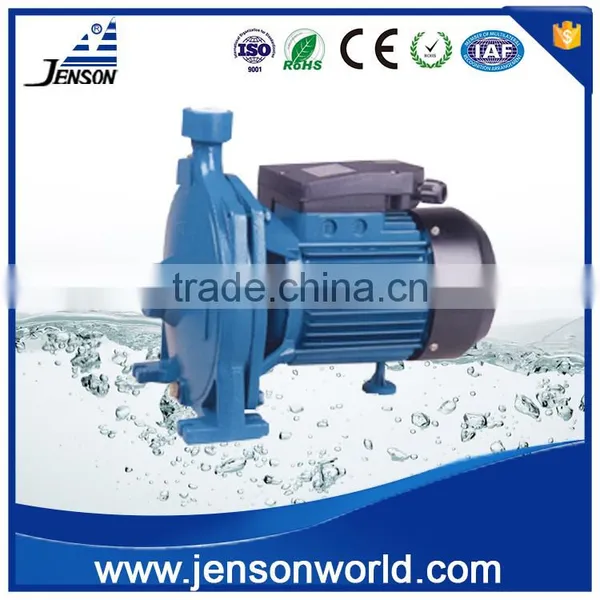

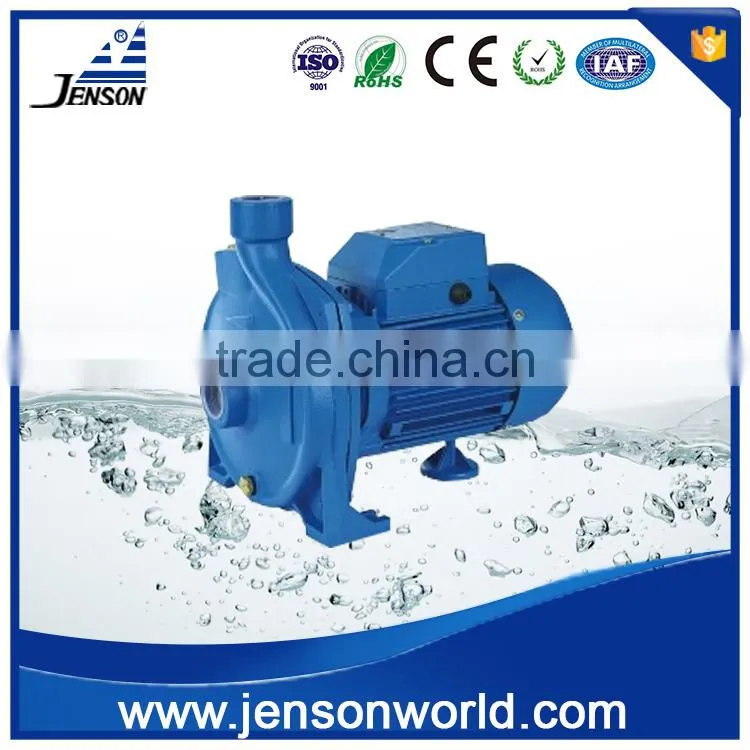

Jenson CPM series pump surface water pump
* Environmental protection, beautiful appearance,convenient installation 110V-220V new style Jenson CPM series pump surface water pump.
*Jenson CPM series pump surface water pump the motor and pump together, can be used as water suction equipment for household etc.
*This CPM pump is mainly used for house general industrial equipment, medical equipment, chemical equipment, ships, beverage, carpet and floor cleaning, water purification and water treatment equipment, vehicle cleaning, agriculture spray Increase pressure piping, air conditioning, cleaning cooling, coal metallurgical industries.
*Jenson CPM pump normal life is five years! Warranty time:
1year(Under normal use and service from the date of purchase
Technical data

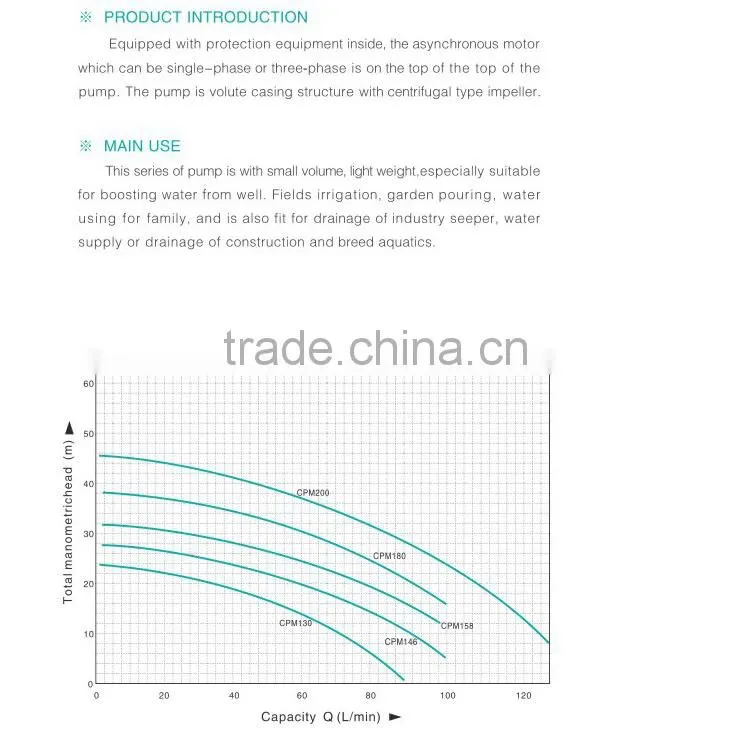

Performance
1)Max. suction:8M
2)Max. medium temperature+40°C
3)Max. ambient temperature+40°C
4)Max. pressure: 6 bar
Ambient temperature
1)permissible up to 40°C .
2)For water supply from household , for domestic use,for civil and industrial applications .
Power
1) Main power: 110V - 220V, 50Hz /60Hz.
2) as your requirments
Motor
1) Degree of protection: lp44
2) Insulation class: F

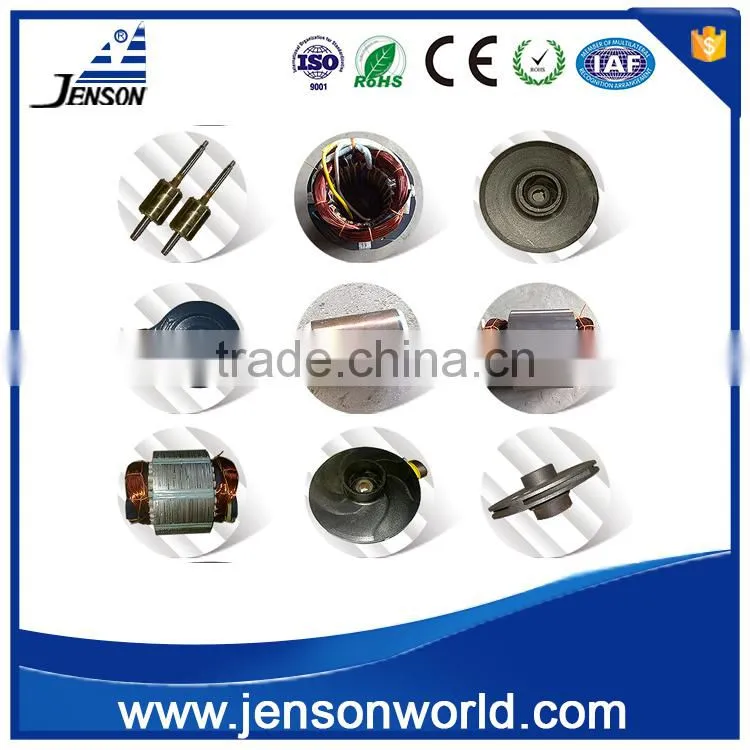

Construction materials
1)100% copper wire
2)Pump body: Cast iron
3)Motor housing: Aluminum
4)Impeller: Brass
5)Front cover: Aluminum
6)Mechanical seal:
7)Shaft:45#steel/ stainless steel
Mounting positions
1)The motor and the pump united as one, working on the water, more reliable.
2) No special requirements for the well casing and lifting pipe. (It can work in Steel tubular well, lime well, earth well etc. Within the reasonable pressure range, steel tube, rubber tube and plastic hose can be used as lifting pipe.)
3)Easy to install, operate and maintain, less space demand, no pump house needed
4)Simple structure, less cost ,equip with start control box or digital auto-control box , household water pressure booster pumps are designed by casing stressed .
Pump equipment
1) CE, SGS, RoHS certificated.
2) 100% copper wire, stainless steel shaft, brass/cast iron outlet.
3) Wide voltage range design, single-phase and three-phase.
4) Strict complete testing for each product.
5) Dedicated sales representative .
6) 1 year warrenty , according to our general sales conditions .
Jenson CPM series pump surface water pump
* Jenson CPM pump & surface water pump be packed in strong carton with two foams fixed , 1 Pcs/ctn or as your requirements .
* Jenson CPM water pump can be shipped by sea , air , international fast express after 30% deposit in advance,the rest T/T against copy of B/L.
* The superior manufacturer in Jenson CPM158 household surface pump self-priming water pump with 12 years of experience in this field, welcome OEM
* The confident and the best & reliable supplier for you .
* 24 hours service , reply timely .
* Devote Provide you 100% satisfaction for customer from pre-sale to after-sale .
* Best quality , best price , best service , all the best . Experienced worker and design team, strict quality control system .
