Rotary solid liquid separation drum filter for fish farming
1. Rotary solid liquid separation drum filter for fish farming is composed by four parts: house, roller, back washingsystem and electric control system.
2 stainless steel mesh to remove & separate suspended solids.
3. Under the low hydraulic resistance, high flow velocity, intercept live solid.
4.With automatic cleaning function, stable operation and unattended
Model No. |
Capacity |
Filter Fineness |
Voltage |
Power |
Inlet |
Outlet |
Size |
(m3/h) |
(μm) |
(V) 50Hz |
(kw) |
(mm) |
(mm) |
(mm) |
|
ZH-PM-20 |
20 |
20~200 |
380 |
0.73 |
Φ110 |
φ110 |
950*1050*860 |
ZH-PM-40 |
40 |
20~200 |
380 |
0.93 |
φ140 |
φ140 |
1160*1050*860 |
ZH-PM-60 |
60 |
20~200 |
380 |
1 |
φ160 |
φ160 |
1200*1250*1050 |
ZH-PM-80 |
80 |
20~200 |
380 |
1.25 |
φ160 |
φ160 |
1500*1250*1050 |
ZH-PM-100 |
100 |
20~200 |
380 |
1.37 |
φ200 |
φ200 |
1500*1600*1300 |
ZH-PM-150 |
150 |
20~200 |
380 |
1.55 |
φ250 |
φ250 |
1950*1600*1300 |
Rotary solid liquid separation drum filter for fish farming
The suspended solids be washed into the dirt collection tank and then exhausted from outfall by high pressure water. When the mesh is clean, it will improve the filter permeable capacity and reduce the drum water level, when the water level reaches to the fixed low level, back washing pump and roller motor stop working, and drum filter will start the new working recycle.
Install Description
- Drum filter can be connected with pipe, or supplied water by water tower or water pump (can install the valves on inlet and outlet pipes to control inflow and outflow)
Drum filter Should be put smooth, cannot rain and long-time direct sunlight
Please make sure there an height different between sewage outlet with sewage pipe. So the sewage can be discharged in time.
Please make sure there an height different between outlet with water delivery pipe, to make sure a water flow speed.
Power Voltage: 380V, 50Hz, 3phase / 4 wires (wiring diagram as below)

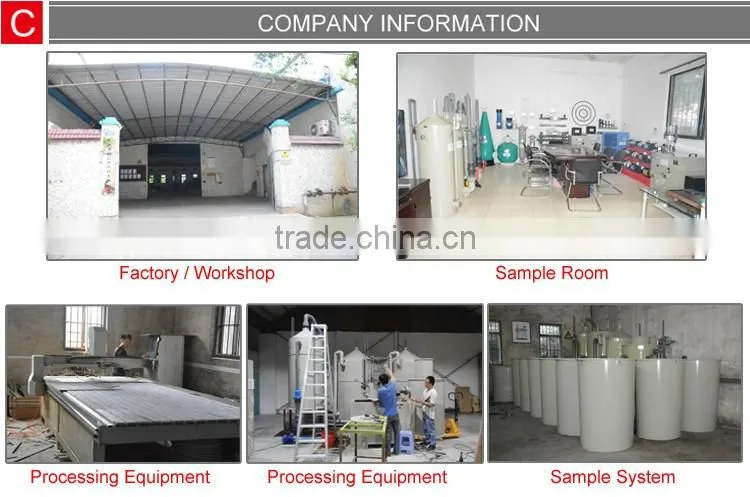

Guangzhou Zhonghang Environmental Technology Co., Ltd is specializing in Recirculating Aquaculture System (RAS), Aquarium and Raw Water Treatment System. We have developed into an integrated water treatment company which combined R&D, manufacture, installation, maintenance and sales together. And we have a group of capable technical personnel in the field of mechanical, electrical, automatic control, water quality monitoring, and aquaculture
technology and so on.
Based on our professional and environmental concept, we will always to design the most economic solution to you, make the largest profits with the smallest investment, and win the wonderful future with you!
PP Fish Tank, Rotary Drum Filter, Protein Skimmer, Biological Filter, UV Sterilizer, Residual Ozone Remover, Degassing&UV Sterilizer Device, Oxygen Generator, Ozone Generator, Sand Filter, Water Pump, Water Monitoring System.
