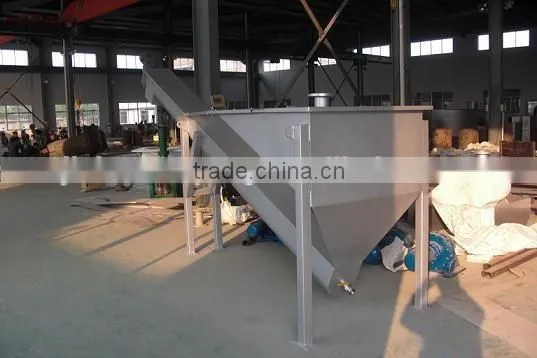

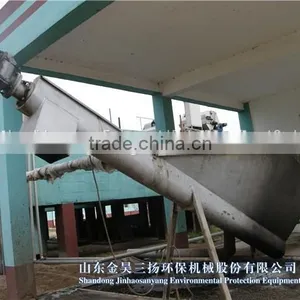

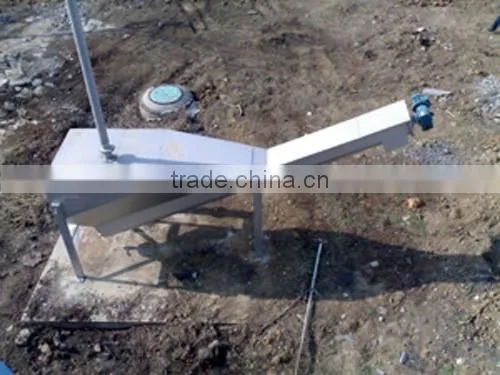

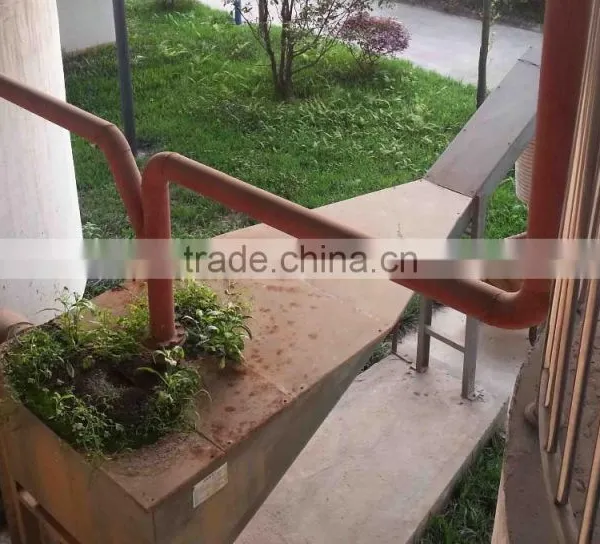

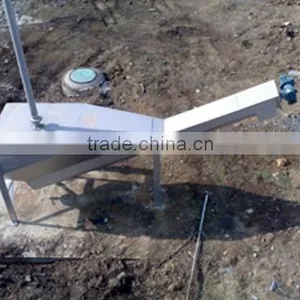

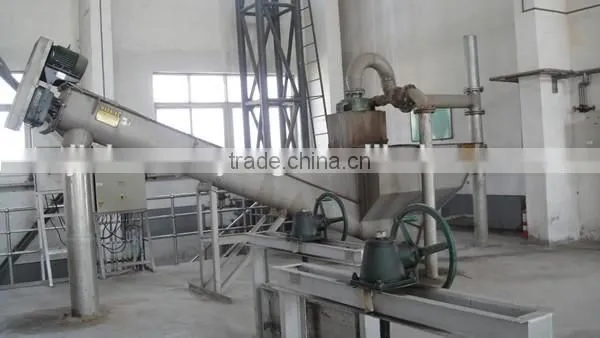

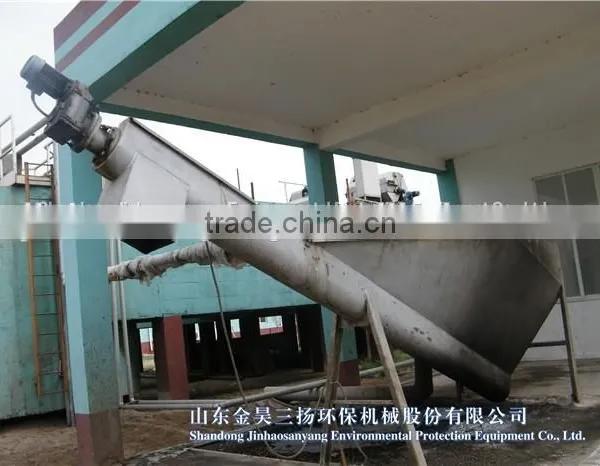

XSF type sewage treatment plant grit water filtering spiral separator
XSF type spiral sand water separator for sewage treatment plant, will sink sink sand pool sand pool of water from sand to split water sand mixture.
Features
This product is in digestion and absorption of the introduction of products, based on the introduction of products in China, according to the use of the design improvement. To resolve some foreign product line change inconvenience and article spiral axial position can not be adjusted defects. The characteristics are as follows:
1) separation efficiency of 96% ~ 98%, can separate particles diameter > = 0.2 ram particles
2) no water bearing, line for fast loading type article, easy maintenance.
3) spiral axial position can be adjusted, easy to adjust its tail and the security clearance. The box
Structure and working process
XSF series sand by without shaft screw water separator, lining, u-shaped slot article, water tank, guide plate, water dam and drive equipment etc
Sand mixture water from the top end input water tank, separator mixture of moderate to larger such as sand will be deposited on the bottom, in the spiral groove type, driven by the sand buy U the groove bottom ascension, leave after liquid surface goes on from a distance, to continue in full by the row after dehydration sand sand discharge to mouth filled with sand sand barrels, and after the separation from water is being exhausted from port and sent to overflow into the pool in factory.
Technical parameters
Model |
XSF-320 |
XSF-360 |
XSF-420 |
Treatment quantity L/S |
15-20 |
20-27 |
27-35 |
Motor power W |
0.37 |
0. 75 |
0.75 |
speed |
4.8r/min |
||
1. How to buy your interested products?
ANS: You can provide us the water sources, water quality, flow rate and ground area, material requirements about your project (More details, please contact us).
2. How to pay?
ANS: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.
3. What is the delivery time?
ANS: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.
4. How to pack the products?
ANS: We use standard package. If you have special package requirements, we will pack as you required, but the fees will be paid by customers.
5. How to install after the equipments arriving destination?
ANS: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.
6. How long is the validity?
ANS:The validity is 12 months from B/L date.
