Home > Manufacturing & Processing Machinery > Plastic Machinery > Injection Molding Machine > Newly-designed Twisted Rope Machine for Sale

Newly-designed Twisted Rope Machine for Sale

Name: Newly-designed Twisted Rope Machine for Sale
Brand: Haidai
SKU: 139754693

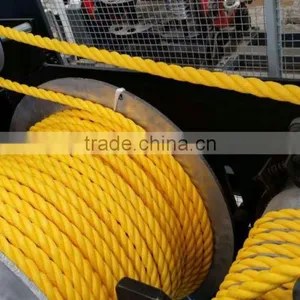

Newly-designed Twisted Rope Machine for Sale thumbnail-1

Newly-designed Twisted Rope Machine for Sale photo-1

US$ 8,000 - 10,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Product Type:

Plastic Rope

Place of Origin:

Shandong, China

Contact Supplier Request Quote Chat Now

Taian Haidai Rope Machinery Science Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Product Type Plastic Rope

Place of Origin Shandong, China

Brand Name Haidai

Model Number HDTM-M55

Voltage 380VAC,3 Phase

Power(W) 11KW

Dimension(L*W*H) 9.0X2.2X2.3m

Weight 2000kg

Certification CE

Warranty 1YEAR

After-sales Service Provided Engineers available to service machinery overseas

A professional manufacturer of rope & rope machine for 10 years

We can supply " the Complete Project for the ROPE MAKING UNIT."service.

PP extruder (pp fiber)----Ring twister (strand)---Rope Making Machine (twisted rope, braided

rope)---Packaging spool winder, ball winder, hank machine, coil machine)

Twisted rope machine

1. Description

All kinds of specification of easy operated twisted rope machine for 3 strand or 4 strand can be made by this

machine. It is suitable for rope production of different material, such as HDPE&PP monofilament, danline,

polyester,nylon, cotton and etc. This pp rope making machine is equipped with frequency converter, meter

counter, overtravel-limit switch and auto-stop device.It is easy to adjust the rope tensility and change the

direction of twist and lay length.

2. Technical parameters of twisted rope machine

Model	HDTM55
Rope Size	12mm--20mm, 3-strand or 4-strand
Rope Lay	32mm—78mm
Motor	Power		11KW
	Motor		380V,3-phase,50HZ
	Inverter		1
Size of Take-up Bobbin(OuterXInnerXHeight)	Φ480XΦ138X255mm
Pay-off Bobbin	8X3, Bobbin Size Φ175X430mm
Machine Dimension	9.0X2.2X2.3M
Outputcapacity	12mm	1600kg,24hour
	14mm	1840kg,24hour
	18mm	3000kg,24hour
	20mm	3500kg,24hour

3. ROPE TWISTING MACHINE PERFORMANCE &ADVANTAGES:

High Productivity
Less than Maintenance.
Easy Operation System
Rigid Construction
Power transmission by timing belts.
Auto Stop after yarn breakage to control wastage.
Digital length counter meter.
Door Sensor
A/C drive
Direct Coiling Head winding

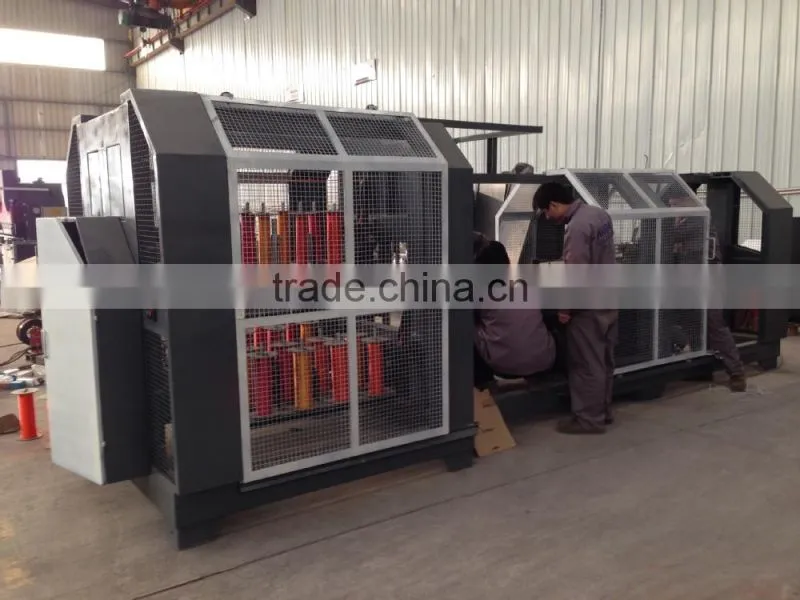

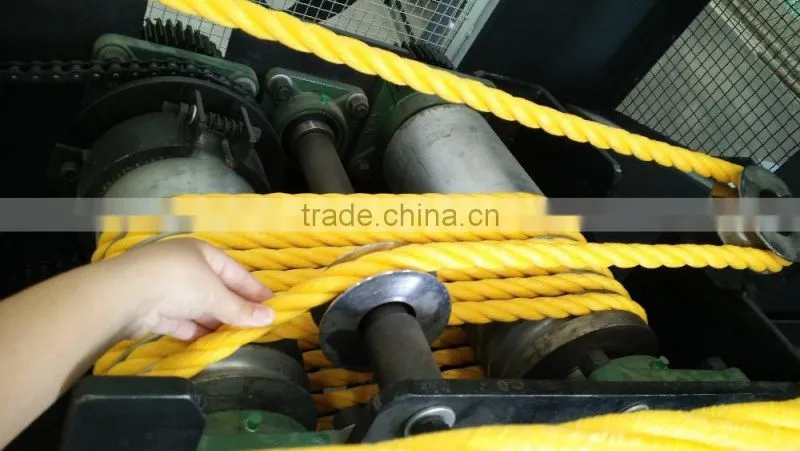

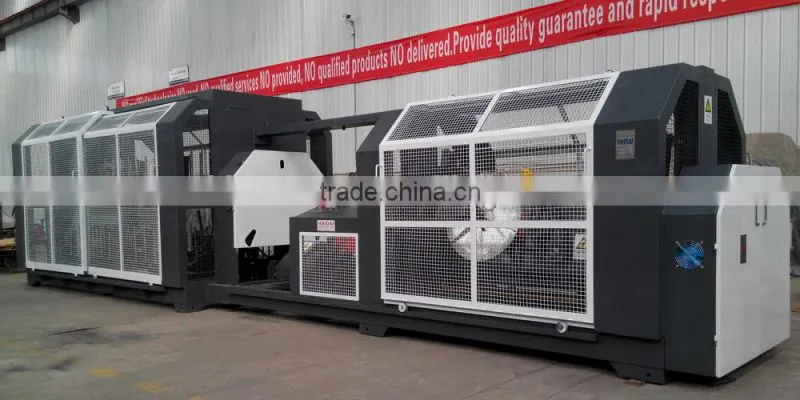

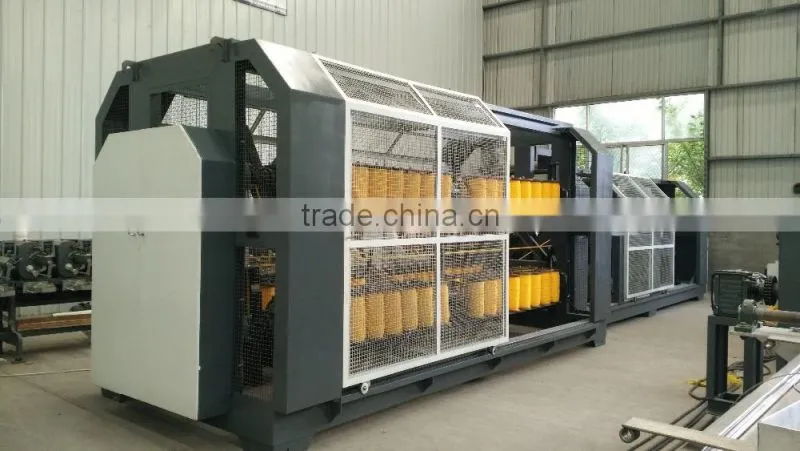

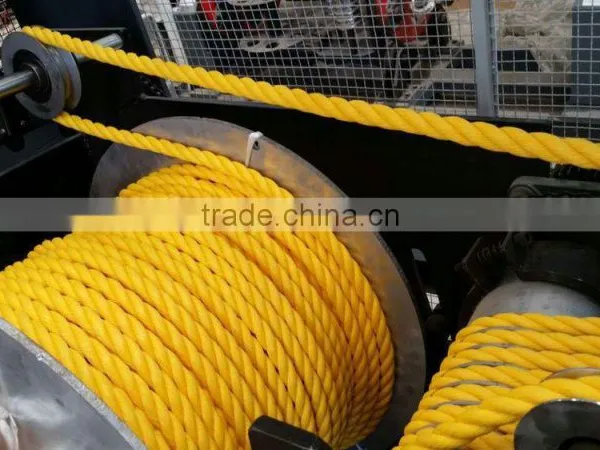

4. Picturer Show of twisted rope machine

5. Our service

Installation Services

Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.

Clients Traning Services

We can train your staff to use your equipment systems properly.It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.

After Sales Service

We offer the Preventative Maintenance and After Sales Service. For we strongly feels about the importance of supporting our customers and the product solutions we provide.Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.

6. Our garden--style factory

If you want to buy rope machine, please contact us!:
