Grain conveying rubber belt conveyor system price
Taian Shelley Engineering Co., Ltd is one of the biggest bulk material handling companies in China.We provide the clients the best possible solutions based on the study and our expertise. It's our aim to become a lifelong partner with our client in their growth.
If you have a headache with bulk grain transportation, do not hesitate to contact me, we will be happy to provide you with a free design and detailed quotation. Hope our products could
highly improve the efficiency of your operations.
We supply Bucket elevator, drag conveyor, belt conveyor, screw conveyor for grain
handling.
Application
Belt conveyor is a kind of safe conveyor for grain transporting; It will do less damage to the material and will protect the material. TDSG Belt Conveyor is a kind of constantly conveying machine, widely used in industrial department. It can be applied to conveying various bulk material,like particle, powder of 0.5~2.5t/m³density, also to goods of pieces or packages. It can be used with other conveying machine. With simple structure, it is safe and easy maintaining ,which can be widely used in flour mill, feed processing mill, oil and fats mill, starch mill,mine and chemicals etc.
Belt conveyor structure
A Belt Conveyor consists of a body of a metal frame with pulleys at either end and bed of rollers in between.Belt is looped around each pullies. When one of the belt is powered by electrical motor, the belting slides across the rollers there by moving the product on the top of the belt. We have technical capabilities to design, manufacture and commission belt conveyors with various bulk densities, moistures, atmospheric conditions and corrosive properties.We manufacture belt conveyors with capacities up to 200TPH.
| Different Types Of Belts | First Type | |
|
Belt is made os PVC or EP, it's anti-wear material. Belt is smooth surface. Below picture show the belt support base. More details pls ask: Miranda, skype: shelley9015 |
|
|
|
| Different Types Of Belts | Second Type | |
|
Belt is made os PVC or EP, it's anti-wear material. There are lines on the belt, Below picture show the belt support base.
More difference and function of this belt conveyor pls ask:
Miranda, skype: shelley9015
|
|
|
|
Models of belt conveyor:
Model |
Capacity |
Belt Width |
Belt Speed |
t/h |
mm |
m/s |
|
TDSG30 |
30 |
300 |
2.5 |
TDSG40 |
50 |
400 |
2.5 |
TDSG50 |
100 |
500 |
2.5 |
TDSG65 |
200 |
650 |
2.5 |
TDSG80 |
300 |
800 |
2.5 |
TDSG100 |
500 |
1000 |
3.5 |
TDSG120 |
800 |
1200 |
3.5 |
Advantages of rubber belt conveyor:
1. Stable running, low noise and long service life;
2. Thread rod type take-up (tensioner) can be fitted at the tail so as to meet various conveying requirements;
3.Flexible for multi-point feeding and discharging;
4. Equipped with an alarming device for material blockage;
5.Devices for speed loss and chain breakage protection are optional;
6.Widely used in port, dock, grain depot and the malt, flour, brewery, feed and chemical industries for horizontal bulk material conveying.
7.Move to anywhere. more convenience!

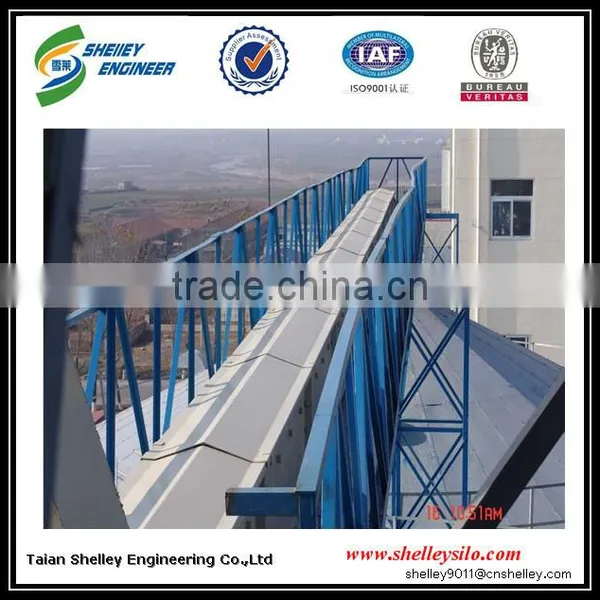

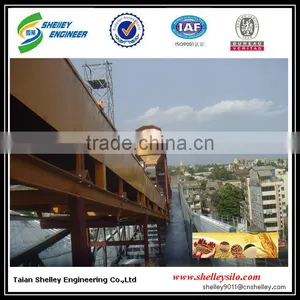

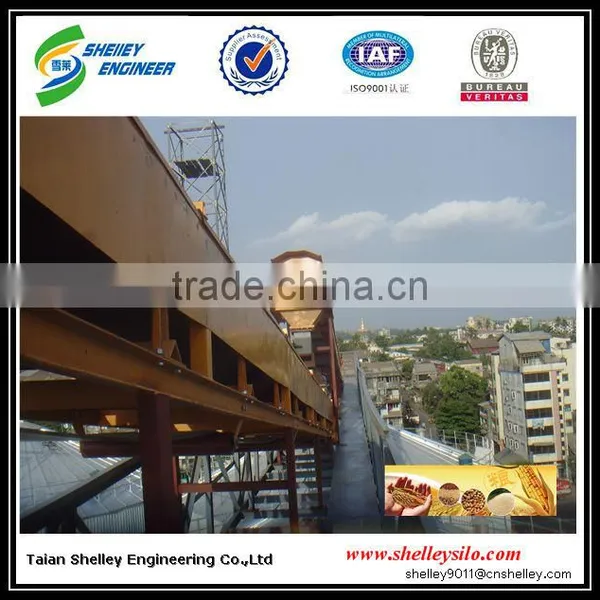

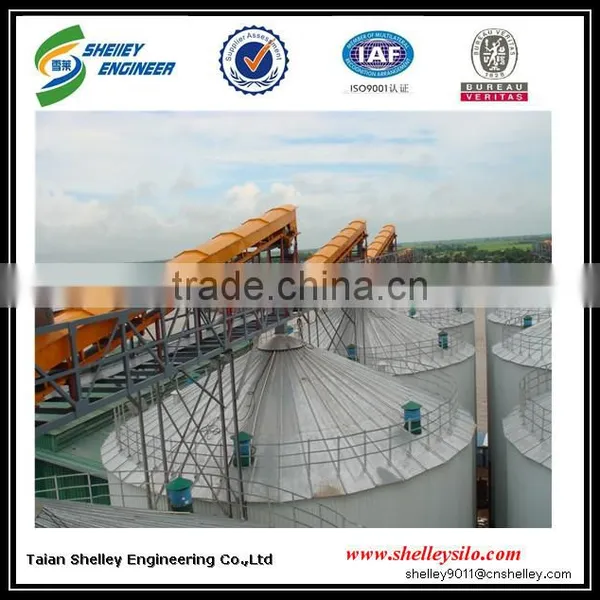

Rubber belt conveyor used in silo project
Certificate
| Contact Person: | Miranda Feng |
| Skype: | shelley9015 |
| Telephone: | 0086-538-5367256 |
| Mobilephone: | 0086-18653877125 |
| Fax: | 0086-538-5367222 |
| Address: | Steel Market Area,Daiyue Area,Taian city,Shandong Province, China |
| Zip Code: | 271000 |
