Specifications
manual compressed earth brick block making machine1.Machine power:19
2.Vibration frequency:2800~4200
3.Molding cycle:15-20

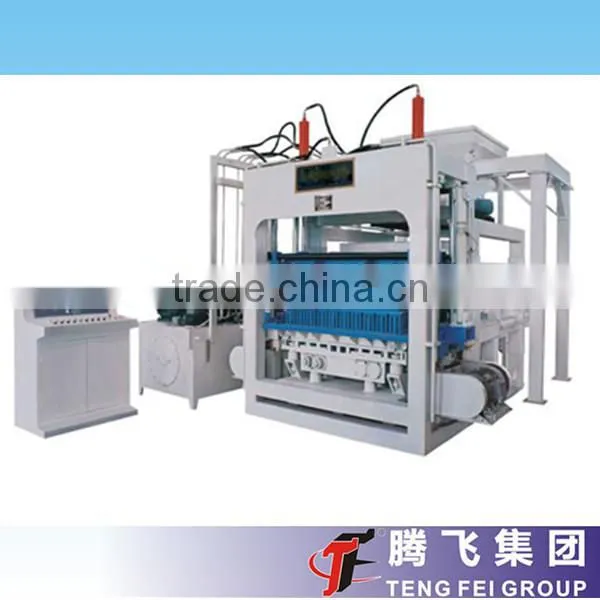

QT5-15 manual compressed earth brick block making machine for sale
1. Introduction of QT5-15 manual compressed earth brick block making machine
QT5-15 concrete block making machine is suitable to produce a variety of bricks including fixed standard brick, hollow block, solid brick, paver, interlock brick and other concrete bricks. Adopting sub-storage device and independent storage hopper, this machine can overcome the liquefaction of concrete defects in advance, and ensure the quality of the finial products. It can automatically operate the whole set, from material feeding to finish products output.
2. Remarks-QT5-15 manual compressed earth brick block making machine
- Customized color is available based on previous notice.
- If needed, the seller can help the buyer to handle shipping and insurance.
- Installation & commissioning is available based on the clients’s requirement.
3. Features of QT5-15 manual compressed earth brick block making machine
- Special design for material storing and dividing system: ensure the exactness of material supply, reduce the situation of uneven density, and supplying quantity caused by the internal press and other external effects, make sure that material is used up as it is been supplied, insure the high quality of the products.
- Multi-source vibration system: In order to adapt the design of large-scale machine. Applicable to large work table, set computer-controlled, hydraulic-driven, a number of technologies such as mechanical and electrical synchronization. The use of full-synchronous mode of vibration, vibration adjustable hit power, the frequency can be adjusted according to different technological requirements, feeding low-frequency, high-frequency shape, exciting force can be adjusted according to different raw materials to achieve the best effect.
- Control System: Digital displacement sensor with an effective integration of technology to enable the accurate and reliable action, suitable for application in busy complex working conditions. System Acquisition Process hundreds of prepared, technologically advanced, easy to operate.
- Automatic diagnosis system: automated random computer fault diagnosis system, prompted the police, in favor of timely troubleshooting. Combination of remote control systems, through the telephone line connection, to achieve control of remote monitoring, diagnosis.
4. Main technical parameters
Dimension of host machine |
3000*1900*2660mm |
Power of host machine |
26.65kw |
Weight of host machine |
4.5t |
Viberation force |
45-55kn |
Molding area |
1060*630 |
Models of mixer |
JS500 |
Water consumption |
5-6t |
Pallet size |
1130*600*30mm |
Workshop |
200 sq . m . |
|
|
5. Theoretical production capacity
Size (L*W*H) |
Pcs/Mould |
Pcs/ Hr |
Pcs/ 8Hr |
400*100*200 |
11 |
1980-2310 |
15840-18480 |
400*150*200 |
6 |
1080-1260 |
8640-10080 |
400*200*200 |
5 |
900-1050 |
7200-8400 |
400*250*200 |
4 |
720-840 |
5760-6720 |
230*110*70 |
26 |
4680-5460 |
37440-43680 |
Paver:200*100*60 |
18 |
3240 |
25920 |
Paver:200*163*60 |
12 |
2160 |
17280 |
1.Delivery time: 15 days after receipt of your deposit.
2.Payment terms: 30% T/T in advance, the left is paid (by T/T) before delivery.
3.Package:
1).Wire cables are used for fastening the machine on the trailer or inside the container.
2).Cork wood are placed in front or behind the machine to protect it.
3).Plastic film is covered on the machine as a rain-roof.
4).Crane is used during the whole
Why chose Henan Teng Fei ?
1.Teng Fei give priority to with construction company, during years of construction equipment, progress in practice and has strong practicability.
2.Our company has years of experience in project negotiation and can provide customers with effective business negotiations guidance to win project
3.in addition to providing equipment and technical training, we also provide free foam concrete project system solutions to help you get maximum benefit.
How long is the warranty ?
The warranty period is 12 months.
What services does it provide ?
1.pre-sale service: our company can provide technological guidance and formulate suitable equipment matching program according with your specific production requirements.
2.on-purchase service: our company can solve professional technical problems and other related issues for you.
3.after-sales service: our company provides that engineers available to service machinery overseas and equipment for life maintenance.
What is the Teng Fei’s basic philosophy ?
Henan Teng Fei Machine Manufacturing Co., Ltd. is a collection of scientific research, development, production marketing for the integration of manufacturing enterprise; The company execute principles “development is a competition philosophy” and take “efficient, pragmatic, cooperation, innovation “as beliefs.
Henan Teng Fei Machine Manufacturing Co., Ltd. is a collection of scientific research, development, production marketing for the integration of manufacturing enterprise; The company execute principles “development is a competition philosophy” and take “efficient, pragmatic, cooperation, innovation “as beliefs.
Teng Fei Group is a manufacturer of construction machine and mine machine, with more than 15 years experience, mainly produce concrete batching plant, AAC block line, stabilized soil mixing plant, dry mortar production line, cement production line, concrete mixer, concrete pump ,concrete truck, cement silo, crusher, ball mill, raymond mill, sand making line and so on.
