Specifications
PLD concrete batching machine1,High precision
2,High reliability
3,Smooth delivery
4,Low noise

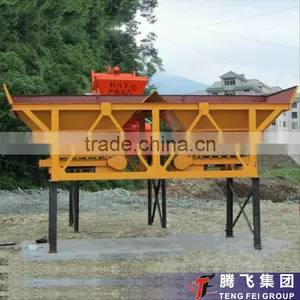

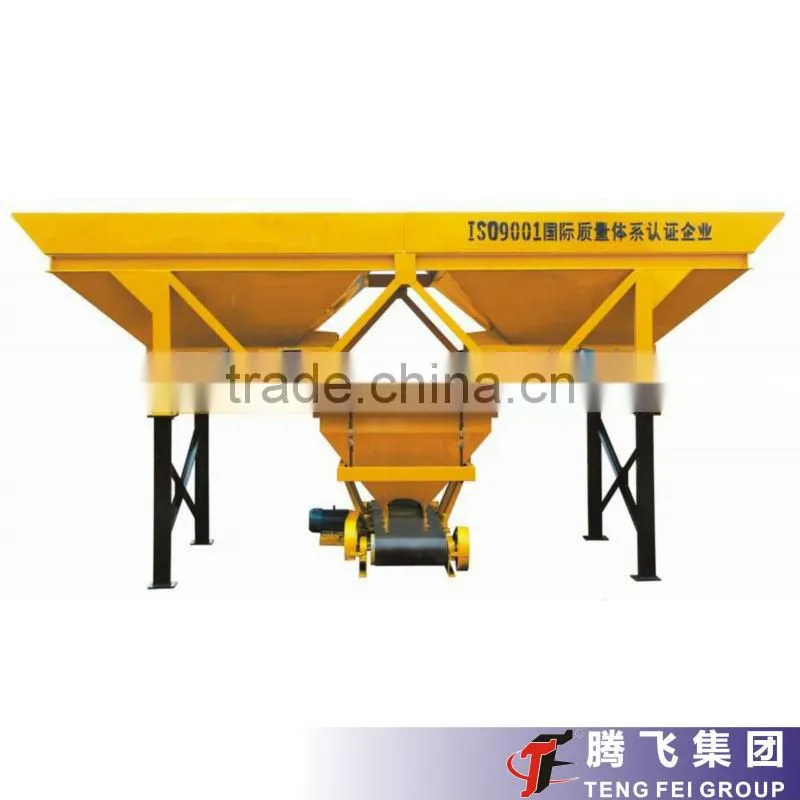

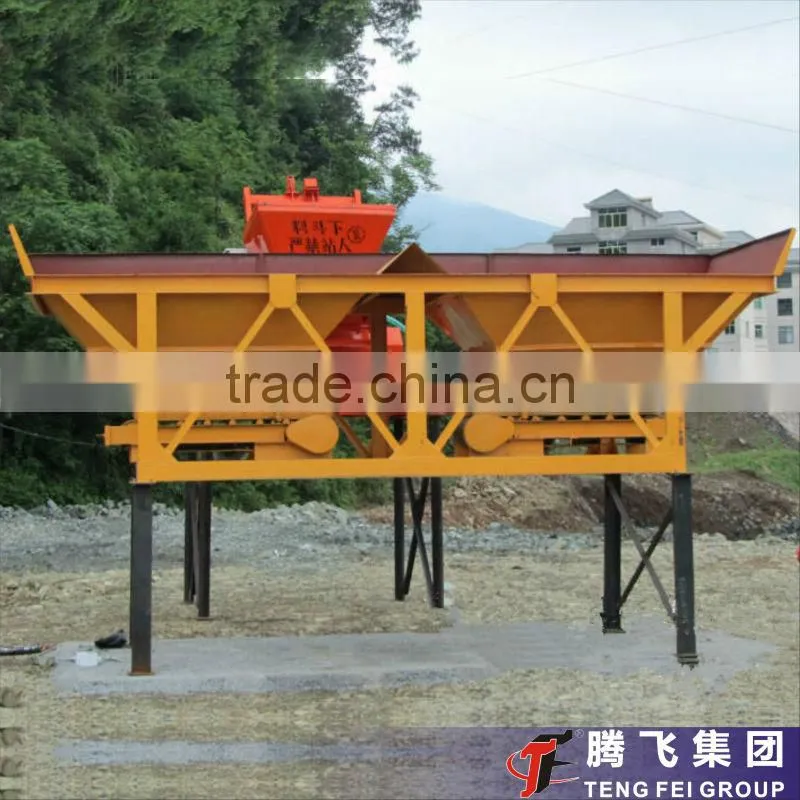

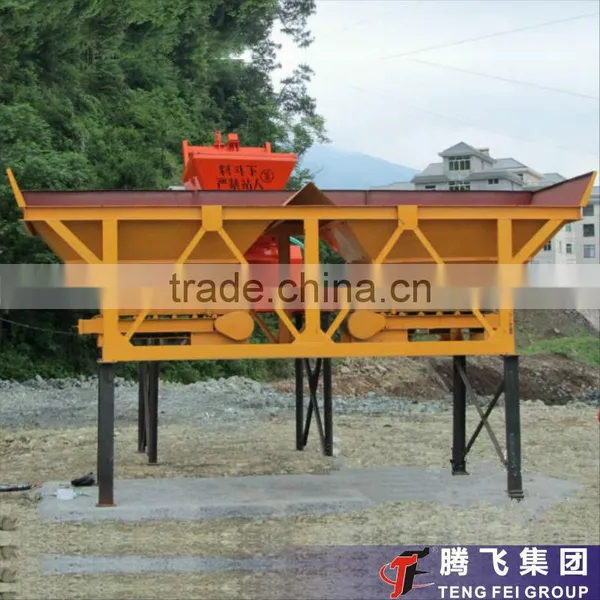

Professional production-PLD concrete batching machine PLD600 for sale
1, Introductions of PLD concrete batching machine
Concrete batching machine loading materials by loader or belt conveyor is automation equipment used for
quantitative distribution of materials, which mainly used in concrete construction industry to replace artificial
platform scale or volume measurement, etc .
2, Preponderance of PLD concrete batching machine
1) rough weighing or precision weighing, high precision
2) main fittings adopts international famous brand with high reliability
3) the reasonable overall structure , strong stiffness and beautiful
4) smooth delivery, ensure the normal feeding
5) weigh four aggregate at the same time, high efficiency
6) head of Belt has keep-off cover, effectively prevent splashing
3, Models of PLD concrete batching machine
PLD series Concrete Batching Machine Prices is a kind of equipment with automatically batching material on the
front desk and using mixer together. It can automatically finish the batching procedures of 3~6 kinds of materials
(second grade concrete) such as sand, stone, cement, according to user’s design.
These series products adopt electronic weighing, computer control, digital display, wired remote control operation,
and have such advantages as accurate weighing, high precision batching, quick speed, strong control function and convenient operation. After this series concrete batching machine combines with relative concrete mixer, different types and specifications combined concrete mixing plant can be formed.
PLD series of concrete batching machine includes: PLD800, PLD1200, PLD1600, PLD2400, PLD3200, PLD4800, etc.
4, Parameter of PLD concrete batching machine
Model of PLD series |
PLD600 |
PLD800 |
1200 |
1600 |
2400 |
3200 |
4800 |
Weighing hopper capacity (L |
600 |
800 |
1200 |
1600 |
2400 |
3200 |
4800 |
storage hopper capacity(m³) |
2*1.2 |
2*2 |
2*3 |
4*5 |
4*10 |
4*18 |
4*25 |
Production capacity (m³/h) |
30 |
48 |
60 |
75 |
120 |
160 |
280 |
Batching accuracy |
2% |
2% |
2% |
2% |
2% |
2% |
2% |
Maximum capacity(kg) |
2000 |
2000 |
3000 |
3000 |
4000 |
5000 |
6000 |
Variety of material |
2-3 |
2-3 |
2-4 |
2-5 |
2-5 |
2-5 |
2-5 |
Filling height(mm) |
1850 |
2430 |
2600 |
2900 |
2900 |
2300 |
2300 |
Speed of feeding belt |
1.25 |
1.25 |
1.25 |
1.25 |
1.25 |
1.25 |
1.25 |
Power (kw) |
3*2.2 |
3*3 |
3*3 |
5*4 |
11 |
15 |
18.5 |
Total weight(kg) |
1360 |
2300 |
2800 |
5600 |
8500 |
10500 |
14000 |
Outline dimensions (mm) |
3800*1400*2200 |
5400*1800*3010 |
6000*1800*3090 |
12000*2200*3260 |
10000*2200*4000 |
14500*3000*4600 |
15520*3900*5090 |
Why chose Henan Teng Fei?
1.Teng Fei give priority to with construction company, during years of construction equipment, progress in
practice and has strong practicability.
2.Our company has years of experience in project negotiation and can provide customers with effective business
negotiations guidance to win project
3.in addition to providing equipment and technical training, we also provide free foam concrete project system
solutions to help you get maximum benefit.
How long is the warranty?
The warranty period is 12 months.
What services does it provide?
1.pre-sale service: our company can provide technological guidance and formulate suitable equipment
matching program according with your specific production requirements.
2.on-purchase service: our company can solve professional technical problems and other related issues for you.
3.after-sales service: our company provides that engineers available to service machinery overseas
and equipment for life maintenance.
What is the Teng Fei’s basic philosophy?
Henan Teng Fei Machine Manufacturing Co., Ltd. is a collection of scientific research, development, production
marketing for the integration of manufacturing enterprise; The company execute principles “development is a
competition philosophy” and take “efficient, pragmatic, cooperation, innovation “as beliefs.
