Factory Price High Efficiency TDS6220 Rotary Sand Dryer
US$ 55,000 - 70,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
TF
Model Number:
TDS6220
After-sales Service Provided:
Engineers available to service machinery overseas
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Low Consumption Silica Sand DryerUS$ 10,000 - 30,000MOQ: 1 Set -
TDS625 Quartz Sand Drying MachineUS$ 10,000 - 30,000MOQ: 1 Set
-
8-10t/h Triple Cylinder Sand DryerUS$ 10,000 - 30,000MOQ: 1 Set
-
TDS625 Coal Fuel Three Drum Sand DryerUS$ 10,000 - 30,000MOQ: 1 Set
-
Small Scale Rotary Sand Drying MachineUS$ 10,000 - 30,000MOQ: 1 Set
Brand Name
TF
Model Number
TDS6220
After-sales Service Provided
Engineers available to service machinery overseas
Product Description

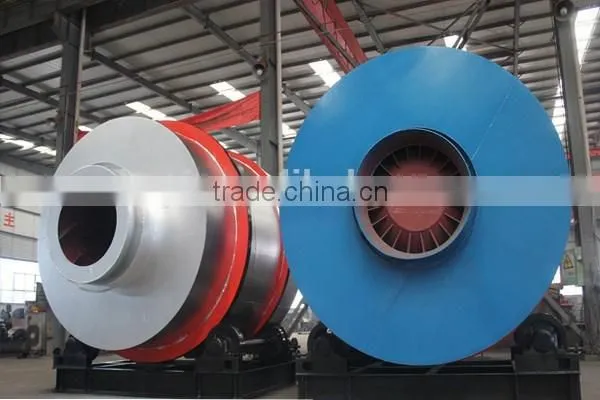

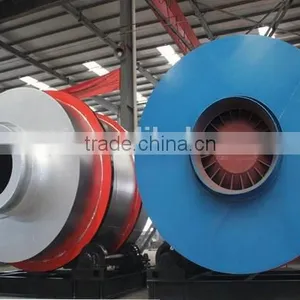

Factory Price High Efficiency TDS6220 Rotary Sand Dryer
1. Introduction of TDS6220 sand dryer
- Three pass dryer can take full advantage of excess heat, reduce heat loss and increase the heat exchange area, making the unit evaporation intensity of the dryer greatly improved, thereby effectively improving the heat energy utilization rate, reducing the energy consumption and making the heat efficiency of three-cylinder dryer improved in a wider range. Compared with single-cylinder dryer with the same efficiency, its heat efficiency is improved about 50% and energy consumption saving doubles.
- Because the cylinder length of the three-cylinder dryer is one third of single-cylinder dryer and the base area saves about 60% than the single-cylinder dryer, the base investment is reduced correspondingly.

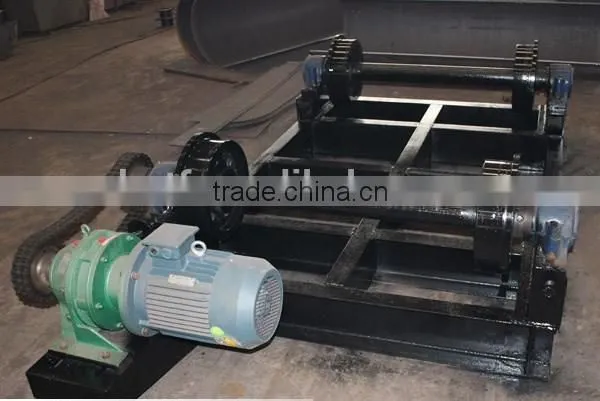

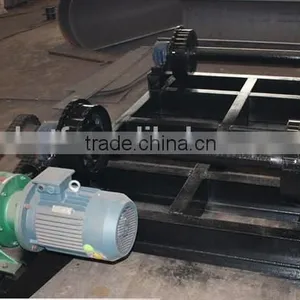

- The dryer drives by adopting the friction between supporting roller and belting leather, and the transmission power is low, thereby reducing the noises when the equipment working.
2. Parameters of TDS6220 sand dryer
Three Pass Dryer |
TDS6220, 1 set |
Drying capacity |
20-30 m3/h |
Diameter of drum |
2600mm |
Length |
3700mm |
Motor power |
5.5kw*2 |
Reducer model |
XWD-5 |
Speed of drum rotation |
4-10 r/min |
Moisture of end products |
0.1%-0.8% |
Max. temperature inside |
700-750℃ |
Outlet temperature |
30-60℃ |
Hot-blast Stove dimensions |
2.3m×2m×2.7m |
Furnace door |
450*550 mm |
Quicksand tube |
φ400×2000 mm |
Coal consumption |
7-10 kg/ per ton sand |
Process Flow Diagram
Flow chart
Features
Features of Three Pass Dryer
Delivery
Exhibition
