Specifications
TDS625 rotary sand dryer1.Drying capacity:4-6m3/h
2.Diameter of drum:2.2m
3.Length:2.5m
4.Motor power:5.5kw

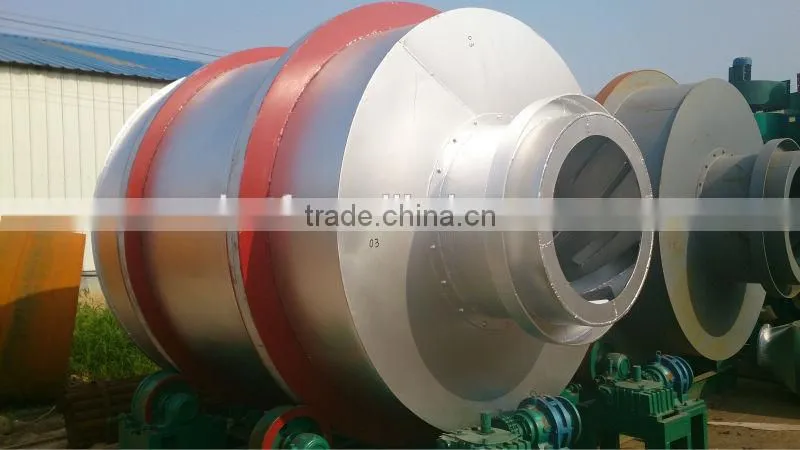

Rotary sand dryer / Rotary dryer/sand dryer TDS625
1. Features of TDS625 rotary sand dryer
1).High technical content, self insulation cylinder body, 80% thermal efficiency (single- cylinder dryer is only 35%), coal saving is 68% than single-cylinder dryer and output increases 100%
2). The length is good for technical layout, 60% shorter than single-cylinder dryer. Also it’s about 20m³area, reducing plant area and saving 40% investment
3).Adopt heat resistant and wear resistant steel plate, 4 times wear resistant than the general steel plate, long service time and convenient to maintain.
4).Outside cylinder body temperature is below 60°(single cylinder temperature is up to 150°), with low outlet temperature.
5).Low outlet temperature is good for keeping long service life.
2. Parameters of TDS625 rotary sand dryer
Three Pass Dryer |
TDS625, 1 set |
Drying capacity |
4-6 m3/h |
Diameter of drum |
2200mm |
Length |
2500mm |
Motor power |
5.5kw |
Reducer model |
XWD-5 |
Speed of drum rotation |
4-10 r/min |
Moisture of end products |
0.1%-0.8% |
Max. temperature inside |
700-750℃ |
Outlet temperature |
30-60℃ |
Hot-blast Stove dimensions |
2.3m×2m×2.7m |
Furnace door |
450*550 mm |
Quicksand tube |
φ273×1800 mm |
Coal consumption |
7-10 kg/ per ton sand |

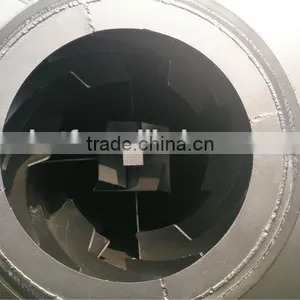

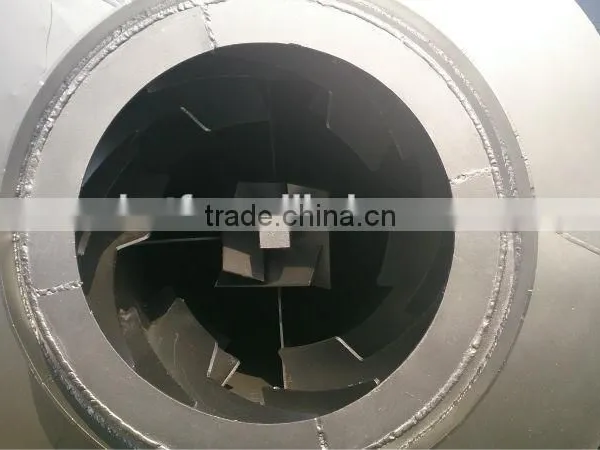

Main parts of TDS625 rotary sand dryer
Comparative advantage of Three Pass Dryer and Single Cylinder Dryer
