Concrete Reclaimer Concrete Recycling Plant

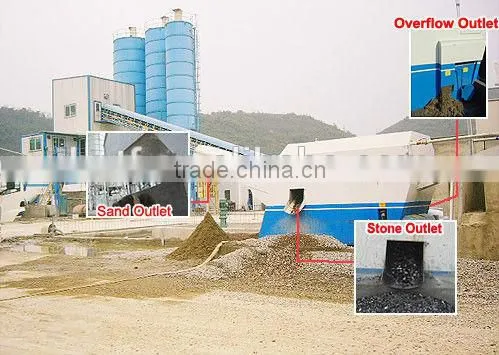

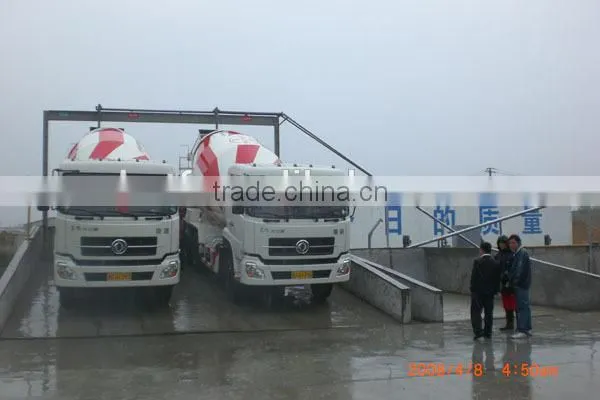

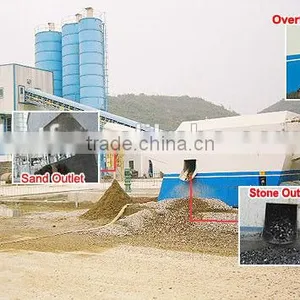

concrete reclaimer is a compact system that used in readymix companies and concrete companies to wash truck mixers and concrete pumps,sparates and dewaters residual concrete and discharges the sand and stones separately.
Sand stone separator is the key equipment of concrete recycling system. It is mainly used for cleaning sewage residue and sand washing separation and recovery ofconcrete.The concrete reclaimer combines drum-type segregating unit with spiral separation character and greatly improves former damageable parts.
Model |
TF-80 |
TF-100 |
TF-120 |
Screening Capability (t/ h) |
10-20 |
20-30 |
30-40 |
Stone size Screened (mm) |
5min. |
5min. |
5min. |
Sand size Screened (mm) |
1-5 |
1-5 |
1-5 |
Power(kw) |
10 |
12 |
13.5 |
Mixer Truck Qty. |
10max. |
10-30 |
30min. |
Separator Weight(kg) |
2730 |
3540 |
4650 |
Separator Size(mm) |
5100*1570*2000 |
6360*1750*2393 |
7160*2030*2650 |
1)FCL: in nude for standard exporting container
2)LCL: Poly wood case
Wire cables are used for fastening the machine
Cork wood are placed in front or behind the machine to protect it.
Plastic film is covered on the machine as a rain-roof.
Crane is used during the whole loading.
1.pre-sale service: our company can provide technological guidance and formulate suitable equipment matching program according with your specific production requirements.
2.on-purchase service: our company can solve professional technical problems and other related issues for you.
3.after-sales service: our company provides that engineers available to service machinery overseas and equipment for life maintenance.
TENGFEI GROUP since 1958, have been one of the largest Construction Machinery suppliers in China now, located in Zhengzhou, main products are Dry Mortar Production Line, Concrete Batching Plant, Concrete Mixer Machinery, Mining Machinery and etc.
