Specifications
cement screw conveyor1.Spiral diameter: 180mm
2.Carrying capacity: 45t/h
3.Conveylength:2-13m
4.Work angle: 45 max
cement screw conveyor for silo
1.LSY series screw conveyor is a special equipment that used for rotating spiral blades to propel materials continuously in a closed shell with circular section.
2.It is applicable to transport various kinds of loose material such as powder, granular and small piece material, for example: clay powder, pulverized coal, cement, sand, mortar,grain, small piece of coal, cobble and cast iron filings, etc.
Model |
LSY219 |
Spiral Diameter(mm) |
180 |
Rotation Speed(r/min) |
310 |
Housing Diameter& Length(mm) |
219*8000 |
Carrying Capacity(t/h) |
45 |
Conveying Length(m) |
2-13 |
Max Working Angle |
45 |
Motor Type |
Y160L-6 |
Power(kw) |
11 |

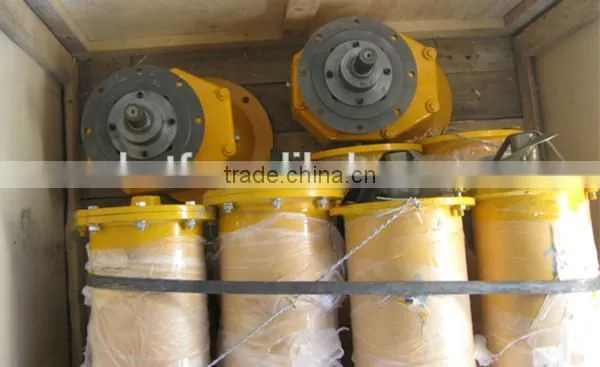

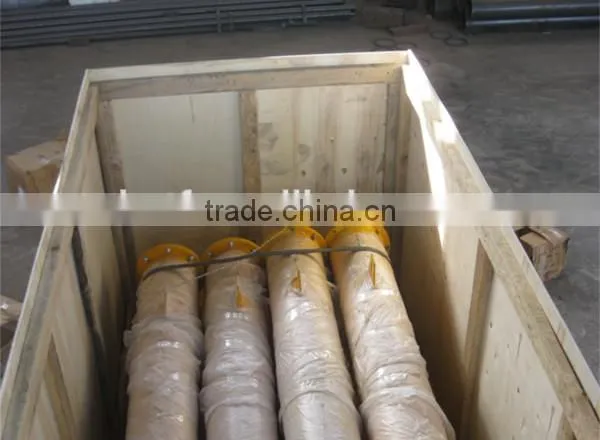

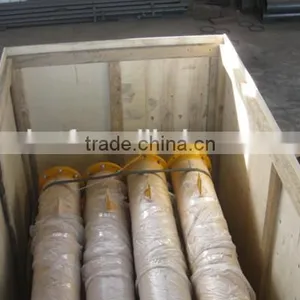

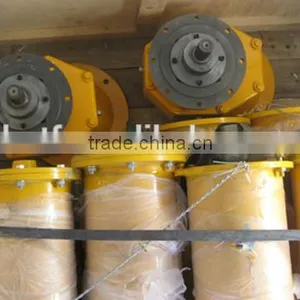

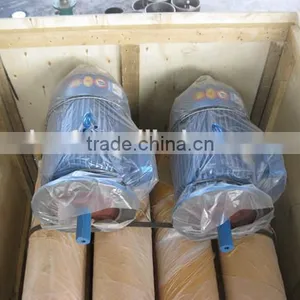

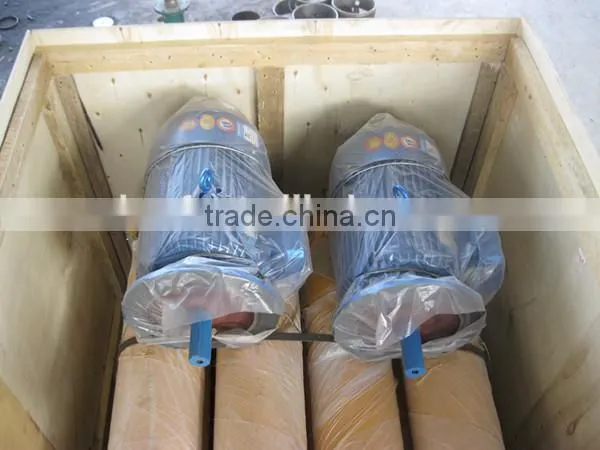

1)FCL: in nude for standard exporting container
2)LCL: Poly wood case
Wire cables are used for fastening the machine
Cork wood are placed in front or behind the machine to protect it.
Plastic film is covered on the machine as a rain-roof.
Crane is used during the whole loading.
1.According to your inquiry, We will reply to you in 24 hours.
2.Best After-sales: We will send the technical personnel to the site for installation, commissioning and training work.
3.WARRANTY :12 Months Warranty period, in addition to the force majeure and man-made factors, the damage caused by design, process and manufacturing equipment, the seller is responsible for sending people to offer free repair.
4.We will send the spare parts as soon as possible when necessary, equipment repair parts provided by the seller are original, authentic, quality goods.
TENGFEI GROUP since 1958, have been one of the largest Construction Machinery suppliers in China now, located in Zhengzhou, main products are Dry Mortar Production Line, Concrete Batching Plant, Concrete Mixer Machinery ect Construction Machinery.
