Home > Industrial Equipment & Components > Conveyor & Parts > Conveyor > Large Conveying Capacity LSY230 Screw Conveyor

Large Conveying Capacity LSY230 Screw Conveyor

Name: Large Conveying Capacity LSY230 Screw Conveyor
Brand: Tengfei
SKU: 139826461

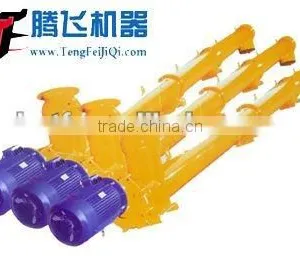

Large Conveying Capacity LSY230 Screw Conveyor thumbnail-1

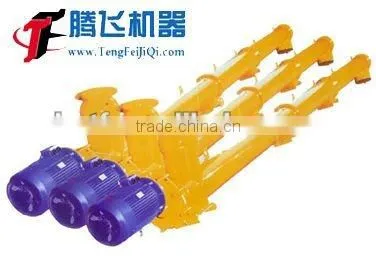

Large Conveying Capacity LSY230 Screw Conveyor photo-1

Negotiable MOQ: 2 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Screw Conveyor

Material:

Other, Carbon steel

Contact Supplier Request Quote Chat Now

Henan Teng Fei Machine Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Screw Conveyor

Material Other, Carbon steel

Material Feature Other, pressure resistant

Structure Conveyor System

Load Capacity 35t

Place of Origin Henan, China

Brand Name Tengfei

Model Number LSY230 screw conveyor

Specifications

Type:LSY230 screw conveyor
1.Competitive price
2.Any coastal port is OK
3.Excellent quality
4.Best after-sale service

Features of screw conveyor:

1.Screw conveyor adopts excellent quality steel pipe with great property.

2.The dual blades pitch decrease the compressed material degree when conveying.

3.Adopt first grade reducer ,heavy type design ,low noise ,long rotation distance.

4.Optional universal ball joint and make installation adjust to convenience .

5.Match good quality crane and tail bearings for convenient installation.

6.Enough spare components with various specification.

7.There are plenty of stock with diameters of 165mm,219mm,273mm,323mm,407mm .And the special size can be manufactured according to customer's requirements.

8.Standard components assembly is convenient to deliver.

Application of screw conveyor :

It is widely used in various industries ,such as construction material , chemical industry , electric power,metallurgy, coal carbon,food and so on .It is applied to convey powder, graininess and small block material with level or incline.

Parameters of LSY230 screw conveyor :

Screw Conveyor Type	LSY163	LSY180	LSY230
Spiral Diameter(mm)	163	180	230
Rotation Speed(r/min)	150	170	180
Housing Diameter(mm)	194x6	219x8	273x8
Carrying Capacity(t/h)	16	18	23
Conveying Length(m)	2-12	2-13	2-15
Working Angle	0-60	0-60	0-60
Motor Type	Y132M-4	Y160L-4	Y160L-6
Power(kw)	7.5	11	15

We are a manufacture of construction machine and mine machine, with more than 30 years experience , mainly produce concrete batching plant, AAC production line,stabilized soil mixing plant,sand production line,dry mortar production line,cement production line, concrete mixer,concrete pump ,concrete truck,belt conveyor,cement silo ,jaw crusher,impact crusher ,raymond mill ,sand washing machine and so on .
