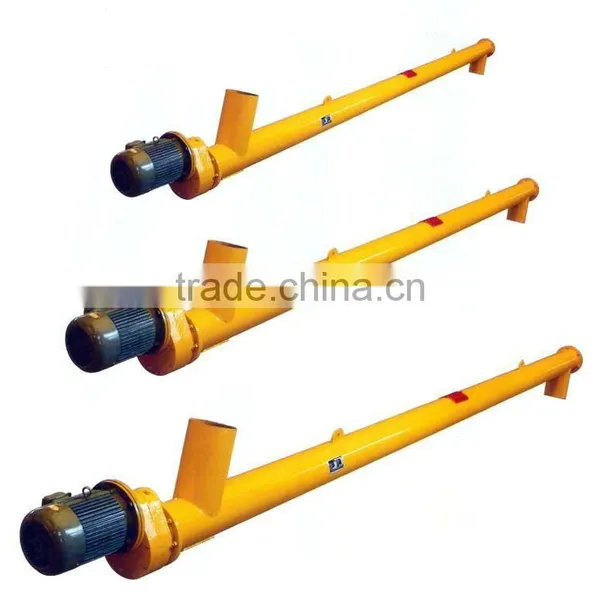

Help CenterLSY230 Spiral Screw Conveyor
Related Products
Specifications
Type:LSY230 spiral screw conveyor1.Competitive price
2.Excellent quality
3.Best after sale service
4.Manufacture
About spiral screw conveyor :
Newly-modified LSY type screw conveyor uses screws moving material along the chassis continuously passing in transmission and is the important equipoment cement silo assignments.
Applications of spiral screw conveyor :
Spiral machine widely used in various industries, such as building materials ,chemical ,power ,metallurgy coal carbon, grain and other industries.It is applicable to level or tilted transportation of powder, granular and small block materials, such as coal ,ash ,slag cement ,grain and other materials, whose temperature is less than 200.
Parameters of LSY spiral screw conveyor :
Type |
LSY163 |
LSY180 |
LSY230 |
Spirochaeta Diameter(mm) |
163 |
180 |
230 |
Spirochaeta Speed(r/min) |
310 |
310 |
240 |
Hosing Diameter(mm) |
194x6 |
219x8 |
273x8 |
Transportation Quantity(t/h) |
35 |
45 |
65 |
Conveying Length(m) |
2-12 |
2-13 |
2-15 |
Work Position Angle |
0-60 |
0-60 |
0-60 |
Motor Type |
Y132M-4 |
Y160L-6 |
Y160L-4 |
Power(kw) |
7.5 |
11 |
15 |
Payment Terms and Conditions of spiral screw conveyor
1. Quotation is valid in one month.
2. Delivery time:15days after receipt of your deposit.
3. Payment terms:50% T/T in advance, the left is against the copy of B/L.
4. Package: nude packing, with 40HC.
5. MOQ:2 sets
spiral screw conveyor with high quality
If you'd like to know more details and demand of our products,please contact me asap.
Henan Kowloon Machinery Co. Ltd----Excellent Quality & Best Service
Your optimal choose!
We are a manufacture of construction machine and mine machine, with more than 30 years experience , mainly produce concrete batching plant, AAC production line,stabilized soil mixing plant,sand production line,dry mortar production line,cement production line, concrete mixer,concrete pump ,concrete truck,belt conveyor,cement silo ,jaw crusher,impact crusher ,raymond mill ,sand washing machine and so on .
