About the glass fused to steel tank
This is the only tank finish where two materials are fused together to achieve the best of both: the strength and flexibility of the steel combined with the corrosion resistance of the glass. The high temperature fusion of glass to steel fired at 850 degree results in an inert, durable finish. Applied to both interior and exterior, the GFS technology is able to withstand the rigours of the construction site and provide many years of trouble free service in harsh environments.
Raw Material
| Product Name |
glass fused to steel tank / bolted steel tank |
| Coating Color | dark green, white, blue, color can be customized |
| Coating Thickness | 0.25~0.40mm ,double coating |
| Acid and alkalinity proof | Standard sheet PH:3~11 |
| Special sheet PH: 1~14 | |
| Adhesion | 3,450 N/cm |
| Elastic | Same as steel sheet,around 500 Kn /mm |
| Hardness | 6.0 ( Mohs ) |
| Service life | ≥30Years |
| Holiday test | >1500v |
| Permeability | Gas / liquid impermeable |
| Easy to clean | Teh Smooth, glossy, inert, non adhesive |
| Corrosion resistance | Excellent,suitable for wastewater,salt water,sea water,high-sulfur crude oil,salt fox,organic and inorganic compounds |
The outstanding advantages of the oil storage tank with enamel coating :
|
Advantages of Enamel Steel tanks - short construction period |
Application of the glass fused to steel tank
Power and Energy |
Water supply and Treatment |
Wastewater Treatment |
Industrial dry bulk storage |
|
Biogas biomass Aviation oil Process water Boiler Feed water Fuel Oil Kerosene DI water Coal Storage Diesel Drilling mud Reverse osmosis water Fly ash silo |
Potable water / Water storage Bitter-brackish water Raw water / Fresh water Aeration Biological Filter Water Purifying Fire-fighting water Saline Water / Brine Water Sedimention Container Ro Water Sea water desalinization Lime Silo |
Buffer Pool Aerobic Reactor Biological Filter Effluent Treatment Regulating Tank Anaerobic reactor Leachate Storage Irrigation water Water Purifying Sedimentation Container Sludge Tank Animal Wastes |
Mineral Wood product Stone / Clay / Glass Chemicals Petrochemicals Foods Plasthetics Grain / Seeds |
Part of our Projects of Enamel steel tanks shows :
-- 2008 Beijing Olympics Games wastewater project

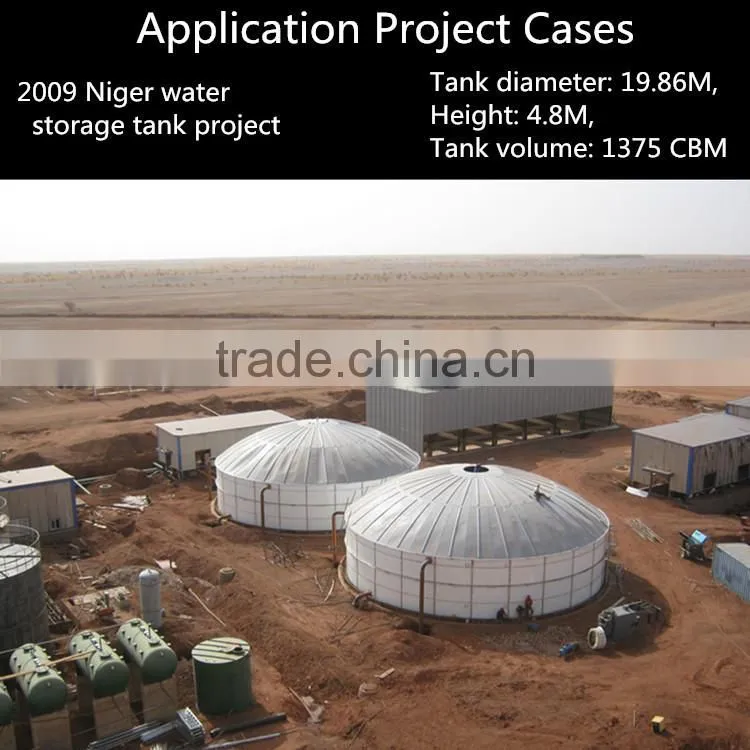

-- 2009 Niger Azelik uranium deposits(China National Nuclear Corporation)
-- 2009 Niger Azelik uranium deposits(China National Nuclear Corporation)
-- 2009-2013 Palm oil wastewater treatment project in Indonesia
-- 2011 Anyang city Biogas project

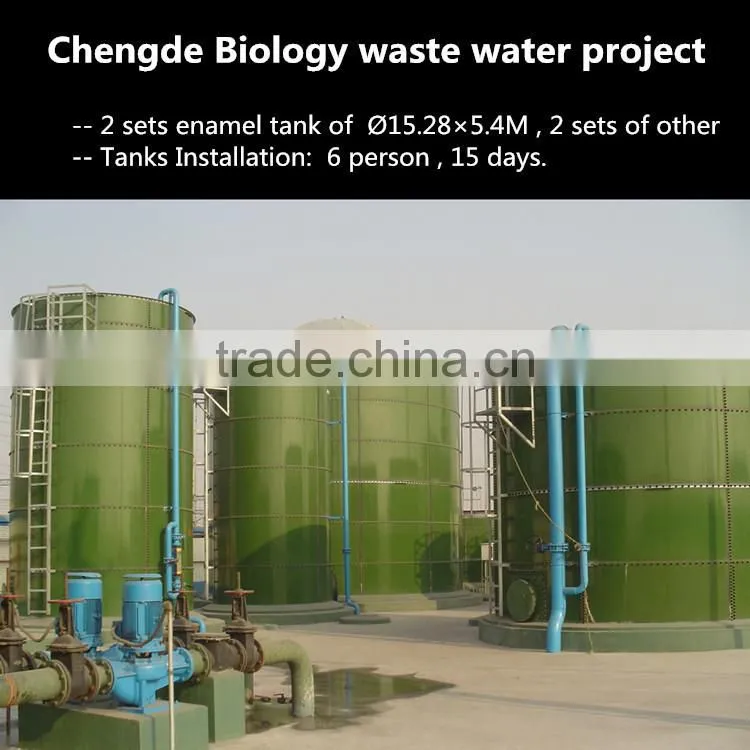

-- Chengde Biology waste water project
-- Brewery wastewater treatment
-- Shandong Garbage waste water treatment project
-- Pharmacy waste water treatment project
-- 2013 Sichuan Chengdu Pharmaceutical wastewate treatment
-- 2014 Urban sludge treatment project- Kazakhstan

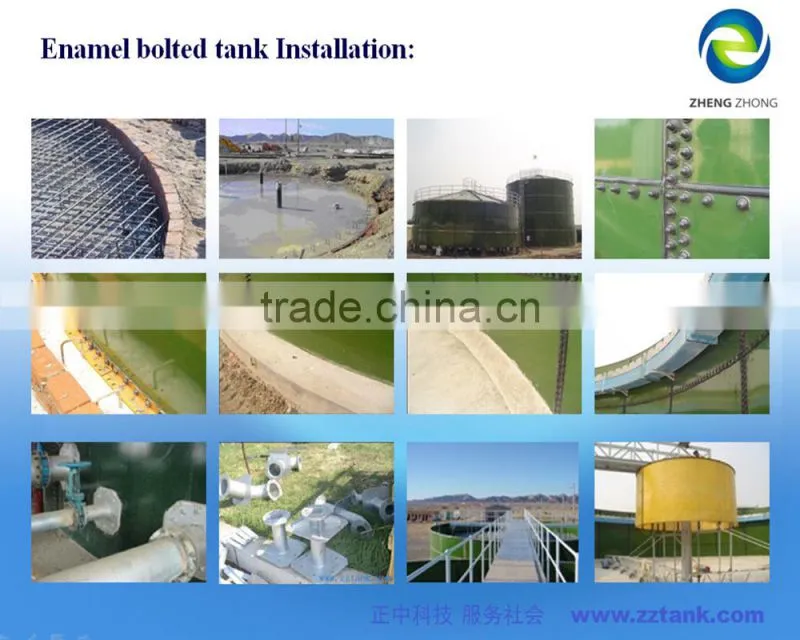

Installation of the glass fused to steel tank

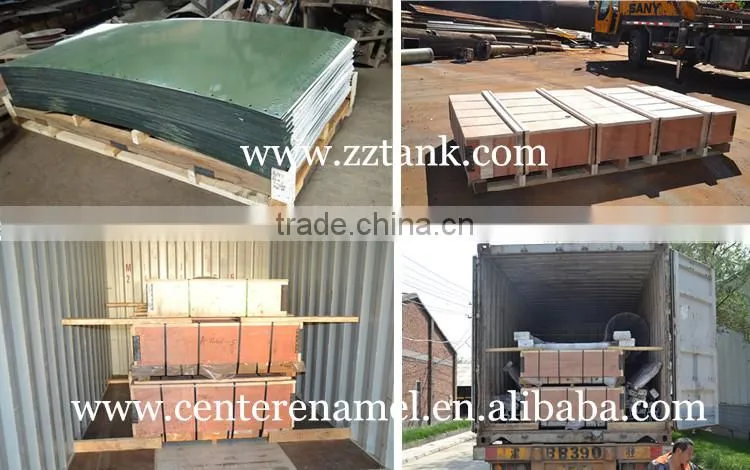

Double checking is required before packaging, confirm the plate’s code and quality. The steel plates is separated with each other by PE foam, to avoid any damage on the coating surface. And the whole pallet steels packed in wooden case.
Center Enamel is the world leading manufacturer of glass fused bolted steel storage tank. We have our own factory cover 80,000 square meters and own our R&D team. Our factory has over 26 years experience in producing Enamle products.
We already passed ISO9001-2000 quality system certification, and product and design can reach AWWA D103-09 standard, OSHA and meet European standards. We are the only enterprise that can produce AA grade (acid-proof and alkali- proof ) enameled sheet now
And in a detail-oriented and pursuing perfect belief, we insist in providing the highest quality products and best services. Now we are supplying products services for all over the world.
Quality is our culture and the soul of our enterprise
Our strict quality control system ensure the consistent delivery stable quality product all the time. There are more than 50 staffs in our quality control department. The QC control system is in accordance with the requirement of ISO9001. All the enamel tank & storage silo manufactured by center Enamel should pass belwo 4 kinds of quality tests from the beginning of produce to delivery and make sure each product is high quality.
- Raw materials testing in the factory:ingredient analysis, impurities test;

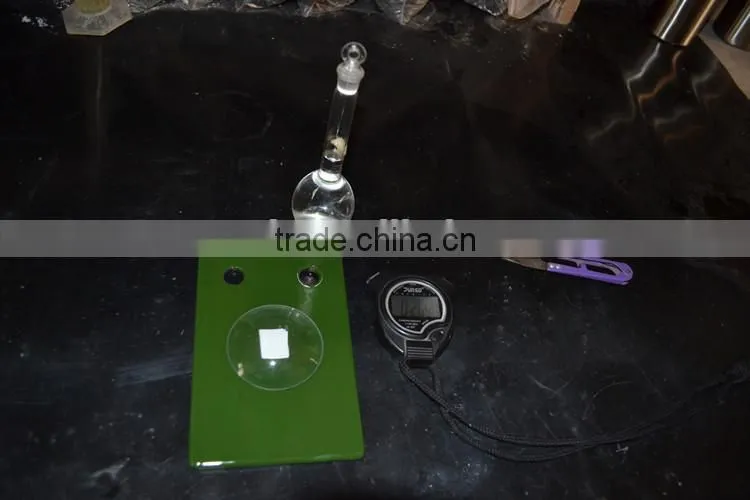

- Recipe finalized small samples test : enamel fluidity test, chromatic difference analysis, enamel burning experiment , acid and alkali resistance testing, glossy, adhesion etc,
- Middle stage products test :amplification experiment simulated environment;

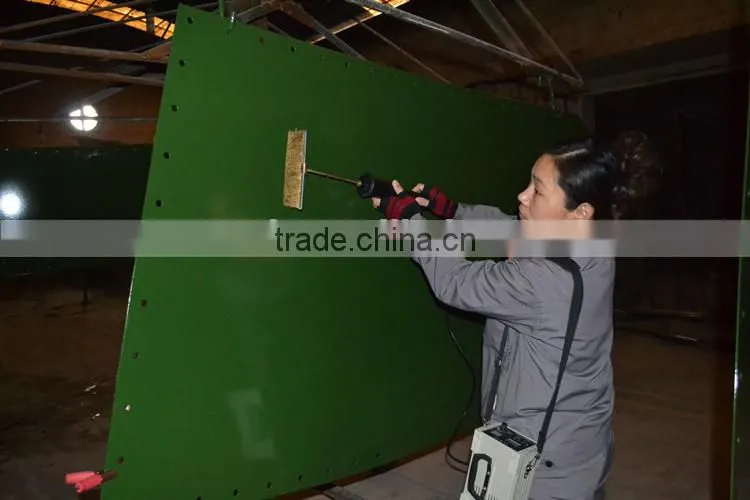

- Destructive testing, detection , impact test, sparks test, sliced electric microscope analysis .
Any questions will be replied within 24 hours!
Dear friends, should you have any questions about glass fused to steel tank , please feel free to contact with us. Wish to help you. Have a nice day.
