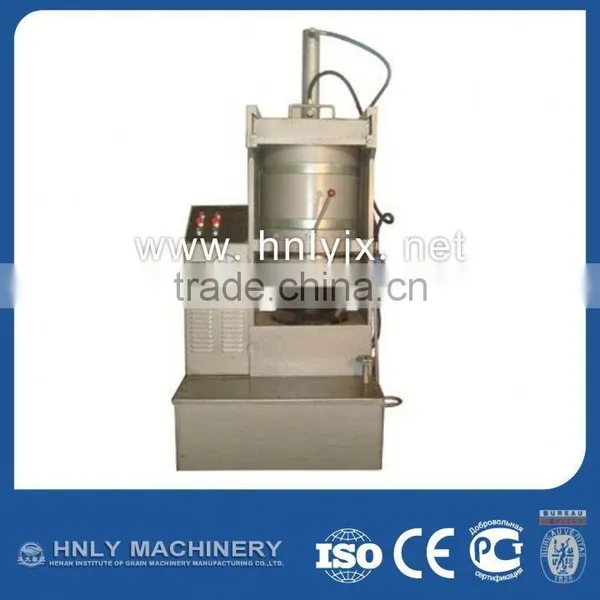

vertical oil expeller hydraulic palm oil press machinery
Oil press machine advantages :
1. Professional manufacturer of grain and oil machinery over 30 years experience.
2.Completely production line, from raw material to delivery, all are under our control.
3.Quality assured.
4.Certification:CE/BV/ISO
5. Create a good production environment.
6. Perfectly match extraction production line, design different production processes according to different materials.
7. Minimize the total fat loss, increase oil yield and output and improve the quality of oil and cake meal.
Features :
1. It is easy for people to learn, understand, and operate because of its small size. Besides, it is no
special requirements for people to operate.
2. It costs less various expenses with lower electricity consumption in use.
3. The machine is a hydraulic machine with big pressure, high oil yielding rate and pure oil Quality.
4. The machine adopts automatic control system, automatic preheating control and automatic
pressure control of hydraulic system.
The machine adopted imported high quality silicomanganese material for main components.is
manufactured from precision CNC lathes combined with modern high technology.
Technical Data :
| Type(single cylinder) | Work thrust(t) | Main engine power(KW) | Capacity (Kg/H) |
| 6YY-280-560×670 | 310 | 2.2 | 300 |
| 6YY-280-500×670 | 310 | 2.2 | 240 |
| 6YY-280-460×670 | 340 | 2.2 | 110 |
| 6YY-250-450×800 | 200 | 2.2 | 130 |
| 6YY-250-400×800 | 180 | 2.2 | 180 |
| 6YY-220-360×800 | 140 | 1.5 | 150 |
| 6YY-220-300×800 | 140 | 1.5 | 115 |
| 6YY-280-300×800 | 310 | 2.2 | 115 |
| 6YY-280-400×800 | 310 | 2.2 | 180 |
Operating principle
1.When oil press is on work, material enters the extruding chamber from the hopper and then
moves forwards by the rotating pressing screw and is pressed.
2.Under high temperature condition in the chamber, there is quite strong friction among press
screw, chamber and the oil materials.
3.On the other hand, root diameter of the pressing screw carries larger from one end to the other.
4.Hence when rotating, the thread not only pushes particles moving forwards but also turns them
outwards as well.
5.Meanwhile, particles adjacent the screw will rotate along with screw's rotating, causing every
particle inside the chamber to possess different speed.
6.Therefore, relative movement among particles creates neat which is necessary during
manufacturing because of helping protein change property, damage colloid, increase plasticity,
decrease oil's elasticity, resulting in high oil.
Our service
Whole set of equipment for production line.
Motor and power control system.
Installation material.
Installation and test-run.
Drawing of process description, equipment layout, foundation and
hole, construction.
Drawing of power control.
Isolation and painting for equipment.
Water recycling and cooling system outside the plant (i.e. supplementary device).
Staff training and long-term technical service.
Main Business Field
10-500T/H oil material primary cleaning,drying and storage section turn-key project.
100-3000 T/D oil pretreatment, shelling and pre-press workshop turnkey project (soybean hot dehulling, bean skin crushing, the soybean extrusion, high oil contained pre-pressed cake extrusion and high oil contained flakes puffed directly). Rice bran turn-key project.
100-3000 T/D leaching workshop turnkey project (towline extractor, rotocel extractor, loop type extractor,
DTDC separated machine, the full negative pressure evaporation,
Paraffin wax recovery, leaching workshop degumming, phospholipid concentration).
30-1000T/D continuous physical (chemical) refining line.
20-3000T/D sunflower oil, rice bran oil, corn germ oil dewaxing turnkey project.
10-200T/D fatty acid esterification edible oil production line.
