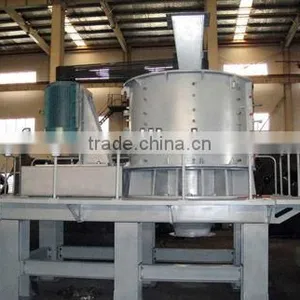

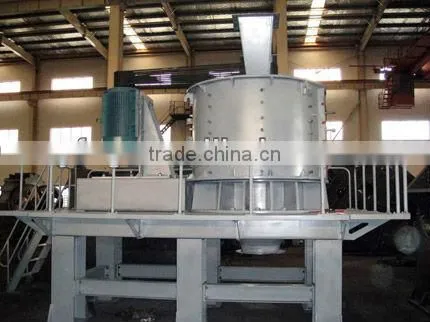

Help CenterHot Sell Yufeng Brand PFL Series Vertical Combination Crusher
Related Products
-
Hot Sell Combination Crusher With Good QualityUS$ 1,000 - 50,000MOQ: 1 Set -
AAC Complete Line,aac Production LineUS$ 10,000 - 500,000MOQ: 1 Plant
-
High Crushing Ratio Automatic Stone Production Line --Yufeng BrandUS$ 100 - 99,999MOQ: 1 Set
-
Automatic Stone Production Line Plant Crushing Machine --Yufeng BrandUS$ 100 - 99,999MOQ: 1 Set
-
Quartz Sand Stone Production Line Plant Crushing Machine --Yufeng BrandUS$ 100 - 99,999MOQ: 1 Set
Combination crusher Description
Vertical combination crusher: Our combination crushers are ideally suitable for primary and secondary crushing, with low power consumption and easy maintenance. Every feature of these machines has been carefully designed to provide superior quality and performance. They are widely used for crushing various materials like stone, granite, trap rock, coke, coal, manganese ore, iron ore, emery, fused aluminum, oxide, fused calcium carbide, lime stone, quartzite, alloys, etc. These crushers are recommended by leading consultants in this field and are used by hundreds of customers all over the world.
Features of vertical combination crusher:
1 Great processing ability
2 long working life span
3 Stable operation and easy maintenance
4 Deputed quality with certificate of ISO9001: 2000/CE
5 Professional after-sale service
Working Principle of vertical combination crusher:
Materials fall into the impeller which is rotating at a high speed from the upper part of the machine. Under the action of high speed centrifugal force, they impact and crush with another portion of materials distributed in an umbrella-shaped form around the impeller. During the crushing, a vortex is formed between impeller and enclosure.Materials are impacted and grinded again and again. At last, crushed materials are discharged from the lower part of the machine. Screening equipment helps control the granularity of the finished products.
vertical combination crusher parameter:
Model |
Inlet Dia. mm |
Capacity t/h |
feeding size (mm) |
dischage size (mm) |
shafe rotary speed r/min |
motor |
dimension L×W×H mm |
Weight t |
|
model |
power kw |
||||||||
PCL750 |
750 |
12-15 |
≤80 |
0-5 |
720 |
Y200L-4 |
30 |
2000×1100×1375 |
3.1 |
PCL1000 |
1000 |
25-30 |
≤90 |
0-6 |
500 |
Y280M-6 |
55 |
2690×1500×1600 |
4.6 |
PCL1250 |
1250 |
35-40 |
≤100 |
0-7 |
420 |
Y315M1-8 |
75 |
3270×1600×1900 |
6 |
PCL1500 |
1500 |
55-70 |
≤120 |
0-8 |
400 |
Y315M3-8 |
110 |
3400×2000×2300 |
9.5 |
PCL1750 |
1750 |
80-100 |
≤150 |
0-9 |
380 |
Y315M3-8 |
160 |
3710×2360×2390 |
15 |
PCL2000 |
2000 |
110-130 |
≤180 |
0-10 |
370 |
Y315M3-8 |
185 |
4100×2660×2620 |
20 |
....
