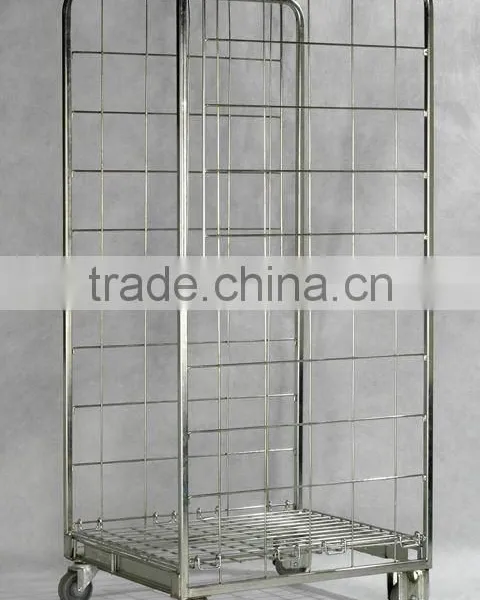

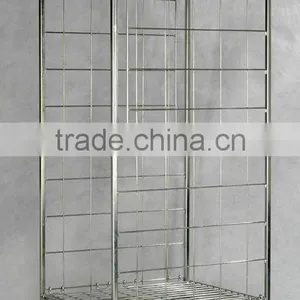

Trolley Cart XHC-18

Name: Trolley Cart XHC-18
Brand: spark
SKU: 139870063

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

spark

Model Number:

XHC-18

Qingdao Spark Logistics Appliance Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name spark

Model Number XHC-18

Usage Storage

Structure Mesh

Material Other, metal

Wheel Four-wheel

Specifications

Trolley Cart XHC-18
1 SIZE:685*800*1750mm
2 LOAD CAPACITY:400KG
3 UNLOAD WEIGHT:35KG

Trolley Cart XHC-18

1 SIZE:685*800*1750mm
2 LOAD CAPACITY:400KG
3 UNLOAD WEIGHT:35KG

2-SIDES ROLL CONTAINER FOR EURO supermarket.

SPECIFICATION LIST:

XHC-18 Parameters	UOM	Info to be Provided
Type of Roll Cage		2-sided roll container
No of Separators		no
Overall Height	mm	1750
Internal Height	mm	1500
Unload Weight of the Roll Cage	Kg	35kgs
Outer Width of Roll Cage	mm	800
Inner Width of Roll Cage	mm	765
Outer Length of Roll Cage	mm	685
Inner Length of Roll Cage	mm	635
Identification Plate		On request
Top Lid		no
Separator		No, but it can on request
Construction
Thickness of Outer Vertical Frame	mm	2.0mm
Dia of Pipe	mm	2.0mm
Wire Dia	mm	4.8/5.8mm
Grid Size of Wire mesh	mm	100*100mm
Thickness of Bottom Frame	mm	2.0mm
Load Carrying
Load Carrying of Roll Cage	Kg	400kgs
Load Carrying Capacity of Separator		N.A
Wheel
Wheel Material		PP/Nylon/sandwich
Wheel Dia on Open Side	mm	100mm
Wheel Dia on Closed Side	mm	100mm
No of Wheels Fixed		2 nos
No of Wheels Swivel		2 nos
Swivel Wheel on - Open Side/ Closed Side		Closed side
Swivel with a brake		On request
Wheel Cover Available		Yes
Fitted with thread guards		Yes
Overall Wheel Height	mm	155mm
Finish
Final Finish		Zinc plating
