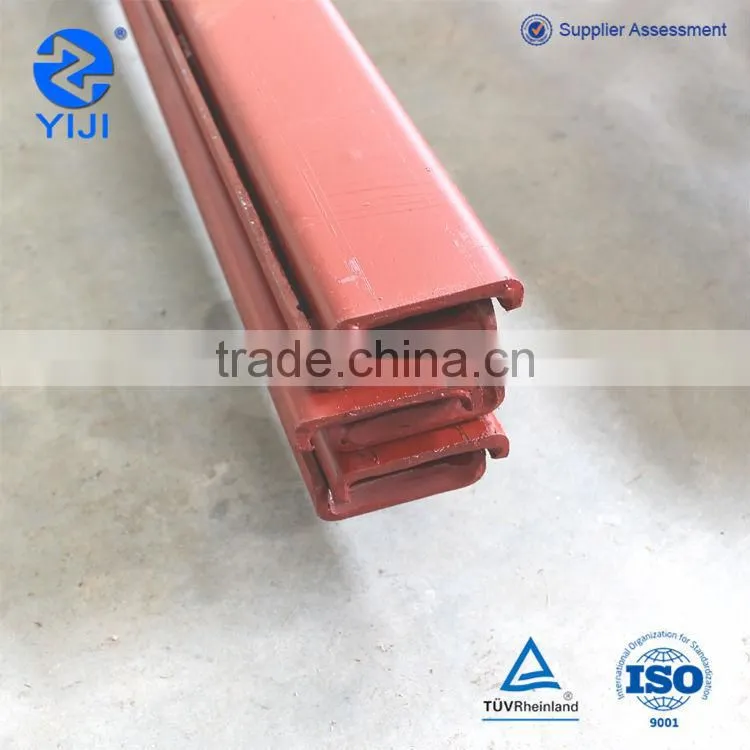

Help CenterWear Resistance Guide Rail for Chain Conveyor
Related Products
-
Mild Steel Middle Casing for Bulk Materials ConveyorUS$ 120 - 350MOQ: 1 Set -
Stainless Steel Middle Casing With Inspection Door for Bucket ElevatorUS$ 120 - 350MOQ: 1 Set
-
Wear Resistance Steel Blade for Screw ConveyorUS$ 100 - 300MOQ: 1 Set
-
Wear Resistance Steel Blade of Screw ConveyorUS$ 2,000 - 2,500MOQ: 1 Set
-
Wear Resistance Screw Conveyor Screw BladeUS$ 100 - 300MOQ: 1 Set
Guide rail Specifications
1. wear resistance Mn steel.
2. High linearity
3. Long service life.
4. With heat treatment.
Guide rail Operating Principles

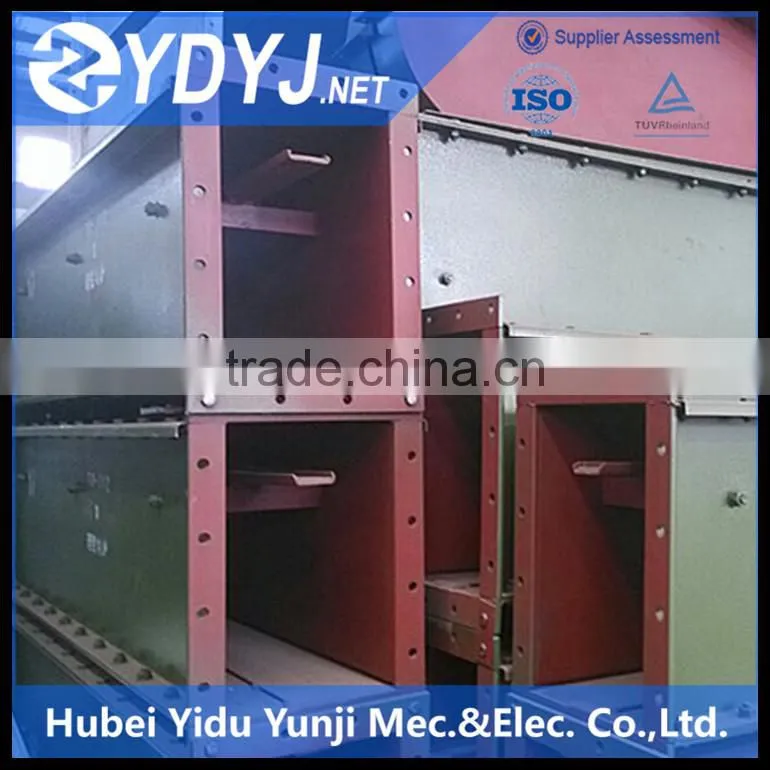

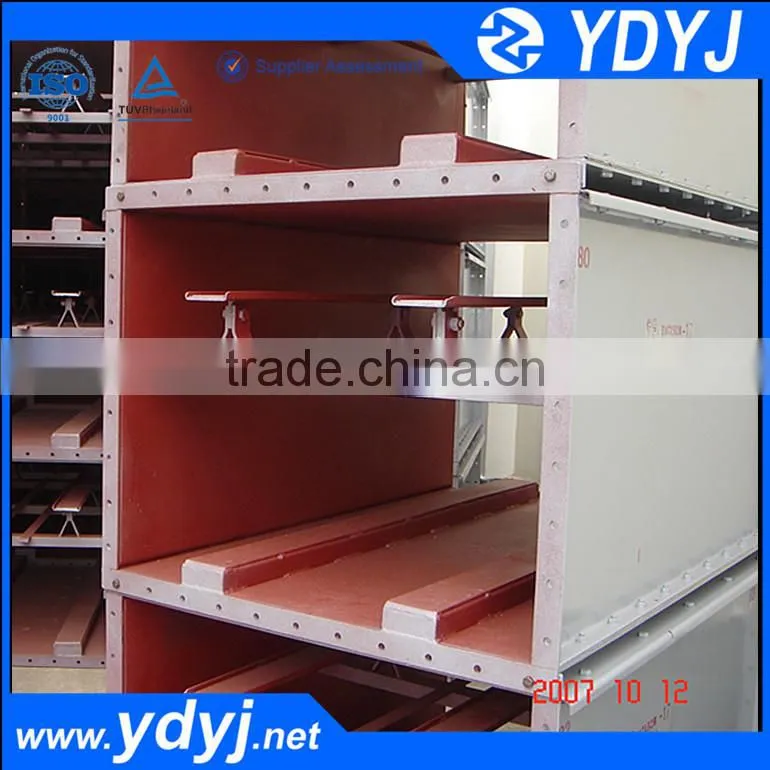

Scraper chain walking in the wear-resistant guide rail, so can reduce the wear of the scraper chain on the floor, to increase the service life of equipment .
The guide rail length of 3002 scraper chain is 65mm, of 3003 scraper chain is 80mm.
Technical Paramete
Type |
MS12 |
MS16 |
MS20 |
MS25 |
MS32 |
MS40 |
MS50 |
MS63 |
|
Chute width(mm) |
120 |
160 |
200 |
250 |
320 |
400 |
500 |
630 |
|
Chute height(mm) |
120 |
160 |
200 |
250 |
320 |
400 |
500 |
630 |
|
Capacity(m3/h) |
7-12 |
11-25 |
17-39 |
23-54 |
48-88 |
67-124 |
105-192 |
166-300 |
|
Max conveying distance(m) |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
|
Chain scraper |
Type |
DT |
DT |
DT |
DT(S30) |
S30 |
Z30 |
Z30 |
Z30 |
Allowable load(kn) |
15 |
17 |
26 |
35(45) |
45 |
75 |
100 |
2*75 |
|
Weight(kg/m) |
5.5 |
5.62 |
7.2 |
12.2(15.63) |
15.63 |
23.24 |
25.34 |
47.6 |
|
Speed(m/s) |
0.16-0.32 |
0.16-0.32 |
0.16-0.32 |
0.16-0.32 |
0.2-0.32 |
0.2-0.32 |
0.25-0.32 |
0.25-0.32 |
|
Packaging and shipping
1. Export packing.(Wooden case, carbon cast and pallet).
2. Container (as customer requirements)
3. It is suitable for long distance ocean transportation.
Please tell us the following technical parameters before inquiry:
Q: What 's the material will be conveyed?please tell us more material features.
Q:What's the conveying distance between the inlet and outlet?
Q:What's the conveying capacity do you want?
About us
Our company was established in 2002 and is located in Yichang city, enjoying convenient transportation and beautiful environment. Our company covers an area of 62,300 square meters and has 135 employees. We are specialized in fragmentation of bulk material, screen separation, as well as in the design and development, assembling, manufacturing and installation of conveying system and have an annual production capacity of 30,000 ton. Our company has rich experience in the material handling equipments industry. Our main products include en masse conveyor, bucket elevator, screw conveyor, belt conveyor, crusher etc . Besides, we are making great efforts to develop new products to meet different requirements. Our company has magnetic detector, material composition analyzer equipment to strictly control the product quality. Adhering to the business principle of mutual benefits, we have had a good reputation among our customers because of our perfect services, quality products and competitive prices. We warmly welcome customers from at home and abroad to cooperate with us for common success.
