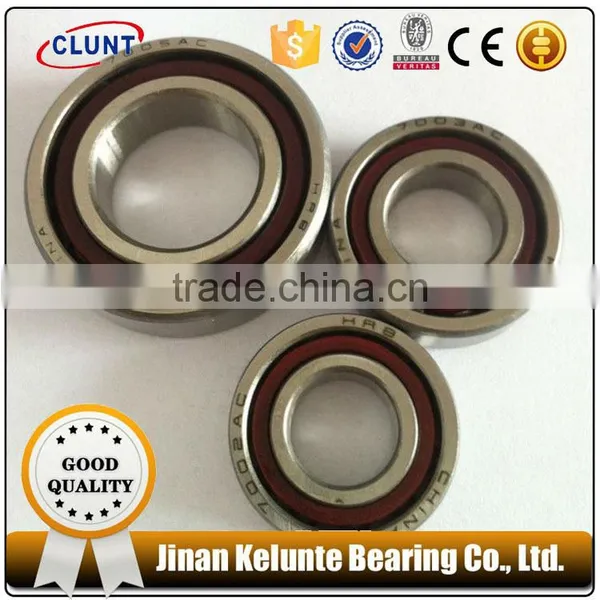

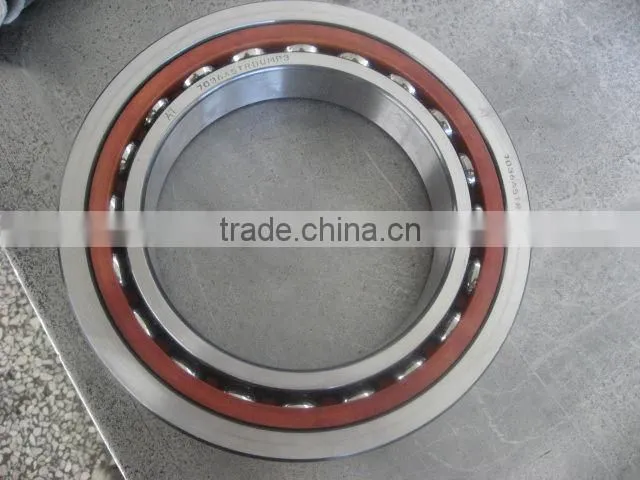

High frequency motor angular contact ball bearings 7201
Single-row angular contact ball bearing - suited to work in lower operating temperature and high speedwith a heavy thrust load. Can be mounted in a duplex arrangement. The refined bore tolerance give a higherlife.
Double-row angular contact ball bearing - excellent axial and radial rigidity in confined space.
Angular Contact Ball Bearings with contact angles of 15° (Symbol C) and 25° (Symbol A5) are primarily for high precision or high speed applications, and machined brass or synthetic resin cages or molded polyamidecages are used.
Inner diameter |
12mm |
Outer diameter |
32mm |
Width |
10mm |
Dynamic |
7.61KN |
Static |
3.8KN |
Fatigue load limit |
0.16KN |
Reference speed |
26000r/min |
Limiting speed |
26000r/min |
Weight |
0.036kg |
Series of angular contact ball bearing
NO.s |
principal dimensions |
Basic load ratings dynamic static |
Fatigue load limit |
Speed ratings Reference speed |
Limiting speed |
|
|||
NO.s |
d(mm) |
D(mm) |
B(mm) |
C(kN) |
C0(kN) |
Pu(kN) |
r/min |
|
Weight(kg) |
7200 |
10 |
30 |
9 |
7.02 |
3.35 |
0.14 |
30000 |
30000 |
0.03 |
7201 |
12 |
32 |
10 |
7.61 |
3.8 |
0.16 |
26000 |
26000 |
0.036 |
7301 |
12 |
37 |
12 |
10.6 |
5 |
0.208 |
24000 |
24000 |
0.063 |
7202 |
15 |
36 |
11 |
9.5 |
5.1 |
0.216 |
26000 |
26000 |
0.045 |
7302 |
15 |
42 |
13 |
13 |
6.7 |
0.28 |
20000 |
20000 |
0.081 |
7203 |
17 |
40 |
12 |
11 |
5.85 |
0.25 |
22000 |
22000 |
0.07 |
7303 |
17 |
47 |
14 |
15.9 |
8.3 |
0.355 |
19000 |
19000 |
0.11 |
7204 |
20 |
47 |
14 |
13.3 |
7.65 |
0.325 |
18000 |
19000 |
0.11 |
7304 |
20 |
52 |
15 |
19 |
10 |
0.425 |
18000 |
18000 |
0.15 |
7205 |
25 |
52 |
15 |
15.6 |
10 |
0.43 |
17000 |
17000 |
0.13 |
7305 |
25 |
62 |
17 |
26.5 |
15.3 |
0.655 |
15000 |
15000 |
0.24 |
7405 |
25 |
80 |
21 |
39.7 |
23.6 |
1 |
11000 |
11000 |
0.61 |
7206 |
30 |
62 |
16 |
24 |
15.6 |
0.655 |
14000 |
14000 |
0.19 |
7306 |
30 |
72 |
19 |
36.5 |
21.2 |
0.9 |
13000 |
13000 |
0.37 |
7406 |
30 |
90 |
23 |
47.5 |
29 |
1.22 |
10000 |
10000 |
0.85 |
7207 |
35 |
72 |
17 |
31 |
20.8 |
0.88 |
12000 |
12000 |
0.3 |
7307 |
35 |
80 |
21 |
41.5 |
26.5 |
1.14 |
11000 |
11000 |
0.49 |
7407 |
35 |
100 |
25 |
60.5 |
38 |
1.6 |
8500 |
9000 |
1.1 |
7208 |
40 |
80 |
18 |
36.4 |
26 |
1.1 |
10000 |
10000 |
0.38 |
7308 |
40 |
90 |
23 |
50 |
32.5 |
1.37 |
10000 |
10000 |
0.61 |
7408 |
40 |
110 |
27 |
70.2 |
45 |
1.9 |
8000 |
8000 |
1.4 |
