Specifications
Wheel thrust roller bearing 811041.Samples are available
2.Delivery in time
3.Small order accept
4.Long life

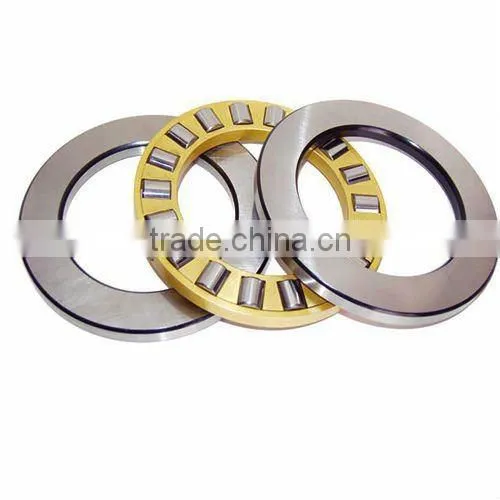

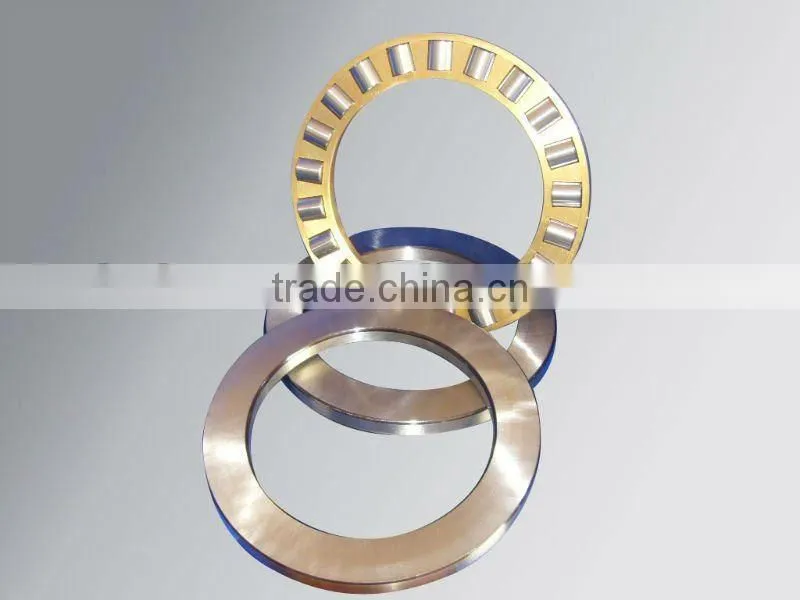

Wheel thrust roller bearing 81104
roller bearing 81104 specification:
d:20mm
D:35mm
B:10mm
Weight:0.037kg
Dynamic:18.6KN
Static:48KN
Limiting speed:7500r/min
| Bearing name | 81104 bearing |
| New model | 81104 |
| Old model | 9104 bearing |
| Products types | 81104 Thrust Roller Bearings |
| Categories | Thrust Roller Bearings |
| Brands | CLUNT |
| Dimensions | (mm) |
| Inside diameter ID d | 20 |
| Outside diameter OD D | 35 |
| Thickness B | 10 |
| Size (IDxODxB)mm | 20x35x10 |
Details:
(1)Shield / closure: Open ball bearing, Z, ZZ, RS, 2RS, 2RZ
(2)Tolerance code: ABEC-1, ABEC-3, ABEC-5, ABEC-7
(3)Vibration level: V4, V3, V2, V1
(4)Radial play: C0, C2, C3, C4
(5)Material: AISI52100, AISI440C, AISI304, AISI316
(6)Retainer: PTFE, nylon, PEEK or (stainless)steel
The thrust roller bearings are used in withstanding the union load of axial load and radial direction load, but the radial load do not surpass the axial load's 55%. Comparing with other thrust roller bearings, this kind of bearings' friction factor is low, the rotational speed is high, and has self-aligning performance.
Such as a spherical roller bearing type, because of seat spherical surface raceway with Tiaoxin performance. Axial load capacity is very large, and at the same time bear the axial load can also be a number of radial load to bear. Generally adopted the use of lubricating oil. Such bearings are mainly used in hydro-electric machine, vertical motors, the ship with the propeller shaft, crane, extrusion, etc.
Products name |
Thrust roller bearing |
Brand name |
CLUNT |
Ring material |
Chrome Steel ,Carbon steel,Stainless steel |
Material: |
GCr15 bearing steel |
Precision |
P0,P6,P5,P4 |
Sealing |
Open,Z,2Z,RS,2RS |
Clearance: |
C2 ,C3, C4 ,C5 |
Quality standard |
ISO9001:2000 standard |
Service |
OEM service, Customer design service, buyer label service |
Payment terms |
A:100% L/C at sight B: 30% T/T in advance .70% against copy of B/L C:according to your requirement |
Application |
Heavy machine tool, high-powered marine gear case, oil rig, vertical machine. |
Details |
Mine machine, port hoisting machine, port transfer equipment, crane; |
|
We have complete process for the production and quality assurance to make sure our products can meet your requirement. We are committed to be responsible for each set of bearings and industrial products sold to our clients. Relying on strong resource network, we can supply any bearing that you need. Meeting each customer' satisfaction is our pursuit! |
Applications:
Equipment,onshore and offshore crans,excavator,concrete machine,paper machine,plastic and rubber machine,weave machine,steel plant,electronic power plant,wind power generation,Automatic daily solarpower installtiions,other construction and industry machines or equipment.
We can supply all kinds of famous brands,.
