slewing rings and turntable bearings YRT650 mechanism price
YRT850 slewing rings and turntable bearings YRT650 mechanism price :
New code |
YRT650 |
|---|---|
Old code |
YRT650 |
Id (mm) |
650 |
OD (mm) |
870 |
B (mm) |
122 |
Cr(kN) |
- |
Cor(kN) |
- |
Speed for grease lubrication (r/min) |
- |
Oil lubrication speed (r/min) |
- |
Weight:KG |
170kg |
|
The type of YRT rotary table YRT series are as below: YRT50,YRT80,YRT100,YRT120,YRT150,YRT180,YRT200,YRT260,YRT325,YRT460, YRT580,YRT650,YRT850,YRT950,YRT1030 YRTS series: YRTS50,YRTS80,YRTS100,YRTS120,YRTS150,YRTS180,YRTS200,YRTS260,YRTS325,YRTS460,YRTS580,YRTS650,YRTS850,YRTS950,YRTS1030 ZKLDF series: ZKLDF100, ZKLDF120, ZKLDF150, ZKLDF200, ZKLDF260, ZKLDF325, ZKLDF395, ZKLDF460 YRTM series: YRTM50,YRTM80,YRTM100,YRTM120,YRTM150,YRTM180,YRTM200,YRTM260,YRTM325,YRTM460,YRTM580,YRTM650,YRTM850,YRTM950,YRTM1030 |
Features of slewing rings and turntable bearings YRT650 mechanism price :
Component |
YRT bearing consist of a thrust/radial housing washer, a thrust/radial shaft washer, a thrust washer, two axial needle roller and cage assemblies and a group of radial cylindrical roller |
Details |
Housing washer and shaft washer have bolt holes for install equally spacer. This kind of bearing has high axial load and radial load, and high tilting rigidity and high precision. This bearing request higher quality of the parts matches it. You must control screw tightening torque when install it. |
Application |
This bearing can be used to the machine tool or other high precision machinery of the rotary table or sub-set, and also can be used for chuck, measuring instruments and test equipment and rotary table configuration. |
Packing |
First lubricated, Second circled with plastic film/Kraft paper/blue belt, and then packaged in plywood case, last gathered in Wooden pallet |
Delivery time |
1-35 days after prepayment |
Technical data of slewing rings and turntable bearings YRT650 mechanism price :
We are professional in manufacturing slewing bearings.

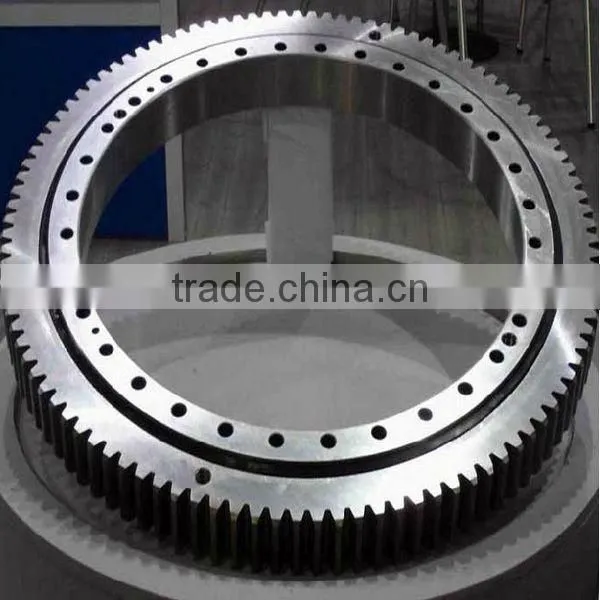

four point contact ball slewing bearing (gearless, external gear, internal gear)
double row ball slewing bearing
crossed cylindrical roller slewing bearing
crossed tapered roller slewing bearing
three row cylindrical roller slewing bearing (gearless, external gear, internal gear)
ball and cylindrical roller combined slewing bearing
Bearing No. |
Principal dimension(mm) |
Weight (kg) |
|||||||
d |
D |
H |
H1 |
C |
d 1 |
dn |
dm |
||
YRT50 |
50 |
126 |
30 |
20 |
10 |
105 |
63 |
116 |
1.6 |
YRT80 |
80 |
146 |
35 |
23.35 |
12 |
130 |
92 |
138 |
2.4 |
YRT100 |
100 |
185 |
38 |
25 |
12 |
160 |
112 |
170 |
4.1 |
YRT120 |
120 |
210 |
40 |
26 |
12 |
184 |
135 |
195 |
5.3 |
YRT150 |
150 |
240 |
40 |
26 |
12 |
214 |
165 |
225 |
6.2 |
YRT180 |
180 |
280 |
43 |
29 |
15 |
244 |
194 |
260 |
7.7 |
YRT200 |
200 |
300 |
45 |
30 |
15 |
274 |
215 |
285 |
9.7 |
YRT260 |
260 |
385 |
55 |
36.5 |
18 |
345 |
280 |
365 |
18.3 |
YRT325 |
325 |
450 |
60 |
40 |
20 |
415 |
342 |
430 |
25 |
YRT395 |
395 |
525 |
65 |
42.5 |
20 |
486 |
415 |
505 |
33 |
YRT460 |
460 |
600 |
70 |
46 |
22 |
560 |
482 |
580 |
45 |
YRT580 |
580 |
750 |
90 |
60 |
30 |
700 |
610 |
720 |
89 |
YRT650 |
650 |
870 |
122 |
78 |
34 |
800 |
680 |
830 |
170 |
YRT850 |
850 |
1095 |
124 |
80.5 |
37 |
1018 |
890 |
1055 |
253 |
YRT950 |
950 |
1200 |
132 |
86 |
40 |
1130 |
990 |
1160 |
312 |

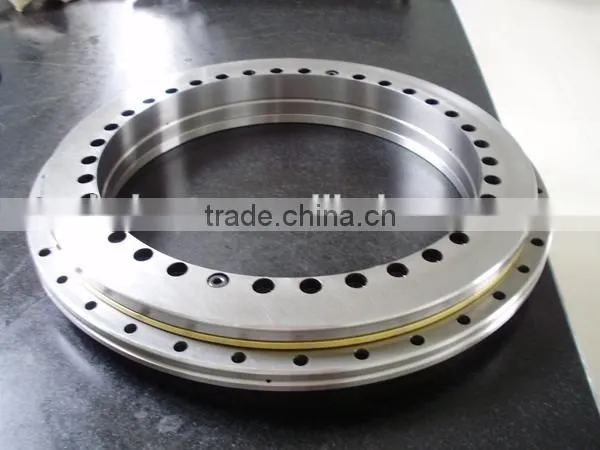

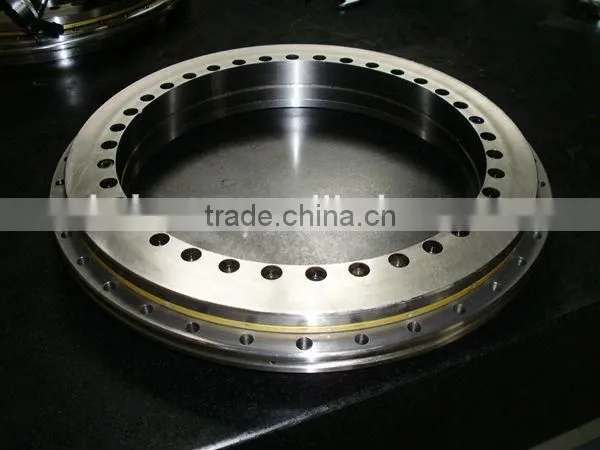

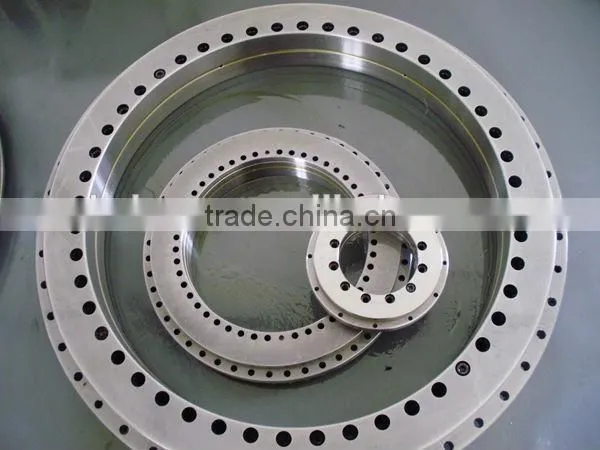

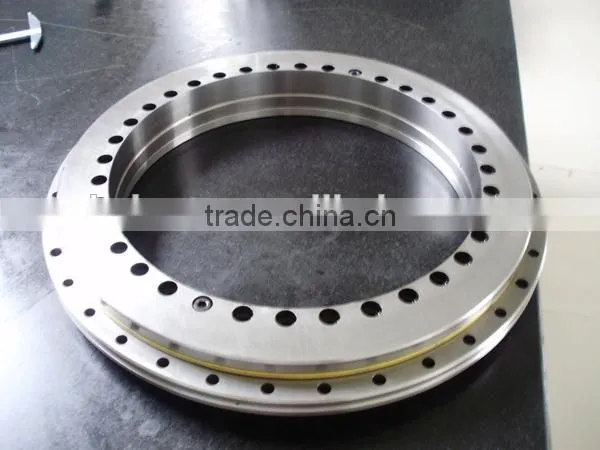

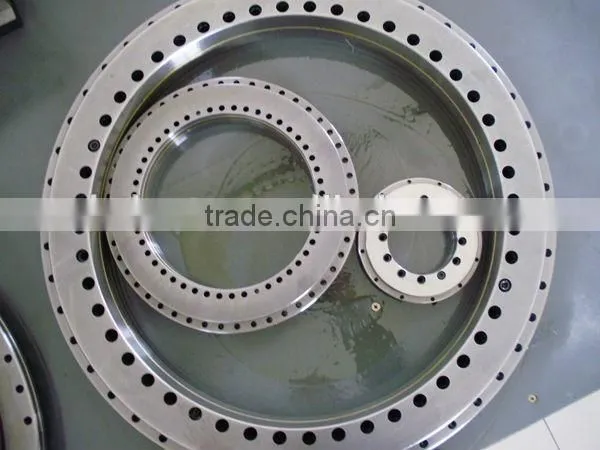

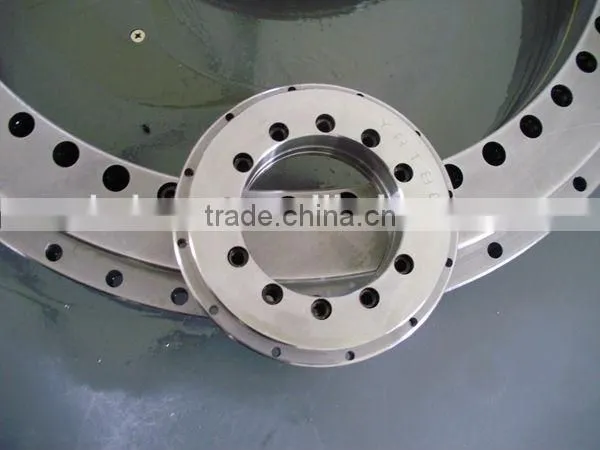

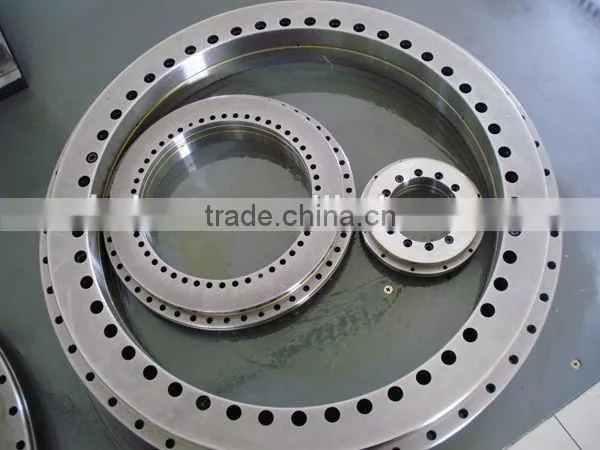

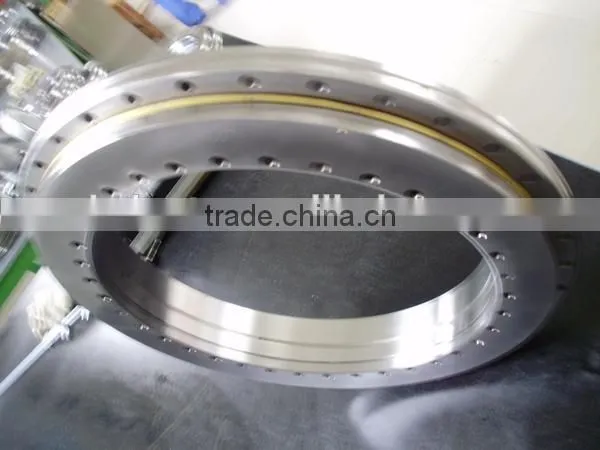

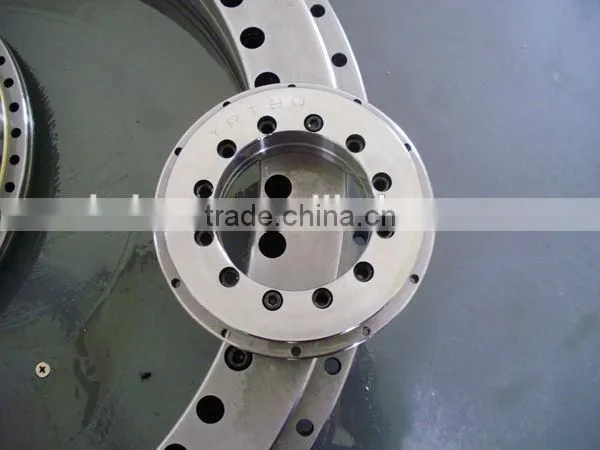

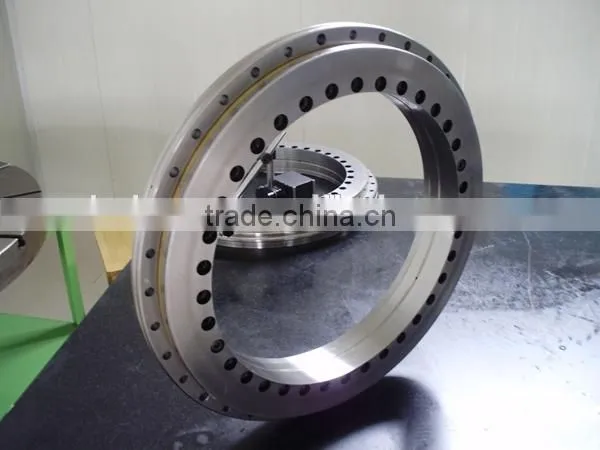

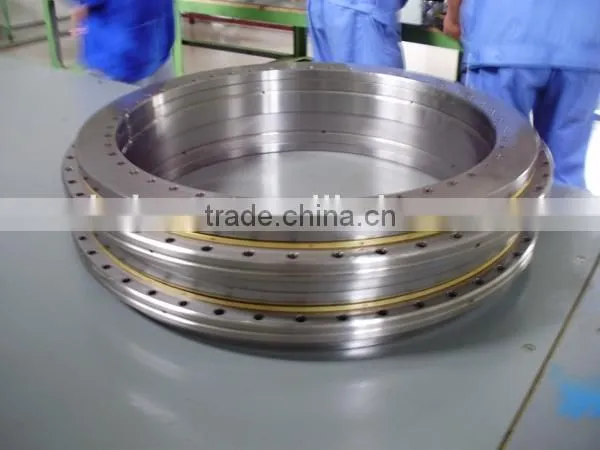

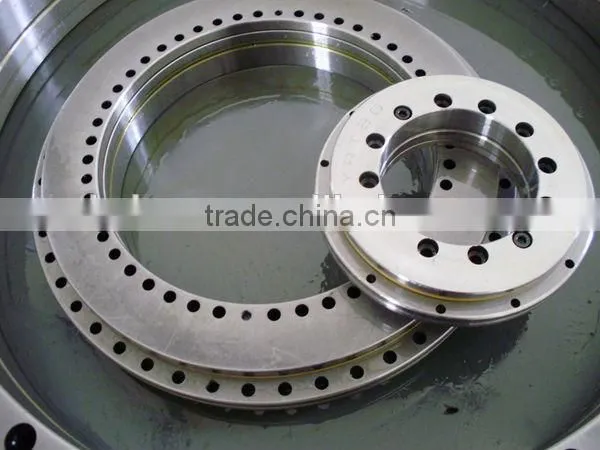

turntable slewing bearing for excavator manufacturers YRT850 pictures:
Jinan Kelunte Bearing Co., Ltd. is a professional bearing manufacturer and is engaged in the imported bearings. Our company is engaged in the imported bearings,company's main imported Roller Bearing,Ball Bearing,deep groove ball bearings,taper roller bearings,angular contact ball bearings,Pillow Block Bearing,Ceramic Bearing,cylindrical roller bearing, spherical roller bearing . and our brands:CLUNT.
We are the professional supplier of BEARING with high precision quality and pretty competitive price.
We have export the bearings to the European & American Markets/Middle East Market/Asia Market.
We can supply the following bearings.
1. Deep groove ball bearings (68series,69series,60series,62series,63series,64series)
2.Tapered roller bearing(320 series,322 series,323 series)
3.Linear bearing
4.Thrust ball bearing(511 series,512 series,513 series)
5.Cylindrical roller bearing(NU10 series,NJ2 Series,N3 series,NN series
6.Needle roller bearing
7.Angular contact ball bearing(70 series.72 series.73 series.74 series)
8.Spherical roller bearing
9.Thurst roller bearing
10.Spherical ball bearing(230 series,222series,223series)
11.pillow block bearing(UCP series,UCF series,UCT series,UCFL series)
