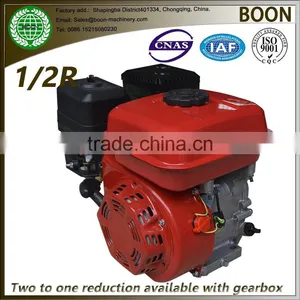

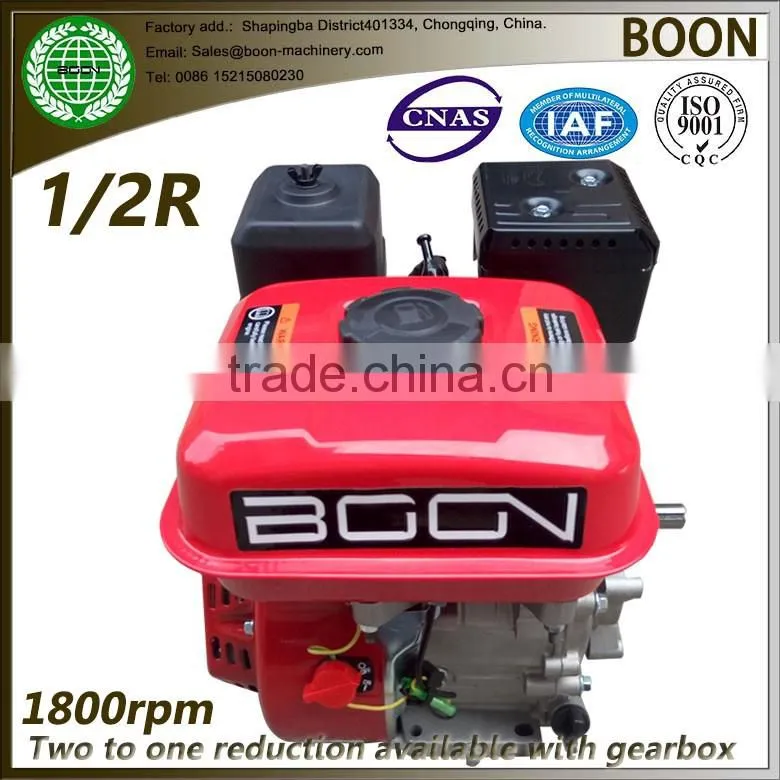

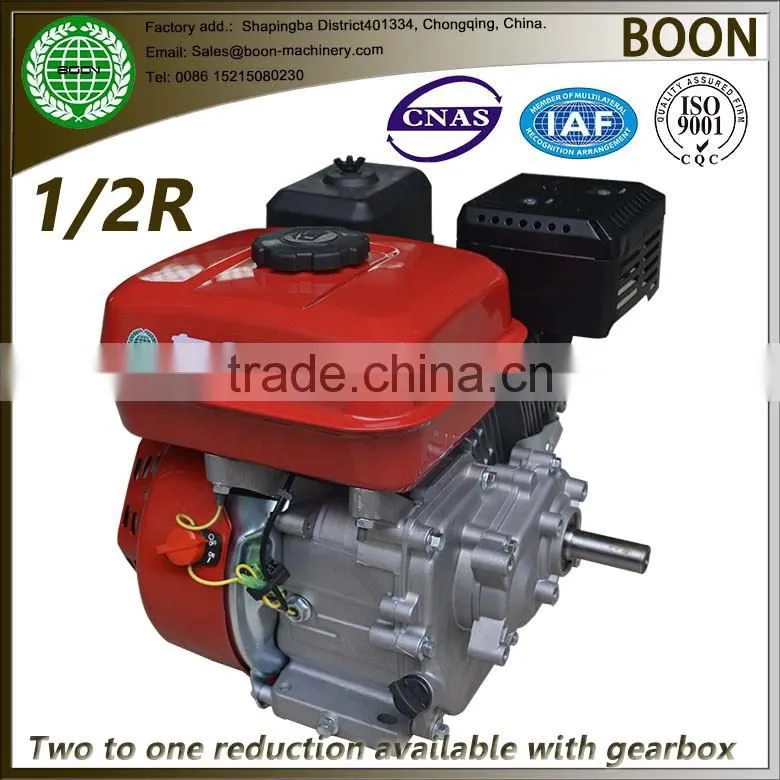

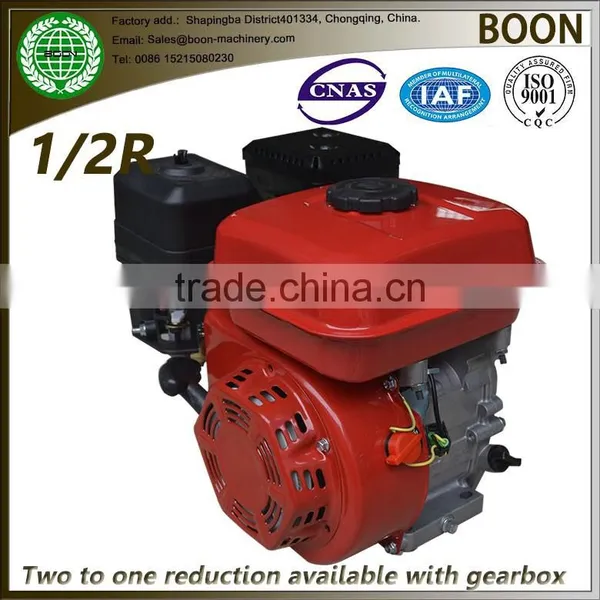

Horizontal Type 4 Stroke Air Cooled Single Cylinder Agriculture Use Gasoline 168F-L Small Engine With Gearbox

Horizontal Type 4 Stroke Air Cooled Single Cylinder Agriculture Use Gasoline 168F-L Small Engine With Gearbox thumbnail-1
Horizontal Type 4 Stroke Air Cooled Single Cylinder Agriculture Use Gasoline 168F-L Small Engine With Gearbox thumbnail-2
Horizontal Type 4 Stroke Air Cooled Single Cylinder Agriculture Use Gasoline 168F-L Small Engine With Gearbox thumbnail-3
Horizontal Type 4 Stroke Air Cooled Single Cylinder Agriculture Use Gasoline 168F-L Small Engine With Gearbox thumbnail-4
Horizontal Type 4 Stroke Air Cooled Single Cylinder Agriculture Use Gasoline 168F-L Small Engine With Gearbox photo-1
Horizontal Type 4 Stroke Air Cooled Single Cylinder Agriculture Use Gasoline 168F-L Small Engine With Gearbox photo-2
Horizontal Type 4 Stroke Air Cooled Single Cylinder Agriculture Use Gasoline 168F-L Small Engine With Gearbox photo-3
Horizontal Type 4 Stroke Air Cooled Single Cylinder Agriculture Use Gasoline 168F-L Small Engine With Gearbox photo-4
US$ 50 - 196 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Usage:
Other, Agriculture/Indestry
Fuel:
Gasoline
Contact Supplier Request Quote Chat Now
Chongqing Boon Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
CHONGQING
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Usage Other, Agriculture/Indestry
Fuel Gasoline
Stroke 4 Stroke
Cylinder Single Cylinder
Cold Style Other, Air-cooled
Start Other, kick/electric start
Place of Origin Chongqing, China
Brand Name BOON
Model Number BN168F-L
Dimension(L*W*H) 400*370*375
Weight 16kg
Certification ISO9001
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Main model: BN168F-L, BN190F-L.

1800rpm, horizontal shaft, air cooled, ohv type

One year warranty with spare parts provided.



Horizontal type 4 stroke air cooled single cylinder agriculture use gasoline 168F-L small engine with gearbox

Product Description

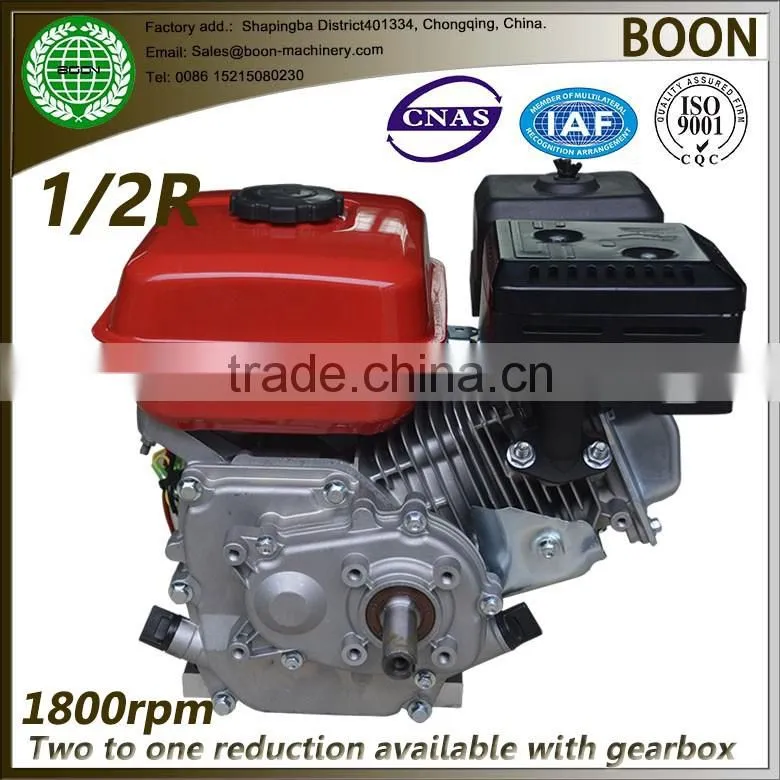

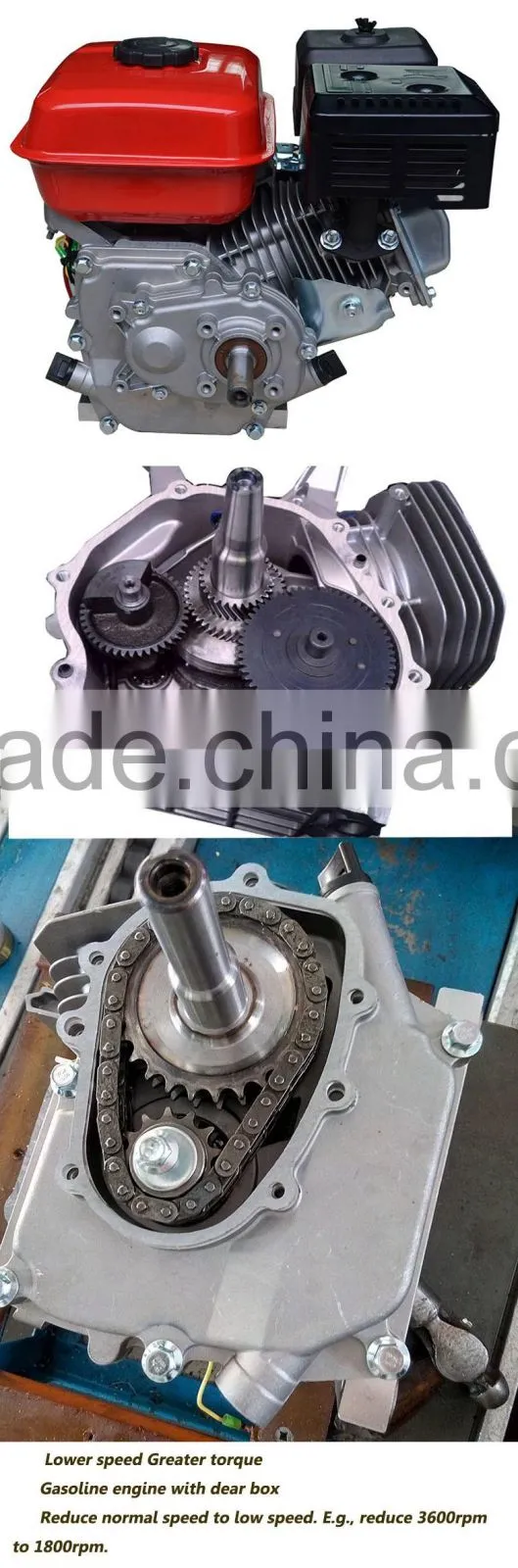

Two to one reduction available with gearbox-The speed of gasoline engines are reduced by gearbox.

Main parts

BOON brand 168F-L and 190F-L gasoline engines are widely used in agriculture and industry. The engines is easy to start, reliable and durable with high working efficiency and strong power.

Horizontal type 4 stroke air cooled single cylinder agriculture use gasoline 168F-L small engine with gearbox

 Application

Widely application range----Boon gasoline engine series cover a broad application range as power of machines. Specialized in Gasoline Generator Sets, Water Pumps, Tillers/Cultivators, Washing machine, threshing machine, Tamping machine and some other garden machines or industry machines.

Horizontal type 4 stroke air cooled single cylinder agriculture use gasoline 168F-L small engine with gearbox



Engine Specification

Model

BN168F-L

BN190F-L

Bore*Stroke (mm)

68*54

90*66

Displacement(cc)

196

420

Compression ratio

8.5:1

8.3:1

Max output(hp/kw/rpm)

6.5(4.8)/1800

16(11.8)/1800

Rated output(hp/kw/rpm)

5.5(4.0)/1800

11(8.1)/1800

Max torque(N.m/rpm)

20/2500

48/2500

Fuel capacity(L)

3.6

6.5

Oil capacity(L)

0.6

1.1

Ignition method

Transistorized magneto

Starter type

Recoil/Electric

Recoil/Electric

Engine type

Single cylinder, 4-Stroke, Forced air cooled, OHV

Gross weight

18

33

Demension(mm)

400*370*375

490*430*510

Horizontal type 4 stroke air cooled single cylinder agriculture use gasoline 168F-L small engine with gearboxHorizontal type 4 stroke air cooled single cylinder agriculture use gasoline 168F-L small engine with gearboxHorizontal type 4 stroke air cooled single cylinder agriculture use gasoline 168F-L small engine with gearbox

Company Information

Chongqing Boon Machinery Co., Ltd, which is a professional joint-stock manufacturer of universal machine and farming machine, is located in the production base of farming machines and micro-machines in Shapingba District of Chongqing, China.

Horizontal type 4 stroke air cooled single cylinder agriculture use gasoline 168F-L small engine with gearboxHorizontal type 4 stroke air cooled single cylinder agriculture use gasoline 168F-L small engine with gearbox

Products Range

Power Generator, welding generator, silenced generator, power tiller, water pump, power engine, concrete vibrator and related parts.

Gasoline generator power range: 0.7 kw-10kw

Power tiller horse power range: 5 hp-15 hp

Water pumps size range: 1.0 inch-4.0 inch

Engine horse power range: 2.5 hp-22 hp

Concrete vibrator horse power range: 7 hp.

Packaging & Shipping

Each engine is wrapped in poly bag, then into carton with Owners Manual in it and outsie with strapping. Wooden case optional for sample.

Fast delivery time: Samples delivery in 1 or 2 days. Large quantity delivery 3-18 days.

FAQ

 Q1: Where is your factory?

A1: Factory located in Chongqing, China. The nearest port is Chongqing port.

Q2: What's your MOQ?

A2: 1 set is ok. 1CBM is recommended for saving your shipping cost.

Q3: What's your payment terms?

A3: T/T. Large quantity 30% T/T deposit in advance,the balance payment before delivery.  Other payment is negotiable.

Our Services



1. OEM is ok. We could provide oem for your brand after your authorization.

2. Spare parts will be provided per your requirements.

3. Technology support for long-term cooperation friends.
