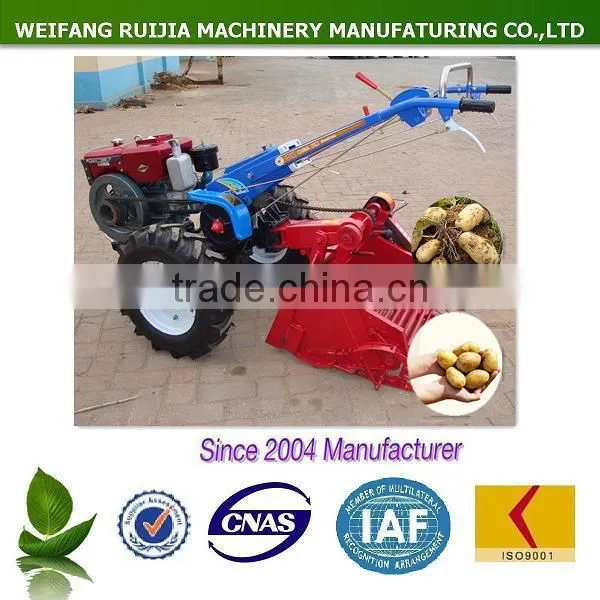

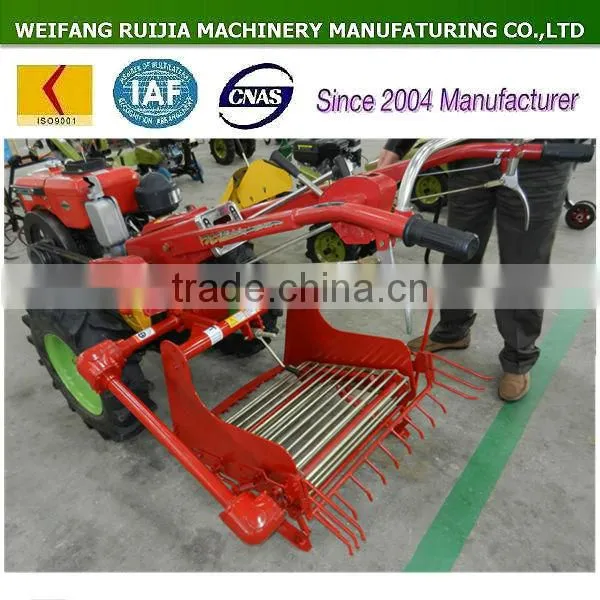

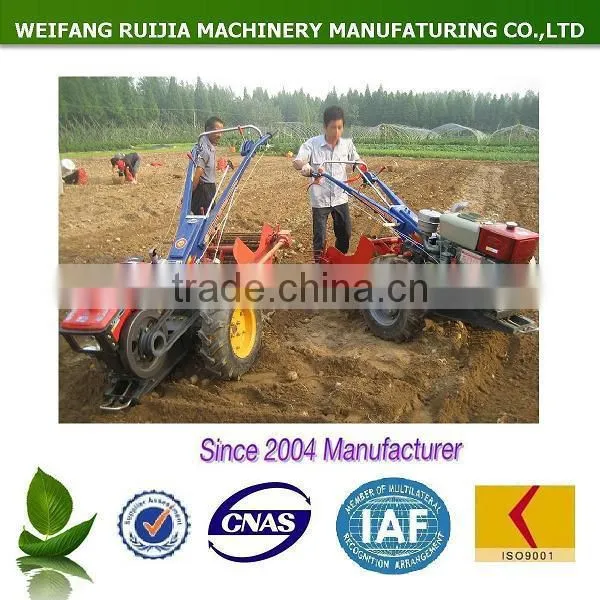

Help Center2015 New Made Potato Harvester of Walking Tractors, Air Cooled Diesel Tractor With Single Row Potato Harvesting Machine !
Related Products
-
Best Selling New Mower Machine Rotation ! China Diesel Air Cooled or Water Cooled Walking Tractor With Lawn Mower for Sale !US$ 150 - 1,200MOQ: 1 Set -
Shandong Tractor Mower,lawn Mower for Walking TractorUS$ 90 - 1,500MOQ: 1 Set
-
China Shandong Factory Price Potato Harvesteer Used of Sale! Diesel Engine 2wd Tractors With Potato Harvester for Sale!US$ 350 - 700MOQ: 1 Set
-
China Cheap Price Mini Potato Seeder for Sale! Good Quality Walking Tractors With Potato Seeding Machine !US$ 180 - 580MOQ: 1 Set
-
Hot Selling Good Quality Rotary Ditcher for Walking Tractors! 2WD Tractors With Trencher for Sale!US$ 150 - 300MOQ: 1 Set

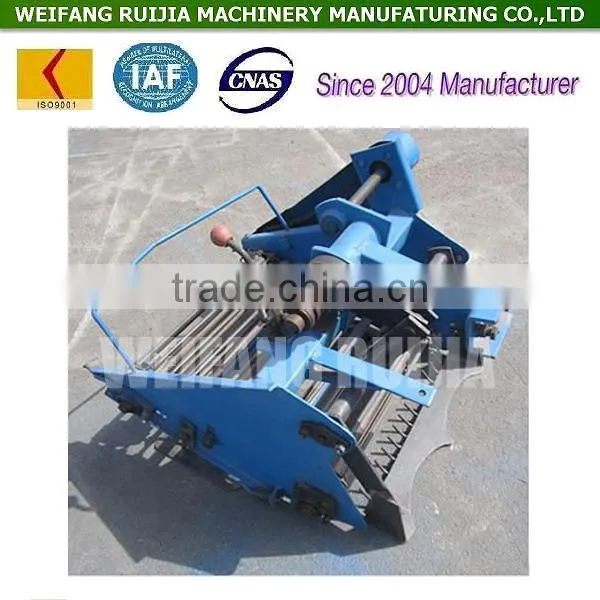

Specifications Of Potato Harvester
Number of rows |
Single row(with walking tractor) |
line spacing(cm) |
50-60 |
Productivity(mu/hr) |
3-5 |
G.W.(kg) |
100 |
Matched Power(hp) |
8-15 |
Working depth(cm) |
20 |
Working width(cm) |
60 |
Broken rate |
≤2% |
Clear Rate |
≥96% |
Power output speed(r/min) |
1000 |
Dimension (mm) |
900*700*700 |

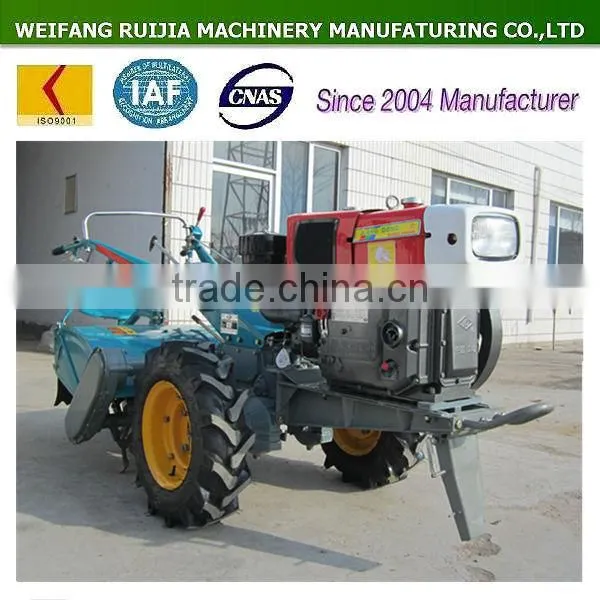

Specifications Of Matched walking Tractor
101B-3 Model walking tractor(8-15HP):
Name |
Unit |
Parameter |
Model |
/ |
101B-3 |
Overall Dimension |
mm |
2120*840*1160 |
Construction Weight |
kg |
255 |
Rated Power |
kW/HP |
5.88-11/8-15 |
Type |
/ |
Dual-purpose for both traction and drive |
Wheel Track |
mm |
680-850 |
Min.ground Distance |
mm |
210 |
Tyre Type |
/ |
6.00-12 |
Tyre Pressure |
KPa |
100-120(field work), 180-200(Transportation work) |
Gear (forward/reverse) |
/ |
6/2 |
Gear speed |
km/h |
Forward:1.68,2.61,4.22,6.79,10.57,17.08 Reverse:1.29,5.22 |
Engine and Clutch Connection |
/ |
Leather Belt |
Starting Model |
/ |
Hand Starting/Electrical Starting |
Clutch Type |
/ |
Dry Friction |
Gear Box |
/ |
(3+1)*2 |
Diesel Engine Weight |
kg |
80-105 |
Air Cylinder No. |
Cylinder |
1 |
Rated Speed |
R/Min |
2300 |
Cooling Model |
/ |
Water-cooled/ Condensing cooled |
DF model walking tractor(15-22HP):
Item |
Unit |
Parameter |
Model |
/ |
Dongfeng / DF model |
Overall Dimension |
mm |
2680*960*1250 |
Construction Weight |
kg |
330 |
Rated Power |
kW/HP |
11-16.1/15-22 |
Type |
/ |
Dual-purpose for both traction and drive |
Wheel Track |
mm |
580-800 |
Min.ground Distance |
mm |
182 |
Tyre Type |
/ |
6.00-12 |
Tyre Pressure |
KPa |
100-120(field work), 180-200(Transportation work) |
Gear (forward/reverse) |
/ |
6/2 |
Gear speed |
km/h |
Forward:1.95,3.40,5.70,7.30,13.00,21.70 Reverse:1.56,5.60 |
Engine and Clutch Connection |
/ |
Leather Belt |
Starting Model |
/ |
Hand Starting/Electrical Starting |
Clutch Type |
/ |
Dry Friction |
Gear Box |
/ |
(3+1)*2 |
Diesel Engine Weight |
kg |
150-170 |
Air Cylinder No. |
Cylinder |
1 |
Rated Speed |
R/Min |
2200 |
Cooling Model |
/ |
Water-cooled/ Condensing cooled |
The Goods Will Be Packed Into 20' OR 40' CTNRS And Will Be Sent To U OR UR Good Company By CNTNR Ships.
Weifang Ruijia Machinery Manufacturing Co., Ltd was established in 2004, and devotes to the supplying of farm machines for more than ten years.
We strive to provide customers with farm machines and the attachments which meet the customer’s expectations and satisfaction.
Our main products include walking tractors, power tillers, rotary cultivators, tiller cultivators, micro tillage machines, rural management machines, etc.
1. Q:What's the type of your power ?
A:101B-3,Dongfeng.
2. Q: What's your power range ?
A: We can offer the power rated range from 8 to 22HP.
3. Q:What’s your payment item ?
A: T/T, L/C.
4. Q:What’s your delivery time ?
A: Within 20 days after receiving the deposit.
5. Q:Do you have export experience?
A: Yes, more than10 years of exporting experience. We have exported our products to Ukraine, Russian, Armenia, Algeria, Nigeria, South Africa, United States of America, Peru, Mexico, Saudi Arabia and many other countries.
