Home > Electrical & Electronics > Relay & Contactor > Relay > Three Phase Monitoring Relay DPA71DM48

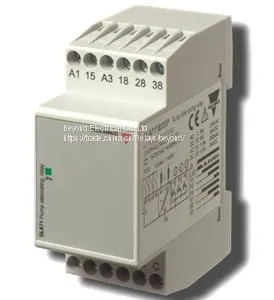

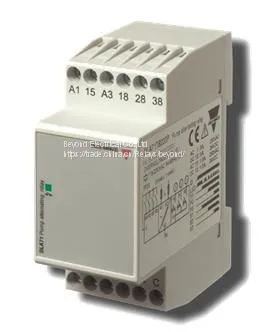

Three Phase Monitoring Relay DPA71DM48
US$ 45 - 48
MOQ: 200 Pieces
Key Specifications
Get Latest Price
Brand Name:
CARLO
Place of Origin:
China
Model Number:
DPA71DM48
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
3 days
Related Products
-
Overcurrent Relay DIA53S724US$ 32 - 35MOQ: 200 Pieces -
Three Phase Monitoring Relay With Undervoltage Protection HCM2101S1101US$ 45 - 48MOQ: 200 Pieces
-
Three Phase Monitoring Relay FDPM44US$ 23 - 25MOQ: 200 Pieces
-
Three Phase AC Solid State Relay MDI 3PSS60A75US$ 50 - 55MOQ: 200 Pieces
-
Three Phase Voltage Relay DPB71CM48US$ 48 - 50MOQ: 100 Pieces
Brand Name
CARLO
Place of Origin
China
Model Number
DPA71DM48
Size
Miniature
Usage
General Purpose
Contact Load
High Power
Protect Feature
Other, enclosure
Theory
Voltage Relay
Introduction:
Three phase relay for detection of incorrect phase sequence, total and partial phase loss. Supply range from 208 to 480VAC,
Covered by 2 models. for mounting on DIN rail.Housing 35.5 mm wide,DPDT relay output, suitable for back and front panel
Mounting. the device detects regenerated voltage up to 85% of the nominal voltage
Property:
Three phase monitoring relay for phase sequence and phase loss
Detects when all phases are present and have the correct sequence
Measures its own power supply
Power supply range: 208 to 480 VAC
Output: 5 A DPDT relay normally energized
for mounting on DIN rail in accordance with DIN EN 50 022
35.5 mm DIN rail housing
LED indication for relay and power supply ON
