MG400A One-way Bearing for High Speed Application

MG400A One-way Bearing for High Speed Application thumbnail-1
MG400A One-way Bearing for High Speed Application photo-1
US$ 1 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Suma
Bore Size:
0.625,
Outside Diameter:
3.500,
Contact Supplier Request Quote Chat Now
Changzhou Suma Precision Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai ; Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Suma
Bore Size 0.625,
Outside Diameter 3.500,
Model Number MG400A one-way bearing
Precision Rating P6
Seals Type sealed ZZ
Place of Origin Jiangsu, China

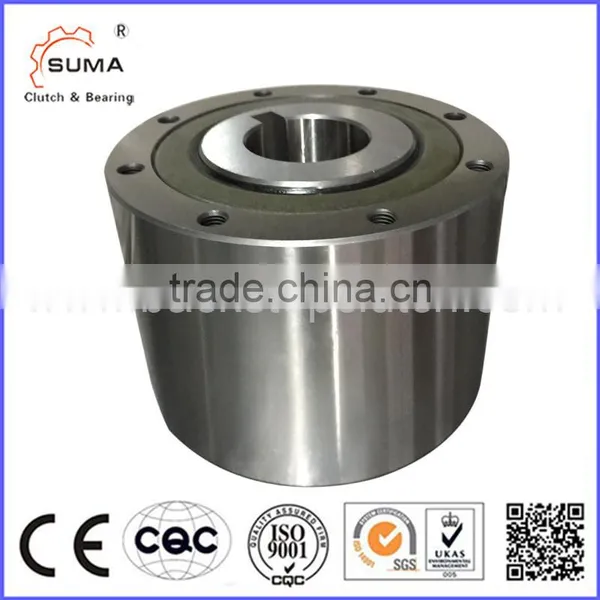

MG400A one-way bearing for high speed application

Product Description



  MG400A one-way bearing for high speed application
Details
Model MG400A
Material GCr15
Type sprag
Inner Diameter 0.625inch
Outer Diameter 3.5inch
Weight 6lbs
Width 2.75inch

Max

Overrunning

 Inner Race 2700rpm
Outer Race 800rpm
Application general machinery,packing machinery,printing machinery,conveyor machinery,high pressure switch,etc.





Features

1.      Self-contained clutch designed for high speed applications.

2.      Cam cage assembly engineered for optimum performance and increased capacity.

3.      Two ball bearings included to support radial load and concentricity between races.

4.      Positive contact lip or felt seals provided for grease or oil lubrication.

5.      Tapped holes are machined on ends of outer race for mounting auxiliary components.

6.      Metric bore and keyway available.

7.      Mounting accessories available.



Industries Served

Corrugated

Food and beverage

Glass manufacturing

Packaging

Paper converting

Printing

Aggregate



Field Applications

Amusement rides

Auxiliary drives

Conveyors

Food Processing

Heat treat furnaces

HVAC systems

Packaging machinery

Start-up drives

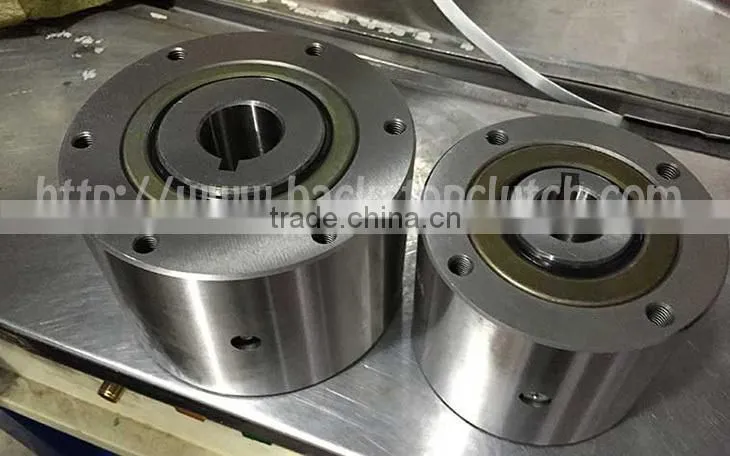

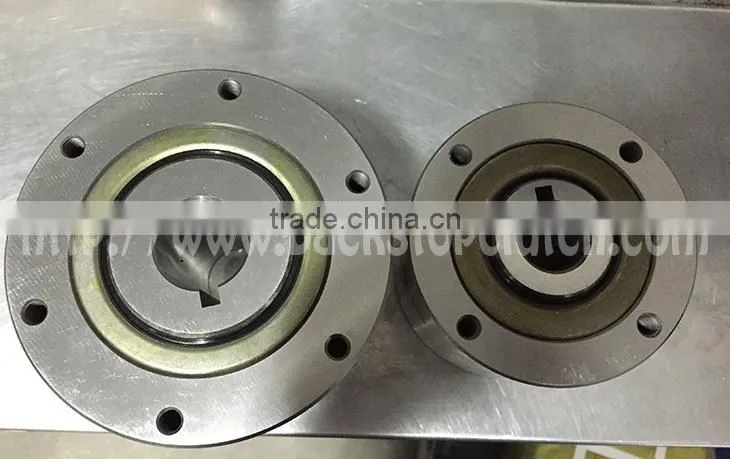

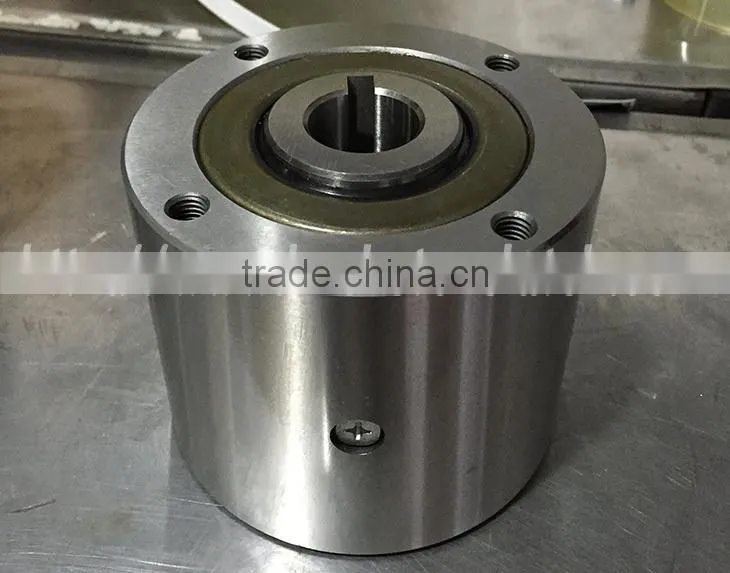

MODELS M300A – M700A  Detail Images

 MG400A one-way bearing for high speed applicationMG400A one-way bearing for high speed applicationMG400A one-way bearing for high speed application

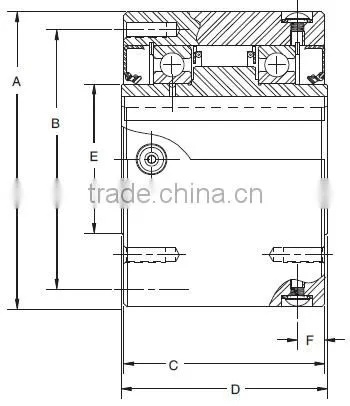

Main Technical Specification



MG400A one-way bearing for high speed application



Model Dimensions No.of Tap(Mt.) Holes Thread Size Usable Thread Depth Lube Lube Cap Oz Weight
No.  C  D E  F
  Inches mm Inches mm Inches mm Inches mm Inches mm Inches mm lbs kg
MG300A 2.375 60.33 2.5 63.5 1.125 28.58 0.35 8.9 4 0.250-28 6.35-711 0.5 12.7 Oil 0.85 4 2
MI300A Oil 1.25
MO300A Grease 0.5
MR300A Oil 0.85
MG400A 2.625 66.68 2.75 69.9 1.25 31.75 0.45 11.4 4 0.313-24 7.94-610 0.625 15.88 Oil 1.1 6 3
MI400A Oil 1.4
MO400A Grease 0.5
MR400A Oil 1.1
MG500A 3.375 85.73 3.5 88.9 1.75 44.45 0.48 12.4 4 0.313-24 7.94-610 0.625 15.88 Oil 1.8 11 5
MI500A Oil 3
MO500A Grease 1
MR500A Oil 1.8
MG600A 3.625 92.08 3.75 95.3 2.75 69.85 0.5 12.7 6 0.313-24 7.94-610 0.625 19.05 Oil 2.8 19 9
MI600A Oil 4.5
MO600A Grease 1.5
MR600A Oil 2.8
MG700A 4.875 123.83 5 127 4 101.6 0.68 17.3 8 0.375-24 9.53-610 0.75   Oil 4.6 43 20
MI700A Oil 10.9
MO700A Grease 2.9
MR700A Oil 4.6

  The M Series ball bearing clutches contain precision formed cams made from high quality steel that are hardened then precision finished. Our most versatile and custom configurable clutch, this unit is the workhorse of the industry. The unique finishing process provides a smooth cam surface resulting in uniform contact with the races, providing even load distribution and prolonged wear life. These clutch models are designed to mount on through shafts and are secured to the shaft by a matching key provided with each stock bore clutch. Grease lubrication for each series can be provide at no additional cost.





MG300A – 700A Series Primarily used for general duty applications, Overrunning, back-stopping and light duty indexing. The MG model offers precise spring energizing to provide long overrunning wear life.







MI300A – 700A Series Recommended for high performance indexing, used on applications greater than 150 strokes per minute or applications requiring high indexing accuracy. Incorporating a patented, low inertia



cage and heavy duty energizing spring for quick cam reaction.







MO300A – 700A Series Made with felt grease seals to minimize seal drag for high speed inner race overrunning applications. The MO model is delivered with standard grease lubrication.







MR300A – 700A Series



Intended for high-speed outer race overrunning, incorporating a unique cam cage construction that uses centrifugal force to minimize cam drag .The driving speed of the clutch cannot exceed the rpm shown in the table for the inner race.





Model No. Torque Capacity Maximum Nominal Stock Bores­1 Keyways1 Dimensions
Overrunning rpm Overrunning Drag A B
Lb-ft N-m Inner Race Outer Race Lb-ft N-m Inches mm Inches mm Inches mm Inches mm
MG300A 275 373 2900 800 0.17 0.2 0.5 12.7 0.125×0.167  3.18×4.24 3 76.15 25 66.68
MI300A - - 0.625 15.88 0.188×0.094 4.76×2.38 2.998 /76.20 /8
MO300A 3600 800 0.75 19.05 0.188×0.094 4.76×2.38
MR300A 800 2900
MG400A 400 542 2700 800 0.21 0.3 0.625 15.88 0.188×0.094 4.76×2.38 3.5 88.85 27 73.03
MI400A - - 0.75 19.05 3.498 /88.90 /8
MO400A 3600 800 0.875 22.23
MR400A 800 2700
MG500A 1175 1593 2400 750 0.38 0.5 0.875 22.23 0.188×0.094 4.76×2.38 4.25 107.9 35 92.08
MI500A - - 1 25.4 0.25×0.125 4.76×2.38 4.248 /107.95 /8
MO500A 3000 750 1.125 28.58 0.25×0.125 6.35×3.18
MR500A 750 2400 1.25 31.75 0.25×0.125 6.35×3.18
MG600A 2250 3051 1800 700 0.63 0.9 1.25 31.75 0.25×0.125 6.35×3.18 5.375 136.47 43 120.65
1.375 34.93 0.313×0.156 7.94×3.97 5.373 /136.53 /4
MI600A - - 1.5 38.1 0.375×0.188 9.53×4.76
    1.625 41.28 0.375×0.188 9.53×4.76
MO600A 2400 700 1.75 44.45 0.375×0.188 9.53×4.76
1.937 49.2 0.50×0.188 9.53×4.76
MR600A 700 2100 2 50.8 0.50×0.188 12.7×4.76
MG700A 5000 6779 1200 400 1.3 1.8 2 50.8 0.50×0.250 12.7×6.35 7.125 180.92 61 158.75
MI700A - - 2.25 57.15 0.50×0.250 12.7×6.35 7.123 180.98 /4
2.437 61.9 0.50×0.250 12.7×6.35
MO700A 20000 400 2.5 63.5 0.625×0.313 15.88×7.94
2.75 69.85 0.625×0.313 15.88×7.94
MR700A 400 1750 2.937 74.6 0.625×0.125 15.88×3.18





Company Information

 Changzhou Suma Precision Machinery Co., Ltd is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and needle roller bearing with high technology

 MG400A one-way bearing for high speed application



MG400A one-way bearing for high speed application
package

 MG400A one-way bearing for high speed application

Certifications

MG400A one-way bearing for high speed application

FAQ

Q: Why do we choose your company?

A: We always insist quality firstl. We have our bearing factory, therefore we have advantage in quality control and price of cylindrical roller bearing.



Q:What is the delivery time?

A: Most of the bearing we have stock. For small quantity, we will arrange delivery within 15 days.



Q: What is your payment term?

A: Our payment term include L/C, T/T, Western Union, Paypal etc.



Q: Can you send bearing samples first?

A: Yes, we can send bearing samples of SL cylindrical roller bearing to check quality first.
