FRHD 800 Cam Clutch Bearing Used as Backstopping Clutch
US$ 100 - 2,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Suma
Model Number:
FRHD 800
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai ; Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RA 473 Z Bearing Steel Clutch Bearing Supplier in ChinaUS$ 30 - 80MOQ: 1 Piece -
ALP200F7D7 One Way Clutch Bearing for Changzhou Industrial MachineryUS$ 10 - 100MOQ: 1 Piece
-
Internal Freewheels FDE for Assembly With SpragsUS$ 5 - 50MOQ: 1 Piece
-
Packing Machine TGC-D2590 One Direction Roller Bearing With Spline GrooveUS$ 20 - 500MOQ: 1 Piece
-
FBL Complete Freewheels Ball Bearing With Shaft CouplingUS$ 20 - 1,000MOQ: 1 Piece
Place of Origin
Jiangsu, China
Brand Name
Suma
Model Number
FRHD 800
Product Description

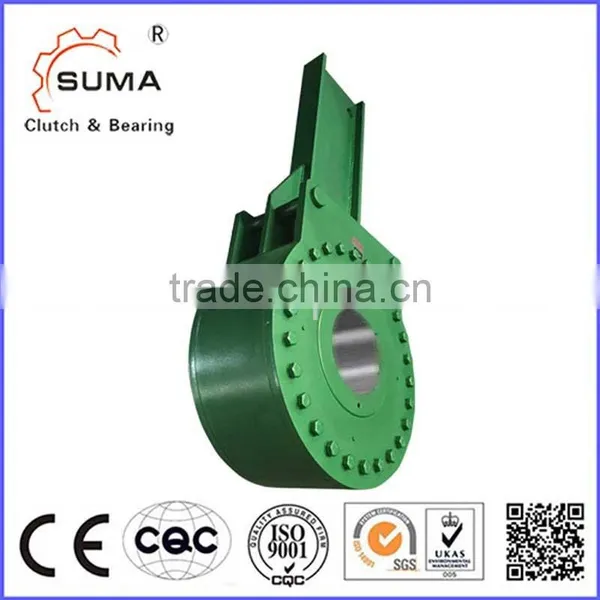

MODEL : FRHD 800 Cam Clutch Bearing
Features
Complete Freewheels FRHD with torque arm are sealed sprag freewheels with ball bearings. The
are supplied oil-filled and ready for installation. The freewheels are arranged on through shafts or shaft ends.
The freewheels FRHD are used as:
Backstops
for low-speed applications. They are designed for use on inclined conveyor-belt systems, elevators and pumps. Taconite seals protect the backstops when conditions are dirt
and dusty.
Maximum torques up to 1 800 000 lb-ft.
Bores up to 21 inch.
Application example

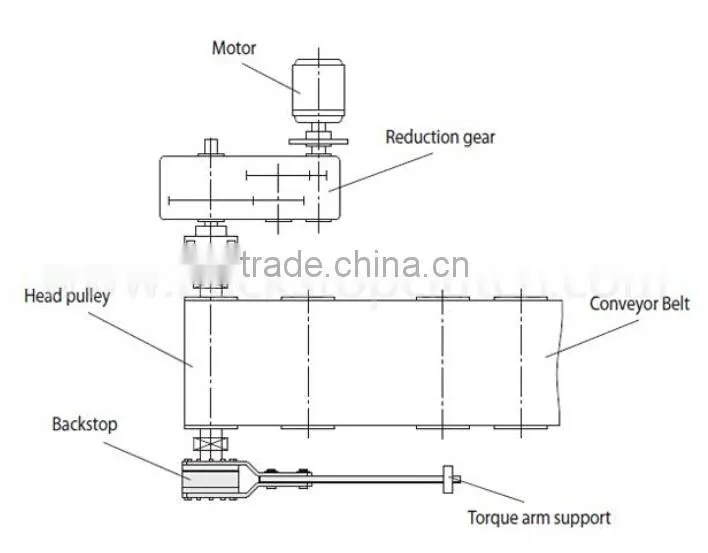

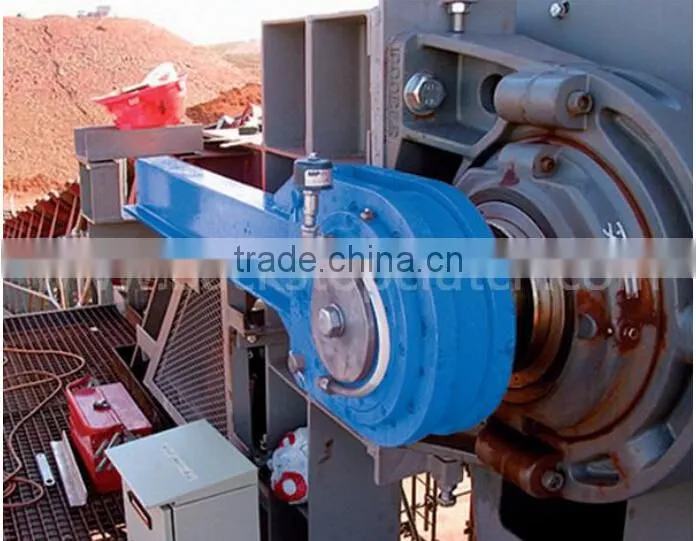

Backstop FRHD 900 on the head pulley shaft of an inclined conveyor belt system. The torque arm is bolted to the freewheel. The back driving torque is restrained by the torque arm on the base plate.
|

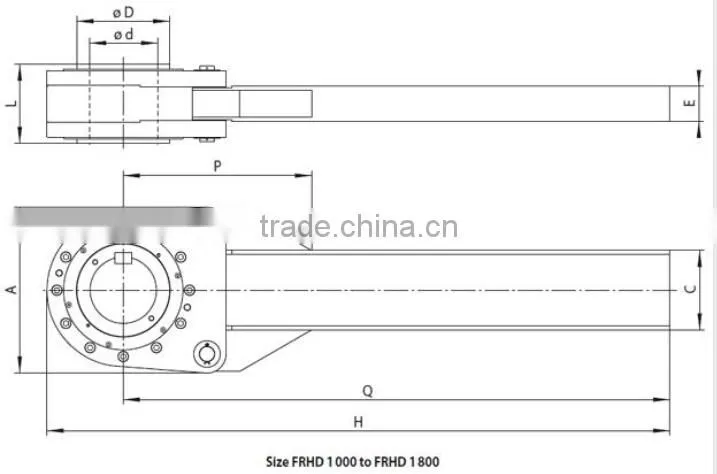

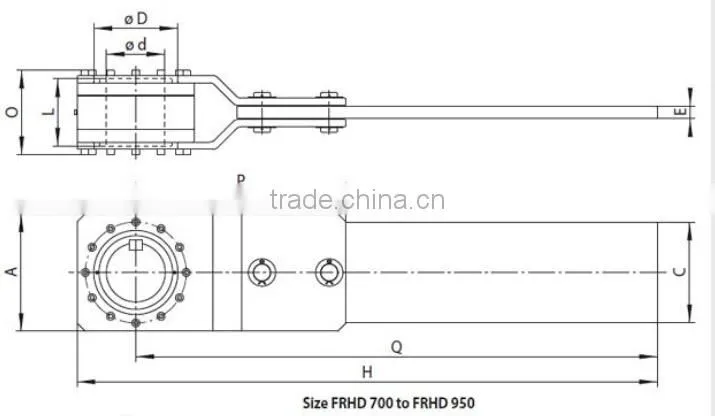

Freewheel Size |
Maximum torque MM lb-ft |
Nominal torque MN lb-ft |
Maximum speed inner ring freewheels rpm |
Bore d max. inch |
A inch |
C inch |
D inch |
E inch |
H inch |
L inch |
O inch |
P inch |
Q inch |
Weight lbs |
| FRHD 700 | 7500 | 3750 | 620 | 3.44 | 8 | 6 | 5.25 | 0.5 | 36 | 6 | 6.75 | 16.38 | 32 | 135 |
| FRHD 775 | 15000 | 7500 | 540 | 3.75 | 9.75 | 8 | 6 | 1 | 42.88 | 7.5 | 9 | 20.38 | 38 | 310 |
| FRHD 800 | 24000 | 12000 | 460 | 4.5 | 10.5 | 10 | 7 | 1 | 43.25 | 8 | 9.5 | 22.13 | 38 | 360 |
| FRHD 900 | 37000 | 18500 | 400 | 5.44 | 12 | 10 | 8 | 1.5 | 54 | 7.63 | 9.38 | 22.75 | 48 | 480 |
| FRHD 950 | 46000 | 23000 | 360 | 7 | 14 | 12 | 10 | 1.5 | 69 | 8 | 10 | 25 | 62 | 530 |
| FRHD 1000 | 56000 | 28000 | 360 | 7 | 17 | 8 | 9 | 4.13 | 80.38 | 8.75 | - | 23.13 | 72 | 550 |
| FRHD 1100 | 90000 | 45000 | 360 | 7 | 17 | 8 | 9 | 4.13 | 80.38 | 10 | - | 23.13 | 72 | 795 |
| FRHD 1200 | 185000 | 92500 | 250 | 9 | 23 | 10 | 12 | 4.94 | 89 | 11 | - | 28 | 78 | 1300 |
| FRHD 1300 | 220000 | 110000 | 220 | 10 | 25 | 12 | 14 | 5.25 | 95 | 12 | - | 30 | 82.88 | 1674 |
| FRHD 1400 | 280000 | 140000 | 200 | 12 | 30 | 18 | 16 | 6.25 | 107 | 13 | - | 36 | 94 | 2200 |
| FRHD 1450 | 380000 | 190000 | 200 | 112 | 30 | 18 | 16 | 6.25 | 107 | 15 | - | 36 | 94 | 2500 |
| FRHD 1500 | 580000 | 290000 | 200 | 12 | 31 | 18 | 15.13 | 6.25 | 107 | 17.62 | - | 36 | 94 | 2440 |
| FRHD 1600 | 746000 | 373000 | 140 | 14 | 32.5 | 20 | 17.63 | 6.25 | 124 | 19.25 | - | 30.44 | 108 | 3400 |
| FRHD 1700 | 1250000 | 625000 | 120 | 18 | 42.5 | 24.5 | 23 | 7.88 | 140 | 20 | - | 48 | 120 | 7000 |
| FRHD 1800 | 1800000 | 900000 | 100 | 21 | 52 | 30 | 26.5 | 10.5 | 170 | 23 | - | 54 | 144 | 12000 |
