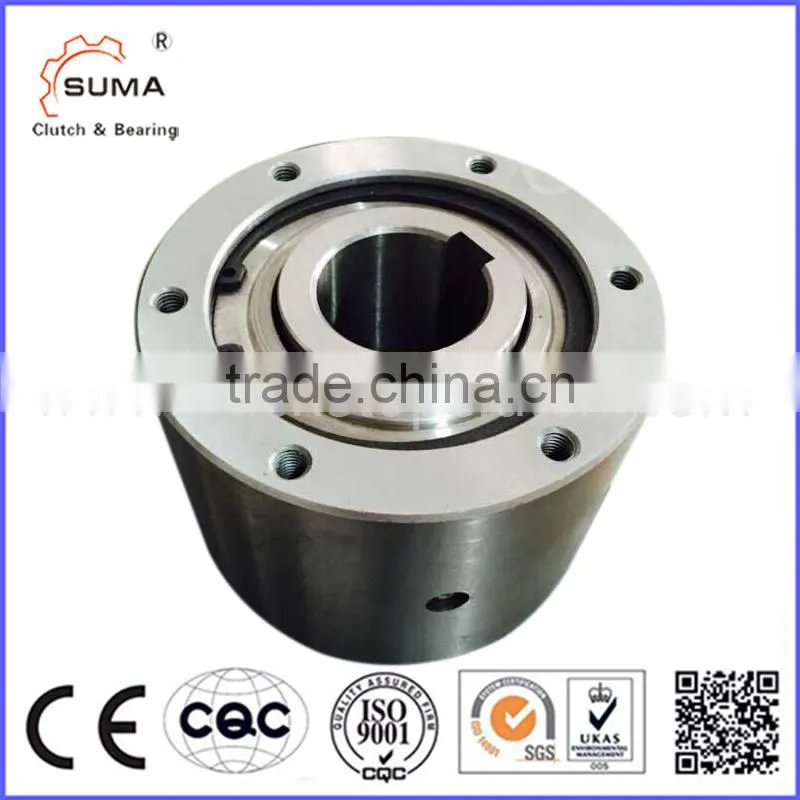

| Hpi 750 one way clutch carbon bearing use on Indexing Devices | ||
| Details | ||
| Model | HPI750 | |
| Material | GCr15 | |
| Type | sprag | |
| Inner Diameter | 57-87mm | |
| Outer Diameter | 222.25mm | |
| Weight | 38kg | |
| Torque | 9660Nm | |
| Drag Torque | 5.08Ncm | |
| Width | 154.2cm | |
| Lubricant | oil | |
| Application | printing machine,textile machine,reducer,other industry machine |
|

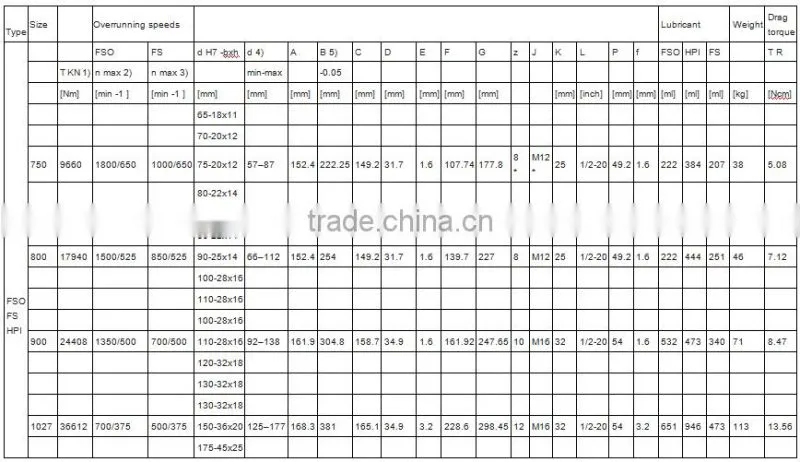

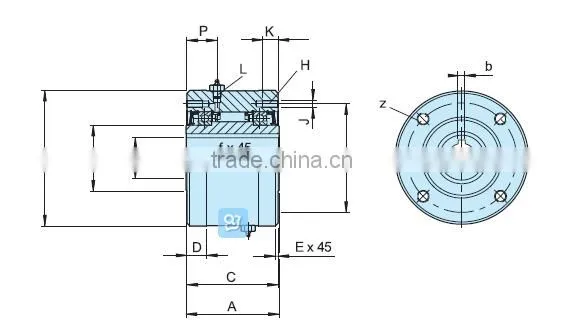

Specifications
1.Types FSO, FSO-GR, and HPI 300 to 700 are sprag type freewheels self-contained, sealed and bearing supported, using two ball bearings.
2.Units are delivered oil or grease lubricated according to the type. It is design with a full sprag complement that gives a very high torque for a given diameter. Any overload is resisted by a sprag to sprag abutment, avoiding a sprag tilt over.
3.Types FSO and HPI are oil lubricated and use standard shaft lip seals. Type FSO-GR is grease lubricated and can be equipped with contact free labyrinth seals.
4.Type HPI is specially designed for high speed indexing applications.
1) Tmax = 2 × TKN
2) Inner race/outer raceg
3) Inner race/outer race labyrinth seal
4) Inch bore available on request
5) Only for oversize bore
Size 600 > 50 mm
Size 700 > 75 mm
*) 6 holes equally spaced
| Changzhou Suma Precsion Machinery Co.,Ltd |
Changzhou Suma Precision Machinery Co., Ltd is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and needle roller bearing with high technology
