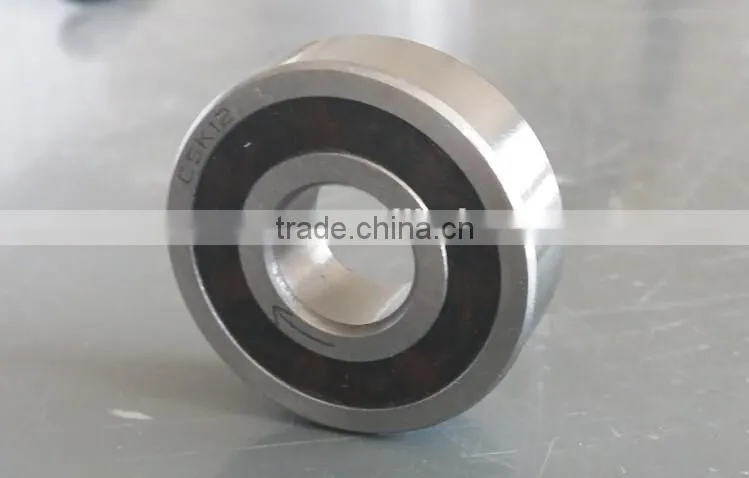

CSK12PP Bearing Wholesale Ball Bearing One Way With Two Keyway

CSK12PP Bearing Wholesale Ball Bearing One Way With Two Keyway thumbnail-1
CSK12PP Bearing Wholesale Ball Bearing One Way With Two Keyway thumbnail-2
CSK12PP Bearing Wholesale Ball Bearing One Way With Two Keyway thumbnail-3

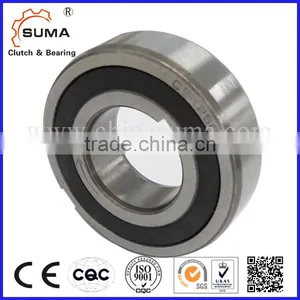

CSK12PP Bearing Wholesale Ball Bearing One Way With Two Keyway thumbnail-4
CSK12PP Bearing Wholesale Ball Bearing One Way With Two Keyway thumbnail-5
CSK12PP Bearing Wholesale Ball Bearing One Way With Two Keyway thumbnail-6
CSK12PP Bearing Wholesale Ball Bearing One Way With Two Keyway photo-1
CSK12PP Bearing Wholesale Ball Bearing One Way With Two Keyway photo-2

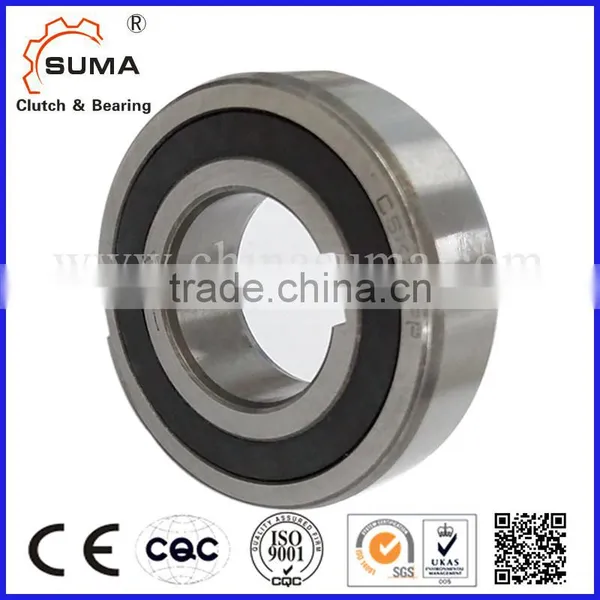

CSK12PP Bearing Wholesale Ball Bearing One Way With Two Keyway photo-3

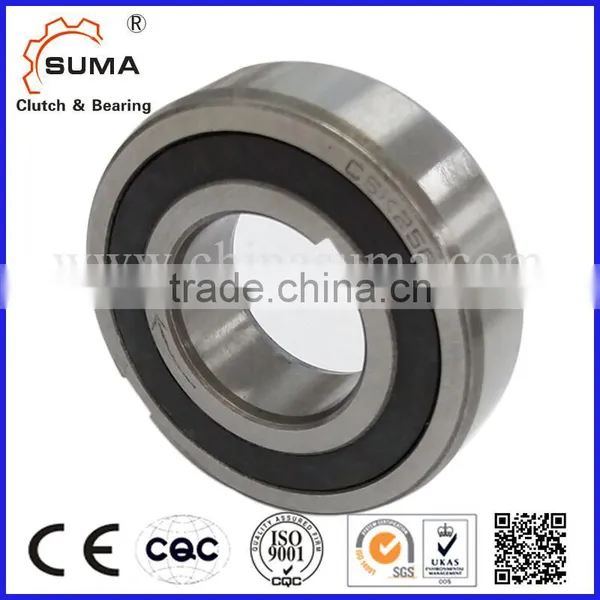

CSK12PP Bearing Wholesale Ball Bearing One Way With Two Keyway photo-4
CSK12PP Bearing Wholesale Ball Bearing One Way With Two Keyway photo-5

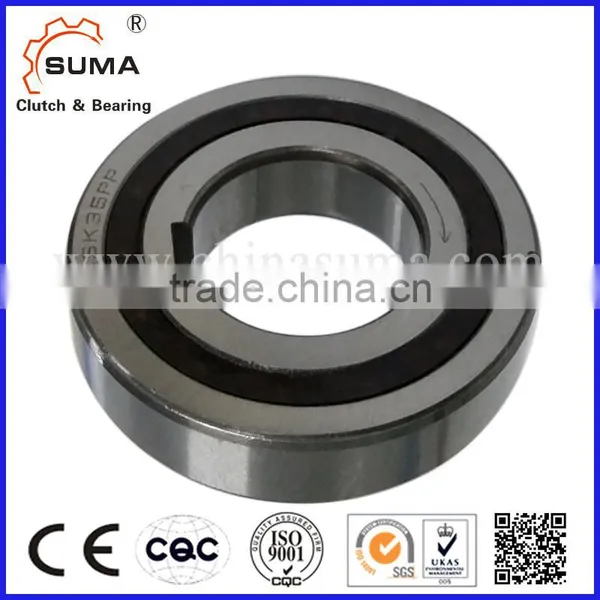

CSK12PP Bearing Wholesale Ball Bearing One Way With Two Keyway photo-6
US$ 1.8 - 2.6 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SUMA or OEM
Bore Size:
8, 20
Outside Diameter:
32, 80
Contact Supplier Request Quote Chat Now
Changzhou Suma Precision Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai ; Ningbo for bearing one way
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SUMA or OEM
Bore Size 8, 20
Outside Diameter 32, 80
Model Number CSK 12PP
Precision Rating P0
Seals Type 2RS
Place of Origin Jiangsu, China



CSK12PP Bearing Wholesale Ball Bearing One Way With Two Keyway

Product Description

CSK series are sprag type one way freewheel bearings.

CSK P has one keyway in the inner side.

CSKPP has two keyways on both inner and outer side.

CSK P 2RS , has one keyway and seals to protect from water resistance.

CSKPP 2RS, has two keyways on both inner and ouer race, and lip seals to be water and dust resistance.



Product name

One way bearing

Model

CSK12PP

Material

GCr15

Inner diameter

12mm

Outer diameter

32mm

Thickness

10mm

Torque capacity

9.3Nm

Weight

0.7kg

Structure

Sprag type

Payment terms

TT. L/C, D/A,D/P,Western Union

Delivery time

2-4 days for the sample, 7 days for big order

 Catalogue of csk bearing one way for your choice



Tips: All the CSK versions are equippede with " formchromed" sprags. This process increases several times the overrunning life time.

CSK12PP Bearing Wholesale Ball Bearing One Way With Two Keyway



Type Size Bearing series   Bearing loads Weight Drag torque
dynamic static
CSK..P d   TKN1) nmax D L b t C C0 TR
[mm]   [Nm] [min-1] [mm] [mm] [mm] [mm] [kN] [kN] [kg] [Ncm]
12 6201 9.3 10000 32 10     6.1 2.77 0.04 0.7
15 6202 17 8400 35 11     7.4 3.42 0.06 0.9
17 6203 30 7350 40 12     7.9 3.8 0.07 1.1
20 6204 50 6000 47 14     9.4 4.46 0.11 1.3
25 6205 85 5200 52 15     10.7 5.46 0.14 2
30 6206 138 4200 62 16     11.7 6.45 0.21 4.4
35 6207 175 3600 72 17     12.6 7.28 0.3 5.8
40 – 325 3000 80 22     15.54 12.25 0.5 7
CSK..PP 15 6202 17 8400 35 11 2 0.6 7.4 3.42 0.06 0.9
17 6203 30 7350 40 12 2 1 7.9 3.8 0.07 1.1
20 6204 50 6000 47 14 3 1.5 9.4 4.46 0.11 1.3
25 6205 85 5200 52 15 6 2 10.7 5.46 0.14 2
30 6206 138 4200 62 16 6 2 11.7 6.45 0.21 4.4
35 6207 175 3600 72 17 8 2.5 12.6 7.28 0.3 5.8
40 – 325 3000 80 22 10 3 15.54 12.25 0.5 7
45 _ 218 1600 85 19 12 2.5 18.36 15.35 0.44 9.3
50 _ 230 1500 90 20 12 2.5 19.53 17.68 0.49
CSK..P-2RS 12 – 9.3 10000 32 14     6.1 2.77 0.05 3
15 – 17 8400 35 16     7.4 3.42 0.07 4
17 – 30 7350 40 17     7.9 3.8 0.09 5.6
20 – 50 6000 47 19     9.4 4.46 0.145 6
25 – 85 5200 52 20     10.7 5.46 0.175 6
30 – 138 4200 62 21     11.7 6.45 0.27 7.5
35 – 175 3600 72 22     12.6 7.28 0.4 8.2
40 – 325 3000 80 27     15.54 12.25 0.6 10

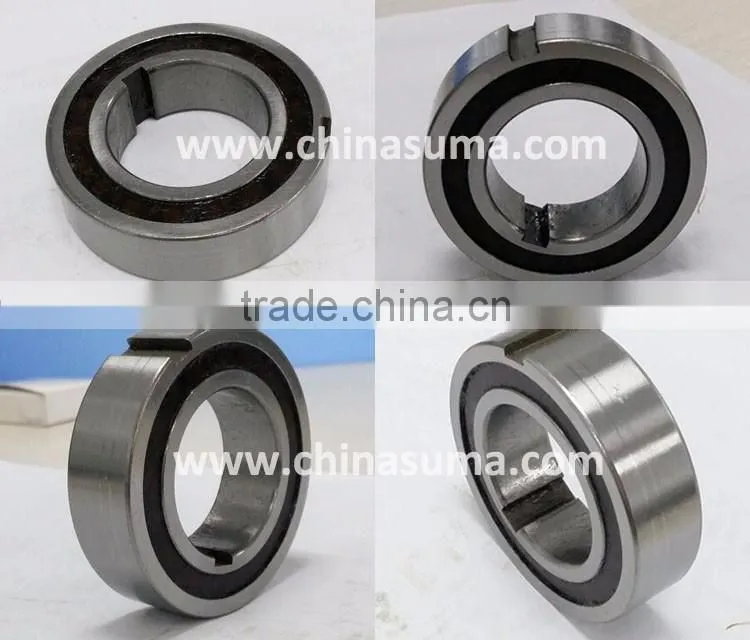

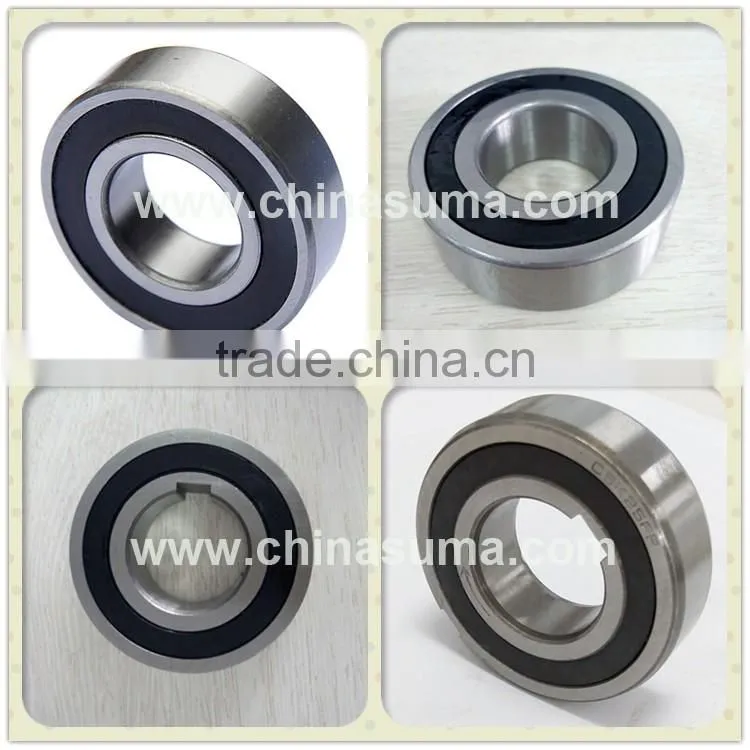

Detailed Images

 CSK12PP Bearing Wholesale Ball Bearing One Way With Two Keyway

CSK12PP Bearing Wholesale Ball Bearing One Way With Two KeywayCSK12PP Bearing Wholesale Ball Bearing One Way With Two KeywayCSK12PP Bearing Wholesale Ball Bearing One Way With Two KeywayCSK12PP Bearing Wholesale Ball Bearing One Way With Two Keyway

CSK12PP Bearing Wholesale Ball Bearing One Way With Two Keyway

Application

CSK12PP Bearing Wholesale Ball Bearing One Way With Two Keyway



Production flow

CSK12PP Bearing Wholesale Ball Bearing One Way With Two Keyway

Company Information



Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.

 CSK12PP Bearing Wholesale Ball Bearing One Way With Two Keyway

We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.

Clients Visit

CSK12PP Bearing Wholesale Ball Bearing One Way With Two Keyway

After-Sales Service

Pre-sale service:

We will delivery the goods in 3 days after your order is confirmed.

After sale service:

Our factory provide technical assistance to support every doubt during usage and maintenance.

FAQ

Q: How do you pack the bearing one way ?

A: Usually csk bearing one way are packed in the wooden box. It can be done as your specfic demands.

Q: Can i get the samples of csk bearing one way from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the csk bearing one way in time?

A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.



Any needs, you are warmly welcomed to contact me at any time !
